In modern CNC machining, achieving stable accuracy and consistent surface quality requires more than advanced machines and cutting tools. The tool holder, as the direct interface between spindle and cutting tool, plays a decisive role in how cutting forces are transmitted, controlled, and absorbed. Among high-precision tool holding solutions, the Shrink Fit Tool Holder has become a benchmark for rigidity, concentricity, and high-speed performance.
This article provides an engineering-focused introduction to shrink fit tool holders, explaining their working principle, mechanical behavior, application scenarios, and selection logic in real production environments.

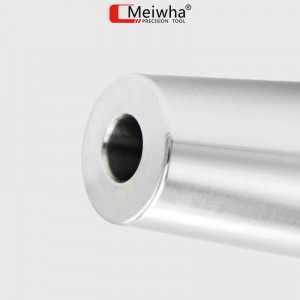

Meiwha CNC Tool Holder
I. What Is a Shrink Fit Tool Holder?

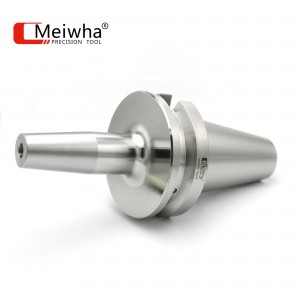

Meiwha CNC Tool Holder
A Shrink Fit Tool Holder is a precision clamping system that uses thermal expansion and contraction to secure the cutting tool. Instead of mechanical clamping elements such as collets or screws, the holder relies on the material’s controlled thermal behavior to achieve uniform clamping around the tool shank.
During tool assembly, the holder nose is heated using an induction-based shrink fit machine. This heating causes the bore diameter to expand slightly, allowing the cutting tool to be inserted. As the holder cools, the bore contracts and clamps the tool with full 360-degree contact.
The result is a rigid, monolithic connection between the tool and the holder.
II. Engineering Principle and Mechanical Behavior
From an engineering perspective, the key advantage of a shrink fit tool holder lies in its structural simplicity. With no intermediate clamping components, the cutting tool is directly supported by the holder body, creating a highly rigid system with minimal deformation under load.
This design leads to extremely low radial runout, typically within a few microns, which ensures even load distribution across the cutting edges. At high spindle speeds, the balanced geometry and compact nose design further contribute to stable rotation and reduced vibration.
Because the clamping force is uniform along the entire shank, stress concentrations are minimized, which helps extend tool life and maintain consistent cutting performance.
III. Performance Advantages in CNC Machining

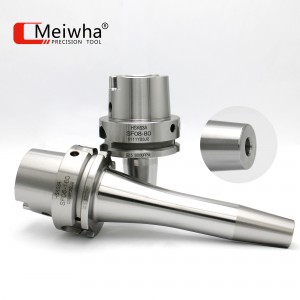

Meiwha CNC Tool Holder
In practical machining conditions, shrink fit tool holders demonstrate several performance advantages that directly impact process quality.
Low runout improves dimensional accuracy and surface finish by ensuring that each cutting edge engages the material evenly. High rigidity reduces tool deflection, which is especially important when machining deep cavities, narrow pockets, or thin-walled features. The slim nose profile provides improved accessibility in confined areas, reducing the risk of collision and enabling more efficient tool paths.
In high-speed machining applications, shrink fit holders maintain stability at elevated spindle speeds, making them well suited for finishing operations and small-diameter tools.
IV. Typical Applications of Shrink Fit Tool Holders
Shrink fit tool holders are commonly used in applications where precision and rigidity are the primary requirements. These include high-speed finishing, mold and die machining, deep cavity milling, and operations involving small-diameter end mills.
They are particularly effective in situations where tool overhang must be minimized and where vibration control is achieved primarily through rigidity rather than damping. In multi-axis machining environments, the compact geometry of shrink fit holders also helps maintain consistent tool orientation and clearance.
V. Practical Considerations in Production Environments
While shrink fit tool holders offer outstanding performance, their use introduces certain practical considerations. Tool changes require a dedicated shrink fit machine, and the heating and cooling process adds time compared to mechanical clamping systems. In production environments with frequent tool changes or high product variation, this factor must be considered in process planning.
Additionally, proper handling procedures are essential to avoid thermal damage or improper assembly. Once these procedures are standardized, however, shrink fit systems can be integrated smoothly into daily production workflows.
VI. Shrink Fit Tool Holders vs Other Clamping Systems
Compared with collet-based systems, shrink fit holders provide significantly higher rigidity and lower runout. When compared with hydraulic tool holders, shrink fit holders typically offer slightly better geometric accuracy and a shorter nose length, while hydraulic holders provide superior vibration damping and faster tool changes.
From an engineering standpoint, shrink fit and hydraulic systems should not be viewed as competitors, but as complementary solutions. Advanced machining operations often deploy both systems, selecting the appropriate holder based on tool diameter, cutting strategy, and surface quality requirements.
VII. Selection Guidelines for Shrink Fit Tool Holders
Choosing a shrink fit tool holder should be based on machining objectives rather than general preference. Applications involving small tools, high spindle speeds, deep access, and fine surface finish requirements are strong candidates for shrink fit systems. For roughing operations or processes with frequent tool changes, other clamping systems may offer better overall efficiency.
Understanding the interaction between cutting tool geometry, spindle capability, and machining strategy is essential when deciding whether a shrink fit tool holder is the optimal solution.
VIII. Shrink Fit Tool Holders as Part of a Complete Tooling System
From a system-level perspective, the performance of a shrink fit tool holder is maximized when it is integrated into a complete machining setup that includes appropriate cutting tools, machine capability, and workholding stability. When these elements are aligned, shrink fit tool holders enable predictable, repeatable, and high-quality machining results.
As manufacturing moves toward higher precision, tighter tolerances, and more complex geometries, shrink fit tool holders continue to play a key role in advanced CNC machining systems.
A Shrink Fit Tool Holder is not simply a clamping device, but a precision interface designed to maximize rigidity, concentricity, and high-speed stability. By eliminating mechanical clamping elements and relying on controlled thermal behavior, shrink fit systems provide a reliable foundation for high-precision machining.
When applied in the right context and supported by proper process planning, shrink fit tool holders contribute directly to improved surface quality, dimensional consistency, and overall machining performance.
