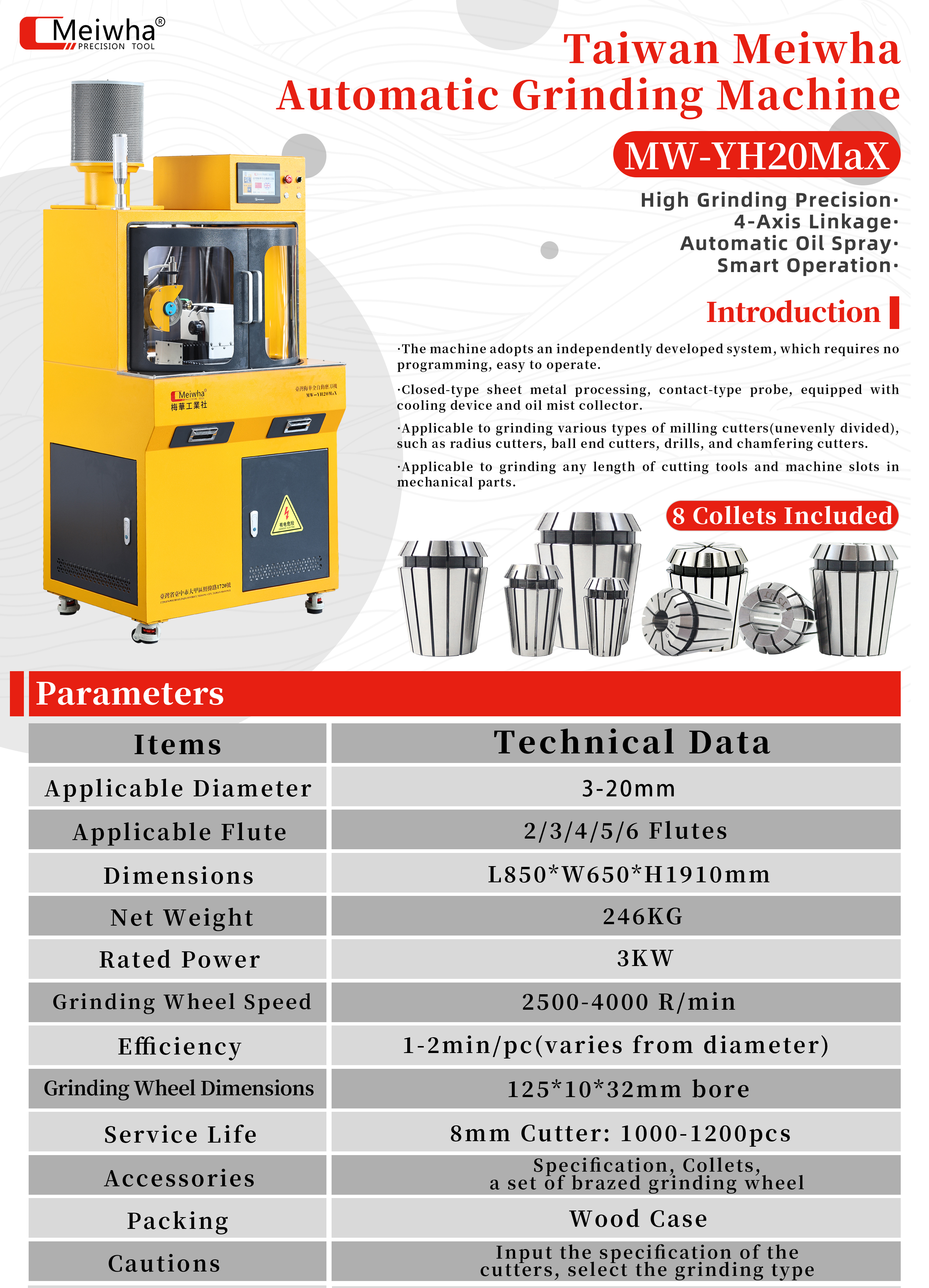

The machine adopts an independently developed system, which requires no programming, easy to operateClosed-type sheet metal processing, contact-type probe, equipped with cooling device and oil mist collectorApplicable to grinding various types of miling cutters(unevenly divided), such as radius cutters, ball endcuttersdrills, and chamfering cutters.
Applicable to grinding any length of cutting tools and machine slots in mechanical part.
Suitable for machining center industry
Suitable for second-hand tool industry
Suitable for external grinding tools
Suitable for machanical processing industny

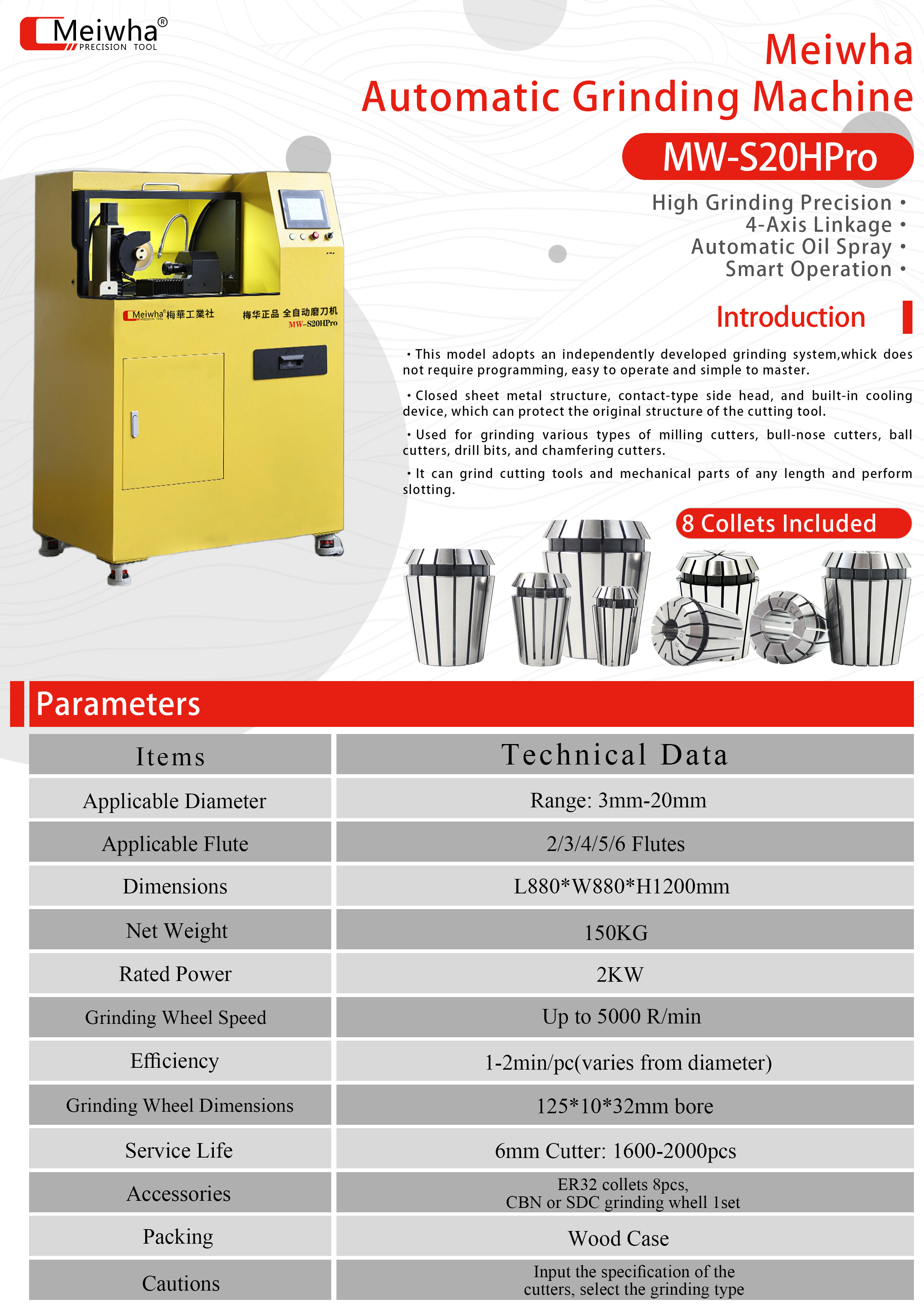

| MW-S20HPro | MW-YH20MaX | |
| Spindle | Hollow Spindle
Can process cutters longer than 160mm. |
Solid Spindle
Can process cutters up to 150mm. |
| Grinding Range | End Mill: 3-20mm(2-6Flutes), the chamfer angle, rear angles can be adjusted. Ball End Cutter: R1.5-R8, the chamfer angle, rear angles, clearance can be adjusted. Drill: 3-20mm)(Internal cooling, Type A, Type X, Non-standard), bore tip 90-180° adjustable. Bull Nose Cutter: 3-20mm, R0.2-R3. Chamfer |
End Mill: 4-20mm
Ball End Cutter: R2-R6 Drill: 3-16mm |
| Tool Setting | Special Tool Setting Device | Right-handed Setting |
