If you run batch machining, you know the routine. One operator stands by the machine, watching the tool changes, watching the program finish, and watching the chip cleaning. The door opens, the air gun comes out, aluminum and steel chips fly everywhere, the door closes, and the program restarts. This happens dozens of times a day.
Most people think this is just a normal part of the process. But it's an overlooked cost. The real expense isn't just those few seconds; it's that the operator has to stand there the whole time, unable to do anything else.

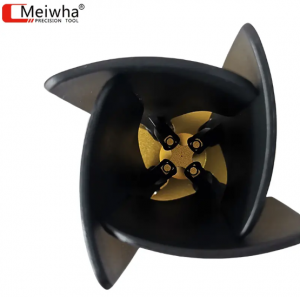

The Meiwha CNC chip cleaner solves exactly this problem.
Cleaning happens during the tool change

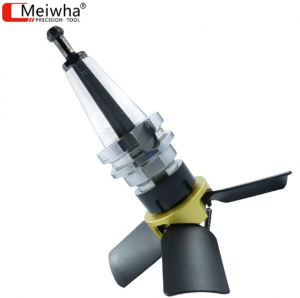

The cleaner mounts on the spindle and is called by the program. During a tool change, the spindle moves into position, spins up, blows the chips away, and the tool change continues. The operator doesn't need to open the door or grab an air gun. The machine handles the cleaning itself.
The chip cleaner should run at a speed between 5,000 and 10,000 rpm, adjusted according to the actual height of the workpiece. Its line height should be set to 10-15 cm in the program. During operation, the line won't touch the workpiece or the worktable. Just run it in forward rotation. These numbers aren't just specs on paper; they ensure the cleaning happens safely during the tool change gap, with no need to shut down and no waiting.

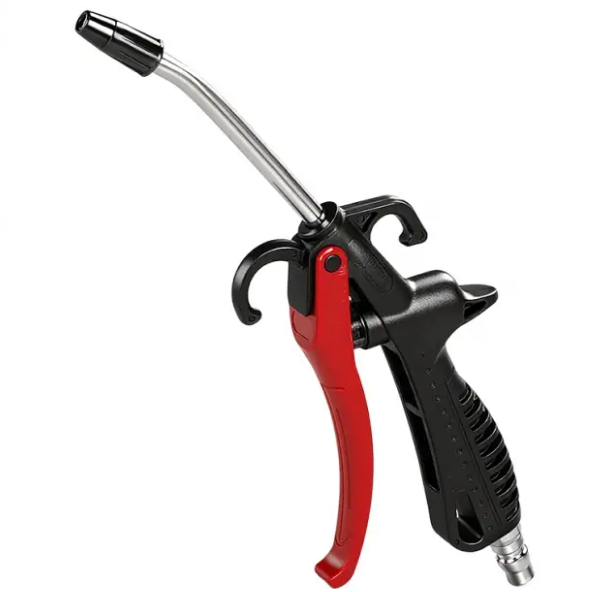

The real issue with air guns
Air guns have a common flaw: they don't get rid of chips, they just move them somewhere else. Chips get blown from the workpieces onto the guide-ways, into the tool holder taper, or into the shop air. You might not notice it at first, but over time, tool holder taper scratches, chips caught on locating surfaces, and guideway wear become expensive problems.
This chip cleaner blows outward from the spindle end. Chips are collected and carried away, not scattered everywhere. The work area stays cleaner. Workers don't have to lean in and hold an air gun, which reduces fatigue. Also, the equipment requires the door to be closed before starting and strictly prohibits opening the door during operation. This keeps the risk of flying chips hurting anyone's eyes safely behind the door.
The real reason to switch from an air gun isn't that it's slow. It's that it doesn't handle chips; it just moves them. You won't see the problem right away, but by the time precision issues show up, it's too late.
Where it fits and how hard it is to set up
The chip cleaner fits machining centers, precision drilling and tapping machines, and similar equipment. It runs on a 500 rpm pneumatic base speed, with a recommended working speed of 5,000 to 10,000 rpm, which most small and medium-sized machines can handle. Just set the safety height in the program and call the cleaner, and it's ready to go. No changes to the air lines or upgrades to the control system are needed. Mount it, set the parameters, and it's ready for your next batch.
Which shops should make the switch
Not everyone needs to buy this. If you do single-piece or small-batch work and your machine isn't very busy, sticking with the air gun is fine. But if you do batch production, if one operator has to stand by the machine and can't leave, or if you've dealt with tool holder scratches from poor chip cleaning, this chip cleaner is worth testing on a batch of work. It's worth putting on your comparison list.
