In modern CNC machining, tool holding is no longer a secondary consideration. The choice of a tool holder directly affects runout accuracy, vibration control, surface finish, tool life, and overall process stability.
Among high-precision tool holding systems, Heat Shrink Tool Holders and Hydraulic Tool Holders are the two most widely used solutions. Each has distinct strengths and is optimized for different machining scenarios.
This article explains the working principles, advantages, limitations, and typical applications of both systems, helping you choose the right solution for your machining needs.
I. Tool Holding as Part of an Integrated Machining System
From an engineering standpoint, tool holding performance cannot be evaluated in isolation. It is inherently connected to cutting tool geometry and diameter, which define how cutting forces are generated and distributed at the cutting edge. Tool overhang and system rigidity further influence how these forces are transmitted through the holder into the spindle, directly affecting vibration behavior and dimensional stability. At the same time, machine spindle speed and available power establish the operational window within which the tool holder must maintain stability, particularly when switching between roughing and finishing strategies. These interdependent factors ultimately determine achievable surface finish and tolerance control, making tool holder selection a critical process decision rather than a simple hardware choice.

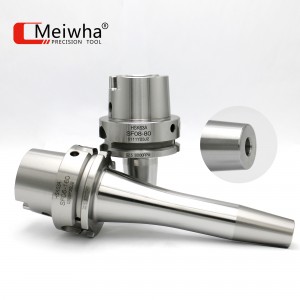

II. Heat Shrink Tool Holder: Engineering Principle and Behavior
A heat shrink tool holder operates on the principle of controlled thermal expansion. By applying localized induction heating to the holder nose, the internal bore expands sufficiently to allow tool insertion. Once the holder cools, the bore contracts and clamps the tool shank uniformly along its entire circumference. The absence of mechanical clamping elements results in a monolithic connection between the tool and the holder.
From a mechanical perspective, this structure produces exceptionally low radial runout and a very short, slim nose profile. The reduced mass and compact geometry improve access in deep cavities and narrow machining zones while minimizing bending moments caused by tool overhang. As a result, heat shrink holders are particularly effective in high-speed and small-diameter tool applications where rigidity and geometric accuracy are the dominant concerns. However, the thermal nature of the clamping process introduces practical considerations related to tool change time and equipment requirements, which must be evaluated in production environments with frequent setup changes.

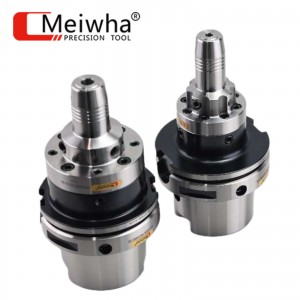

III. Hydraulic Tool Holder: Engineering Principle and Behavior
Hydraulic tool holders achieve clamping through an internal hydraulic chamber that transmits pressure evenly to the bore when actuated by a tightening mechanism. This design creates a controlled and repeatable clamping force while simultaneously introducing a damping effect that absorbs vibration during cutting.
From an engineering standpoint, the defining characteristic of a hydraulic holder is its dynamic stability. While its radial runout is slightly higher than that of a heat shrink holder, it remains well within the precision range required for finishing operations. The internal damping capability significantly reduces chatter and improves surface consistency, especially in applications involving interrupted cuts, variable engagement, or longer tool overhangs. In addition, the mechanical clamping mechanism allows fast and repeatable tool changes, making hydraulic holders highly adaptable to mixed production environments and frequent tool adjustments.

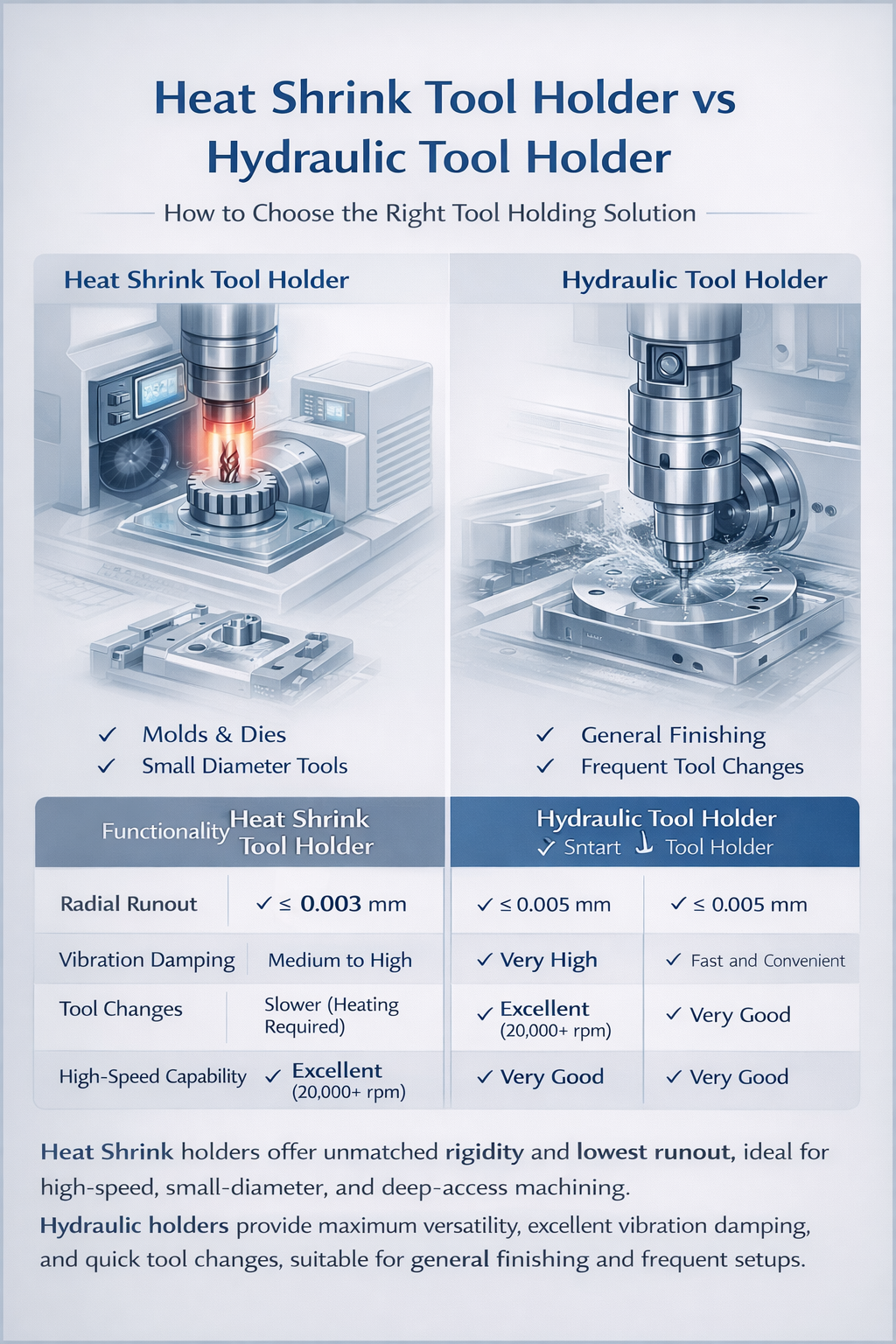

IV. Comparative Performance in Real Machining Conditions
When evaluated under real machining conditions, the differences between heat shrink and hydraulic holders become most apparent through their mechanical behavior rather than their nominal accuracy values. Heat shrink holders provide maximum rigidity and minimal runout, which directly benefits small tools, high spindle speeds, and finishing strategies that demand uniform cutting edge engagement. Hydraulic holders, by contrast, excel in situations where vibration suppression and process stability are more critical than absolute runout minimization, such as precision boring, reaming, and general finishing across a wider range of tool diameters.
Rather than representing a simple hierarchy, these characteristics reflect different optimization priorities within the machining system. The correct choice depends on whether the primary limiting factor is geometric accuracy, vibration control, operational flexibility, or setup efficiency.
V. Application-Oriented Selection Logic
In practice, heat shrink holders are most effective when machining conditions emphasize small cutting diameters, high rotational speeds, deep or narrow access, and finishing passes where tool deflection must be minimized. Hydraulic holders are better suited to processes that require consistent performance across varying operations, including precision hole machining, finishing with moderate tool diameters, and environments where rapid tool changes are essential for productivity.
Advanced machining operations often integrate both systems into a single tooling strategy, assigning each holder type to the applications where its mechanical behavior provides the greatest benefit. This approach reflects an understanding that tool holding performance is not universal but context-dependent.
VI. Tool Holding Strategy for Modern CNC Operations
Rather than standardizing on a single tool holding solution, modern CNC shops increasingly adopt layered tool holding strategies. Heat shrink holders are applied where maximum rigidity and accuracy are required, hydraulic holders are used where damping and versatility provide greater process security, and conventional collet systems support roughing and general-purpose operations. This structured approach allows machining centers to operate closer to their optimal performance envelope without sacrificing reliability or flexibility.
VII. Integrated Tool Holding Solutions from a Manufacturing Perspective
As a factory, we view tool holding not as a standalone product but as part of a complete machining solution. By offering heat shrink tool holders, hydraulic tool holders, and complementary systems alongside cutting tools and workholding solutions, we help customers align tool holding behavior with their specific machining objectives. This system-level perspective enables stable process design, faster optimization, and more predictable production outcomes.
Heat shrink and hydraulic tool holders are both high-precision solutions, but they address different mechanical priorities within the machining system. Heat shrink holders deliver exceptional rigidity and minimal runout for high-speed and small-tool applications, while hydraulic holders provide superior vibration control, operational flexibility, and ease of use across a broader range of processes. Selecting between them is not a matter of preference, but of aligning tool holding behavior with cutting mechanics, machine capability, and production strategy.
If you are optimizing your machining process or evaluating tool holding solutions, contact us. Our engineering team will help you select and configure the most appropriate heat shrink or hydraulic tool holding system based on your actual machining requirements.
