In modern manufacturing, the advancement of tool clamping technology directly determines the processing efficiency and accuracy. As one of the most common tools in the workshop, the cylindrical tool holder has undergone significant innovations - Pull Back Tool Holder, with its unique working principle and remarkable advantages, is becoming the preferred choice for an increasing number of machining engineers.
I. Working Principle of the Pull Back Tool Holder: A simple yet ingenious mechanical design

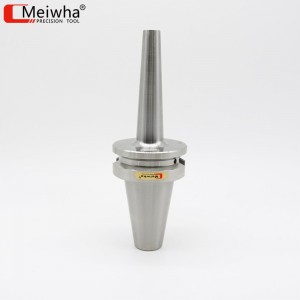

Meiwha Pull Back Tool Holder
Pull Back Tool Holder
The core innovation of the pull back tool holder lies in its internal lever mechanism design. Unlike the traditional locking nut method, this tool holder achieves more efficient force transmission through operation from the rear end.
The work process is divided into three key steps:
Firstly, the operator inserts the cutting tool into the tool handle that has been assembled with the chuck, and manually pre-tightens the locking nut. Then, using an internal hexagonal wrench, insert it from the tail of the tool handle until it is fully engaged with the internal hexagonal hole of the internal lever. Finally, pull it backward and rotate the wrench clockwise. At this point, the internal lever generates a backward pulling force, which is transmitted to the entire chuck assembly through the mechanical thread. Due to the backward pulling force at the rear end of the chuck and the restriction of the fixed internal conical surface of the tool handle body at the front end, the chuck undergoes uniform radial contraction deformation under the action of the two conical surfaces, thereby achieving strong and uniform clamping of the cutting tool. This design ensures the concentration and efficient transmission of the clamping force, avoiding the dispersion and loss of force in the traditional method.
II. The Outstanding Advantages of the pull back tool holder: Why It Can Enhance Workshop Efficiency

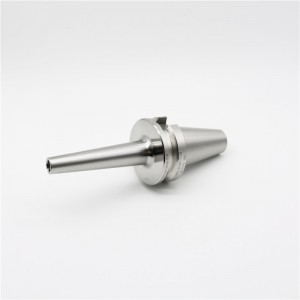

Meiwha Tools
The advantages of the pull back tool holder stem from its unique working principle, and these advantages form a clear causal chain:
1.Extremely high operational efficiency: Due to the design of operating from the tail using a single hex socket wrench, the clamping time has been significantly shortened. The traditional method required finding and using two wrenches for the tightening operation, but now it can be completed with just a simple backward pull and rotation. This directly reduces the tool change time and improves the utilization rate of the machine tool, especially in multi-variety and small-batch production, where the effect is particularly significant.
2. Outstanding clamping rigidity: The internal pull-rod mechanism can generate a greater preload force than the traditional manual tightening. The stronger clamping force means higher connection rigidity, which significantly improves the stability of the tool during the processing. As a result, the vibration during processing is significantly reduced, the surface quality of the workpiece is improved, and it allows the use of more aggressive cutting parameters.
3. Excellent safety performance: When using traditional wrenches, there is a high risk of slipping, which can cause injuries to personnel. The rear-pull design shifts the operation position to the tail of the handle, away from the rotating area, significantly reducing the operational risks. This improvement in safety not only protects the operators but also reduces the damage to the tools caused by operational errors.
4. Better consistency and repeatability accuracy: The mechanical rear pull mechanism provides a more consistent preload control than manual operation, which means that each tool change can achieve similar clamping force, thereby ensuring the consistency of processing accuracy. For mass production, this consistency directly translates into the stability and predictability of product quality.
III. Application Scenarios of the pull back tool holder
The characteristics of the pull back tool holder enable it to achieve its maximum value in specific processing scenarios:
The application environment for frequent tool changes: In multi-process machining where frequent tool changes are required, the speed advantage of the rear-retracting design for tool changing is fully realized. The mold manufacturing, prototype production, and small-batch production workshops can best appreciate the efficiency improvement brought by this tool handle.
Medium-load milling and drilling operations: With its excellent clamping rigidity, this handle is highly suitable for processing tasks with moderate cutting forces. Whether it is cavity milling, face milling or drilling and tapping, it can provide reliable performance.
Processing scenarios with limited space: Since it only requires a single-direction operation from the rear, the rear-pull design has particular advantages when the machine tool space is limited. The operator does not need to search for the space to operate the wrench around the tool.
Educational and Training Environment: In schools and training centers, safety is the top priority. The rear-mounted handle design of this knife handle enhances operational safety, making it an ideal choice for educational and training environments, effectively reducing the operational risks for trainees.
IV. Maintenance Method of Pull Back Tool Holder
Daily cleaning and maintenance: After each use, the exterior and conical surface of the handle should be cleaned to ensure that there are no chips or dirt remaining. Special attention should be paid to keeping the tail pull rod hole clean to prevent foreign objects from entering and affecting the movement of the internal mechanism.
Regular lubrication: The internal pull rod threads need to be regularly coated with an appropriate amount of special thread lubricant. This not only ensures smooth operation but also prevents thread wear and extends the service life. It is recommended to perform lubrication maintenance every 200 hours of use.
Part inspection and replacement: Regularly check the wear condition of the pull rod threads. If any deformation or damage to the threads is found, they should be replaced immediately. At the same time, check whether the inner conical surface of the locking nut is worn. Ensure that it can properly clamp the clamp cylinder.
Proper storage: The handle of the knife should be stored on a dry and clean Tool holder, avoiding collisions with other tools. When not in use for a long time, the surface should be treated for rust prevention.
During operation, a properly sized hex socket wrench should be used. Avoid using worn-out or non-compliant tools to prevent damage to the internal pull rod mechanism. When applying torque, do so smoothly and evenly to avoid sudden impact loads.
Summarize
Although each type of tool holder technology has its own optimal application scenarios, the Pull Back Tool Holder undoubtedly sets new standards in terms of versatility and ease of use. For machining workshops that prioritize production efficiency and operational safety, investing in this innovative tool system will undoubtedly yield significant returns.
