During CNC finishing operations, our workpieces place very high demands on machining accuracy and surface quality. Without a suitable and reliable tool holder, it is difficult to achieve optimal results, particularly in fields such as mould manufacturing, aerospace components, and high-precision part machining. In these applications, shrink fit tool holders have gradually become the “main choice” and are widely regarded as the preferred solution for finishing and high-end machining. Among them, Meiwha Shrink Fit Tool Holders have received consistent positive feedback from the market.
This article introduces the Meiwha shrink fit tool holder.
What Is a Shrink Fit Tool Holder?

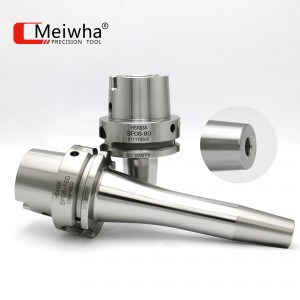

A shrink fit tool holder is a high-precision tool holder that achieves clamping based on the principle of metal thermal expansion and contraction. During tool installation, a dedicated shrink fit machine is used to heat the tool holder, causing the bore to expand slightly. The cutting tool is then inserted, and as the holder cools, it contracts, generating a uniform 360° clamping force around the tool.
Compared with conventional tool holders, shrink fit tool holders do not rely on screws or collets during clamping. Instead, they achieve stable tool retention through the physical properties of the material itself, minimising uncontrollable variables. This is a key reason why shrink fit tool holders have become the preferred choice for high-precision finishing applications.
Application Scenarios of Shrink Fit Tool Holders
They are commonly used in: mould cavity and core finishing (with clear advantages in clearance and accessibility), small-diameter end mill machining, high-speed cutting, complex five-axis machining, and applications with high requirements for surface quality and dimensional consistency.
Core Advantages of Shrink Fit Tool Holders
High concentricity and repeatability:
Because shrink fit tool holders have no mechanical clearance, radial runout is typically very well controlled, providing excellent repeat positioning accuracy. This characteristic is particularly important for finishing operations, small-diameter tool machining, and workpieces with high surface accuracy requirements.

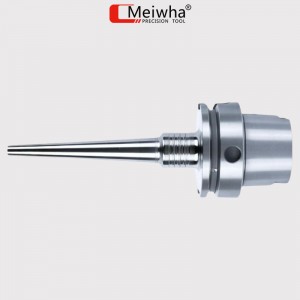

Compact design and excellent clearance:
Shrink fit tool holders feature a simple structure and a slim profile, offering clear advantages in deep cavities, narrow slots, and complex geometries. Especially in five-axis machining, they effectively reduce the risk of interference and significantly improve machining accessibility and freedom.
Usage Considerations
Although shrink fit tool holders offer clear advantages in terms of precision and rigidity, their operating requirements must also be considered. Shrink fit tool holders require a dedicated shrink fit machine for tool clamping and removal, and the process is relatively fixed, making them less suitable for environments with frequent, temporary tool changes. In addition, each shrink fit tool holder corresponds to a specific tool diameter, meaning their versatility is lower than that of other tool holder types. For medium-duty cutting conditions involving large depths of cut and high torque, shrink fit tool holders are not the optimal choice.
With ongoing technological development, our shrink fit tool holders have become indispensable tools in the field of precision finishing. Their excellent concentricity and clamping rigidity provide reliable assurance for the manufacture of high-quality components.
As a manufacturing factory, we consistently develop tool holding solutions based on real machining requirements, helping our customers improve machining quality while achieving long-term, stable efficiency gains in production.
