In modern CNC machining, the precision, rigidity and clearance capability of the toolholding system directly affect machining quality, surface finish and production stability. This is especially true in deep cavity machining, mould machining, narrow slot machining and complex contour finishing. A standard toolholder system may limit machining performance because of insufficient reach, an overly large front-end profile or excessive runout. For this reason, the heat shrink extension rod is appearing more and more frequently as a tooling system component in high-precision machining applications.
When many people first see a heat shrink extension rod, they simply understand it as an extension bar. Although it appears to be a simple small tool, from an engineering application point of view its value is far greater than that. What really matters is that, while extending the tool projection length, it is still able to maintain extremely high clamping accuracy and system stability. Particularly in high-precision machining, our Meiwha Extremely small radial runout ＜0.003mm means not only lower runout, but also better surface finish, more stable tool life and greater machining consistency.
This article focuses on the heat shrink extension rod as its core tool, and systematically explains its working principle, application advantages, usage scenarios and key selection points, so as to help companies gain a more complete understanding of the practical value of this high-precision shrink-fit extension rod in modern CNC machining.

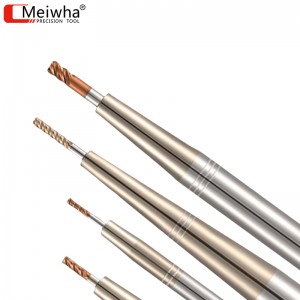

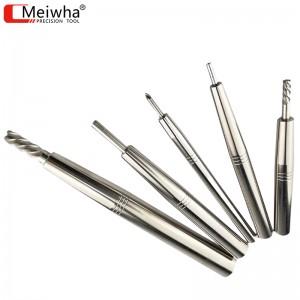

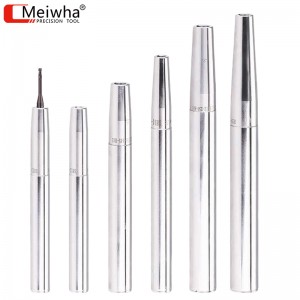

Working principle of Heat Shrink Extension Rod
The working principle of the Heat Shrink Extension Rod is in fact the same as that of a Shrink Fit Tool Holder, with the core concept being clamping achieved through thermal expansion and contraction. The diameter of the front clamping bore is usually slightly smaller than the standard shank diameter of the cutting tool. During tool assembly, the operator uses a shrink fit machine to heat the front clamping zone, causing slight thermal expansion at the front end; the tool is inserted while the bore is expanded; then, during the cooling process, the clamping bore returns to its original size and forms a high-precision, high-rigidity interference fit on the tool.
The key to this structure lies in two points. First, the clamping force comes from the uniform contraction of the extension rod material itself, rather than relying on a collet, nut or side locking.
Main advantages of Heat Shrink Extension Rod
1. Longer reach with better clearance: This is the most direct advantage of the heat shrink extension rod. In the machining of deep cavities, narrow slots, high wall features and other complex surfaces, the front end of a conventional holder is often too bulky to enter the machining area smoothly. A shrink-fit extension rod usually has a slimmer and longer profile, which is more beneficial in avoiding interference from surrounding features during machining.
2. Suitable for high-speed machining: If the extension rod body is manufactured with high precision and its balance is well controlled, then the heat shrink extension rod is highly suitable for high-speed machining. This gives it very clear advantages in mould finishing, high-speed aluminium machining and complex contour finishing.
3. Beneficial to tool life and workpiece surface finish: High-precision clamping not only improves machining performance, but also reduces the risk of uneven tool wear and vibration. This advantage is especially clear for high-value cutting tools.
Suitable machining scenarios for Heat Shrink Extension Rod
In practical application, the heat shrink extension rod is suitable for the following scenarios: deep cavity machining, mould cavity machining, high wall part machining, narrow slots and confined-area machining, complex contour machining and high-clearance machining, precision machining with small-diameter cutters, five-axis finishing, aluminium alloy surface-finish machining, and finishing of mould steel and stainless steel. For many companies, whenever a part requires the tool to reach further in without a noticeable loss of precision, the heat shrink extension rod offers considerable application value.
Heat Shrink Extension Rod is a highly valuable type of extension toolholder in modern high-precision CNC machining. Its core value lies not only in extending the length of the tool system, but also in maintaining high precision, high stability and excellent surface machining capability in deep machining and complex clearance applications through its shrink-fit clamping structure.
For deep cavity machining, narrow-area machining, small-diameter cutter finishing and parts requiring a high surface finish, as long as the length is selected properly, the tool is fitted correctly and machine conditions are suitable, the Heat Shrink Extension Rod can usually become a key solution for improving machining quality and stability. In particular, Extremely small radial runout ＜0.003mm gives it even greater practical value in precision contour machining and high-requirement surface finishing.
If a company is evaluating a high-precision tool extension solution, or hopes to improve surface finish, reduce runout and increase tool system stability in CNC deep cavity machining, then understanding and selecting the right Heat Shrink Extension Rod for the specific part is often more meaningful than simply comparing prices.
