In today's pursuit of efficient and precise processing, the heat shrink tool holder machine has become an indispensable key equipment in modern mechanical processing. The heat shrink tool holder machine achieves high-precision and high-strength clamping of the tool and the tool holder through the principle of thermal barrier and cold contraction, providing reliable guarantee for high-speed cutting and precise processing.
This article will guide you to deeply understand the tool mounting case of the heat shrink tool holder machine, the issues that need to be noted during the operation of the heat shrink tool holder machine, as well as the applicable types of tool holders. We hope this will help you significantly improve your processing efficiency.
I.Practical application case of heat shrink tool holder machine
The heat shrink tool holder machine is increasingly being used in the field of mechanical processing. Its high efficiency and precision features are particularly prominent in practical operations.
In a typical heat shrink tool holder machine, the installation of the cutting tool is a critical step. The operator needs to attach the end mill to the heat shrink tool holder. They first place the tool holder in the heating ring of the heat shrink tool holder machine and activate the pneumatic equipment to heat it. Once the diameter of the heating hole in the tool holder expands, the operator quickly inserts the end mill into the tool holder and then proceeds with the cooling process.
During the cooling process, the handle of the tool shrinks, thereby firmly and precisely clamping the end mill. This clamping method is not only relatively simple to operate, but also ensures the accuracy of the tool's vibration. It is highly suitable for high-speed cutting and precision processing scenarios.
II. Precautions for Changing Blades on the Heat Shrink Tool Holder Machine
To ensure operational safety, extend the service life of the equipment and achieve the best clamping effect, the following points need to be noted when using the heat shrink tool holder machine:
1. Safety precautions: When operating the heat shrink tool holder machine, safety must be given top priority. Operators should wear appropriate personal protective equipment, such as heat-resistant gloves, goggles and protective clothing, to prevent accidental injuries like burns. The working area of the equipment should be kept clean and tidy, free from obstructions and flammable materials, and ensure good ventilation. It is strictly prohibited to touch the heat shrink chamber and the knife barrel while the equipment is running.
2. Inspection and Maintenance of Heat Shrink Tool Holder Machine: Before starting the operation, it is essential to conduct a thorough inspection of the heat shrink tool holder machine. This includes verifying that the power supply is normal and connected to the ground wire, checking whether the temperature controller and timer are functioning properly, and confirming that the heat shrink temperature and other parameters meet the requirements. Regularly perform maintenance and repairs on the equipment, inspect the lubrication points and conduct regular oiling maintenance to ensure that all parts of the equipment are in good condition and that the fixing screws of the parts are not shifted or loose.
3. Temperature and Time Control: Precise temperature and time control are crucial for successful thermal shrinkage clamping. Before operation, the appropriate heating temperature and time should be set according to the specifications of the cutting tool and handle. For instance, the heating temperature is usually between 300 and 400 degrees Celsius, while the heating time needs to be adjusted based on the specific equipment and requirements. Avoid overheating, which may cause the material of the handle to anneal and affect its clamping force and service life.
4. Matching of handle and tool: Before clamping, it is necessary to ensure that the clamping hole diameter of the handle matches the diameter of the tool shank. Heat-shrinkable handles are usually suitable for all carbide tools with a tolerance of h6 for the shank diameter. Before use, verify whether the tool is clean and tidy to avoid affecting the clamping accuracy and strength.
5. Cooling operation: After heating the tool, a cooling process must be carried out. The tool can be removed only after the temperature in the heat shrink chamber drops to a safe range. It is strictly prohibited to use water or other liquids to rapidly cool the tool during the cooling process, as this may cause changes in the internal structure of the tool handle or result in cracks. Natural cooling or the use of a dedicated cooling device is a better option.
III. The applicable shank types for the Meiwha heat shrink tool holder machine
The heat shrink tool holder machine is usually specifically designed for installing heat shrink tool holders. These tool holders are specially engineered to withstand temperature changes during heating and cooling processes, and provide extremely high clamping force and accuracy after cooling.

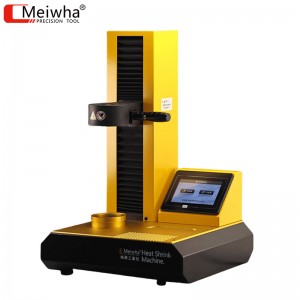

The Meiwha heat shrink tool holder machine is a universal type, suitable for most processing scenarios. It can heat and attach the heat shrink tool holders to different spindle types.
IV. Summary
Choosing the appropriate heat shrink tool holder and operating the machine correctly can significantly improve processing quality and efficiency. It is recommended that users strictly follow the operating procedures and receive regular training to ensure safety and fully utilize the equipment's performance.
Post time: Sep-01-2025
