In the vast world of machining, although the High Precision Chuck of the lathe may not be as eye-catching as the spindle or the tool turret, it is the crucial bridge that connects the machine tool with the workpiece and ensures the accuracy and efficiency of the processing. Whether it is an ordinary lathe or a modern CNC center, the selection, use, and maintenance of the High Precision Chuck directly affect the processing quality, efficiency, and production cost. This article will deeply explore the core functions, working principle, and maintenance key points of the lathe High Precision Chuck, helping you understand the crucial role of this component.
I. The core function of High Precision Chuck: It is not merely about "clamping"
High Precision Chuck is a mechanical device used on machine tools to clamp workpieces. It is usually installed at the end of the spindle of equipment such as lathes, cylindrical grinders, and internal cylindrical grinders. It can also be combined with various indexing devices and be used on milling machines and drilling machines. Its core functions are mainly reflected in three aspects:
1. Clamping workpiece: The High Precision Chuck firmly clamps the workpiece through the radial movement of its evenly distributed movable jaws, which is the foundation for all processing operations.
2. Transmitting motion and power: The High Precision Chuck safely and reliably transmits the rotational motion and torque of the machine tool spindle to the workpiece, allowing it to rotate along with the spindle and withstand the cutting force.
3. Centering and Positioning: Ensure that the rotational center of the workpiece is precisely aligned with the centerline of the machine tool's spindle. This is crucial for maintaining processing accuracy. For instance, the three-jaw self-centering High Precision Chuck can automatically center the workpiece, keeping the center deviation within the allowable range.
Furthermore, based on different application requirements (such as processing batch size, workpiece shape, and precision requirements), High Precision Chuck has developed various types, including manual High Precision Chuck and power-driven High Precision Chuck (hydraulic, pneumatic), as well as rigid High Precision Chuck and floating High Precision Chuck tailored for different clamping characteristics.
II. Working Principle: Precise Collaboration of Mechanics and Hydraulics
The working principle of High Precision Chuck varies depending on its type and driving method.
1.Manual High Precision Chuck: Classic Mechanical Art

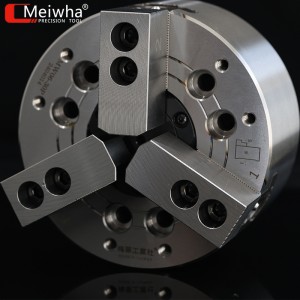

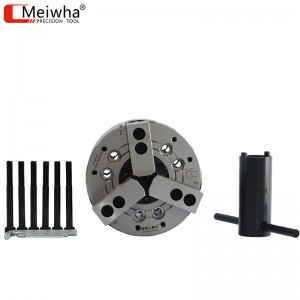

Three jaw self centering High Precision Chuck: This is the most versatile and common type of High Precision Chuck. Its core lies in an internal set of bevel gears and flat thread mechanism. When a wrench is used to rotate the small bevel gears on the High Precision Chuck, it will drive the large bevel gear with a flat thread (Archimedean spiral) on the back to rotate. The three jaws are evenly meshed on this flat thread, so they can move radially synchronously, achieving automatic centering and clamping, and is very suitable for regular workpieces such as circles, equilateral triangles, or regular hexagons.
Four prong single action High Precision Chuck: Its four clamping jaws can move independently and are not synchronized with each other. Each jaw is driven by a separate screw. This makes it highly suitable for holding eccentric parts, irregularly shaped workpieces, or square and rectangular workpieces, but it requires the operator to have a high level of alignment skills.

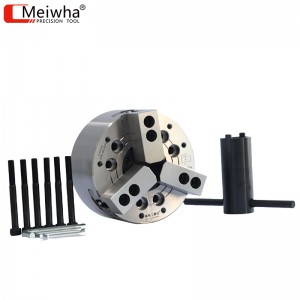

2. High Precision Chuck: The Source of Efficiency in Automated Production
To enhance production efficiency and meet the demands of automation, the application of power-driven High Precision Chuck (such as hydraulic or pneumatic High Precision Chuck) is becoming increasingly widespread.
Hydraulic High Precision Chuck: Powered by a hydraulic system. The high-pressure oil generated by the hydraulic station is pushed by the rotating cylinder (installed at the rear end of the spindle) to the piston, and then the force is transmitted to the driving mechanism inside the High Precision Chuck through the pull rod, causing the jaws to move. The hydraulic High Precision Chuck has stable and powerful clamping force, suitable for heavy cutting and CNC environments.
Pneumatic High Precision Chuck: Its working principle is similar to that of hydraulic High Precision Chuck, but it uses compressed air as the power source. It operates quickly and is easy to operate. Just by pressing a button, it can automatically center and clamp the workpiece, making it highly suitable for batch processing mechanical manufacturing enterprises.
3. Rigid High Precision Chuck and Floating High Precision Chuck: Meeting Different Precision Requirements
Rigid High Precision Chuck: Its jaw drive mechanism is a rigid connection. The clamping center formed after clamping is fixed. Therefore, before use, it is necessary to finely adjust the center of the High Precision Chuck to coincide with the center of the workpiece spindle. Otherwise, it is likely to cause deformation of the workpiece during clamping or false clamping. It is suitable for situations where the clamping surface has been processed and the cutting force is large.
Floating High Precision Chuck: It is equipped with a floating mechanism (such as a gap adjustment plate) inside. When the jaws come into contact with irregular or rough surface workpieces, the jaws can adapt to the tiny deviations of the workpiece and automatically float, ensuring that all three jaws can effectively contact and clamp the workpiece without disrupting the original positioning of the workpiece (such as the center determined by the center rest). This is particularly suitable for holding workpieces with rough surfaces.
III. Maintenance and Care
Proper maintenance and care are crucial for maintaining the long-term accuracy, reliability and service life of the High Precision Chuck. Failure to pay attention to maintenance can result in reduced clamping force, decreased accuracy, abnormal wear and even jamming.
1.Daily maintenance
Regular lubrication: This is the most crucial maintenance step. It is necessary to use the dedicated High Precision Chuck lubricating oil or molybdenum disulfide grease.
Special case: If the High Precision Chuck is rotating at high speed or if a large amount of water-based cutting fluid is used, the lubrication frequency should be increased according to the actual situation.
Cleaning after work: After each day's work is completed, be sure to use a blowtorch or similar tool to clean the iron filings and dirt on the body and sliding surface of the High Precision Chuck, to prevent them from entering the interior of the High Precision Chuck and damaging the precision components.
Anti-rust treatment: Using cutting oil with anti-rust properties can prevent rusting inside the High Precision Chuck. This is because rust on the High Precision Chuck will reduce the clamping force.
2.operation cautions
Proper selection of jaws: Depending on the shape of the workpiece and the processing requirements, choose the appropriate jaws or fixtures. Do not force the use of a three-jaw High Precision Chuck to hold irregular or strange workpieces, as this may cause damage to the High Precision Chuck.
Properly set the pressure: Based on the shape of the workpiece (such as a tubular workpiece) and the cutting conditions, set an appropriate oil pressure to avoid excessive clamping force that causes the workpiece to deform or insufficient clamping force that leads to slippage.
Avoid collisions and interference: Before starting the operation, conduct a low-speed test run to check if the workpiece/vice is interfering with the tool. If an impact occurs, immediately stop the machine and inspect all components of the High Precision Chuck.
Do not clamp the workpiece when parking: When the machine is parked for a long time, the High Precision Chuck must not be used to clamp the workpiece.
Summary: Selecting, utilizing and nurturing well can help achieve the maximum value.
Although the High Precision Chuck is small in size, it is an indispensable key component in mechanical processing. A thorough understanding of its functions, principles, and strict implementation of maintenance and care can not only ensure processing accuracy and stability, but also extend the equipment's lifespan, ultimately helping the enterprise reduce costs and increase efficiency.
