Drilling is one of the most fundamental and most frequently performed operations in modern CNC machining. Whether the part is a flange, housing, bracket, connecting plate, mould base plate, automotive component, construction machinery part or general mechanical structure, as long as it contains assembly holes, locating holes, through holes or pre-machined holes, drilling is an unavoidable process. For this reason, how to maintain drilling efficiency while also taking tool cost, ease of tool change and batch stability into account has always been an important concern in production. It is under this kind of machining demand that the Indexable Drill has become an essential drilling solution in many CNC production environments.
This article focuses on the Indexable Drill as its core tool and systematically explains its structural characteristics, working principle, main advantages, application conditions and selection points, so as to help companies gain a more complete understanding of the practical value of this type of tool in modern CNC drilling operations.
What is an Indexable Drill?

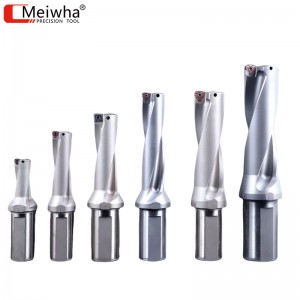

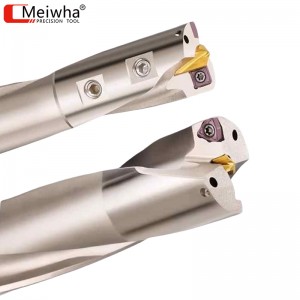

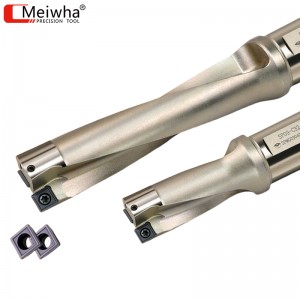

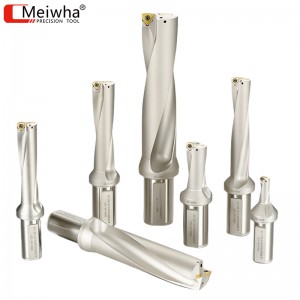

An Indexable Drill is a drilling tool that performs machining by means of replaceable inserts. Unlike a solid carbide drill or a traditional high-speed steel drill, the body of an Indexable Drill can usually be used over a long period, while the actual cutting work is carried out by the replaceable inserts mounted on the tool body.
This split structure gives the Indexable Drill a very distinctive set of engineering characteristics. On the one hand, the tool body serves as the main carrier for the inserts, and is responsible for connecting to the machine tool, transmitting torque and تحملing the cutting load. On the other hand, the inserts carry out the actual cutting. Once an insert is worn, the operator does not usually need to replace the complete tool, but only the insert. In some cases, it is even possible simply to index to a fresh cutting edge and continue production.
From the perspective of CNC machining, the Indexable Drill is not just a structural variation of a drill, but a tooling solution more closely aligned with batch production and cost control.
Why is the Indexable Drill becoming increasingly common in CNC drilling?
In many manufacturing companies, the difficulty in drilling is not simply whether a hole can be produced, but whether it can be produced quickly, reliably and economically. For medium to large hole diameters and batch hole production, if the process continues to rely entirely on traditional solid drills, it often leads to problems such as high tooling cost, frequent tool changes, lower maintenance efficiency on the shop floor and a relatively high cost per hole.
This is precisely the fundamental reason why the Indexable Drill is becoming more and more common.
First, it is better suited to batch production. Because the body can be reused repeatedly and the inserts can be changed quickly, the shop-floor rhythm is usually easier to control in parts with many holes and in high-frequency drilling tasks. Secondly, it offers better economy. Especially in medium to large diameter drilling, replacing only the inserts rather than the entire tool can significantly reduce tooling consumption costs. In addition, it is better suited to high-feed drilling, and can achieve high efficiency in the machining of many steel and cast iron components.
Therefore, the value of the Indexable Drill in modern CNC machining lies not only in its ability to drill holes, but in its ability to help companies achieve a better balance of efficiency, cost and process management.
What machining applications is the Indexable Drill suitable for?
From an application point of view, the Indexable Drill is not the best solution for every hole-making task, but it usually offers clear advantages in the following situations: drilling medium to large diameter holes, batch hole production, drilling in steel parts, drilling in cast iron parts, drilling medium-sized holes in stainless steel, machining holes in flanges, brackets, connecting plates and housing-type components, face drilling on lathes, and use as a pre-drilling operation before subsequent boring or finishing. For many companies, when a part contains a large number of repeated hole positions and greater attention is paid to machining cycle time and cost per hole, the Indexable Drill is often a very valuable choice.
Key selection points for an Indexable Drill
1. Hole diameter range: The first step is to identify the target hole diameter. Indexable drills usually offer greater advantages in medium to large hole machining, and different tool body series correspond to different diameter ranges.
2. Material type: Different materials determine the choice of insert grade, chipbreaker geometry and coating. The selection logic is not the same for machining steel, stainless steel, cast iron and aluminium alloy. We recommend contacting us so that we can provide a professional matching solution.
3. Machine rigidity and power: The Indexable Drill is often intended for higher-feed cutting, and therefore places certain demands on machine rigidity, spindle power and clamping stability. If the machine itself lacks sufficient rigidity, it will be difficult for the tool to deliver its full advantages, and severe tool marks may even appear on the workpiece.
4. Cooling conditions: Many indexable drills rely heavily on internal coolant conditions, especially in stainless steel, deep-hole applications or faster production cycles. For this reason, coolant supply capability is also a factor that must be considered when selecting the tool.
5. Hole quality requirements: If the workpiece has particularly demanding requirements for hole tolerance, cylindricity and surface finish, then in addition to considering the Indexable Drill itself, it is also necessary to determine in advance whether reaming, boring or another finishing operation will be required.
The Indexable Drill is a very important type of high-efficiency tool in modern CNC hole machining. Its core value lies not only in drilling itself, but also in providing companies with a more economical way of using tooling, higher cutting efficiency and a maintenance logic better suited to batch production through its replaceable insert structure.
For production environments involving medium to large hole diameters, batch hole positions and strong emphasis on cost control, as long as the material is properly assessed, the tool is correctly selected, the machine conditions are suitable and coolant and cutting parameters are set correctly, the Indexable Drill can often become a key solution for improving drilling efficiency and controlling cost per hole.
If a company is evaluating drilling tool solutions, or hopes to improve batch drilling efficiency, reduce tooling consumption and strengthen production consistency in CNC machining, then understanding and selecting the right Indexable Drill for the specific part is often more meaningful than simply comparing tool prices.
