Internal threads are commonly found in structural parts, connecting parts and assembly components in modern machining. In practice, whenever bolts or other fasteners are involved in assembly, internal thread machining becomes a key process that cannot be overlooked. For this reason, the Machine Tap has always been one of the most frequently used fundamental tools in metal cutting. When many people first come across this type of tool, they simply understand it as a tapping tool. That understanding is not wrong, but from the perspective of real production, what truly determines the quality of a Machine Tap is whether it can consistently control thread size, thread form integrity, surface finish and tool life under different materials, different hole types and different batch conditions, while also taking machining efficiency and batch consistency into account.
What are the common types of Tap
In practical use, Machine Tap is not a single type of tool, but can be divided into several types according to machining method, chip evacuation form, hole type and material characteristics.
1.1. Cutting tap
The cutting tap is the most common type of Tap. It forms the internal thread by cutting away material, and is suitable for the vast majority of conventional metal materials and standard threaded hole machining. For general mechanical machining, the cutting tap remains the most basic and most widely used choice.
2. 2. Forming tap
A forming tap, also known as a roll tap, does not remove material by cutting, but forms the thread by plastically deforming the material. It is more suitable for materials with better ductility, such as aluminium alloys, copper alloys and certain lower-hardness steels. Because no chips are produced, forming taps offer clear advantages in some specific applications.

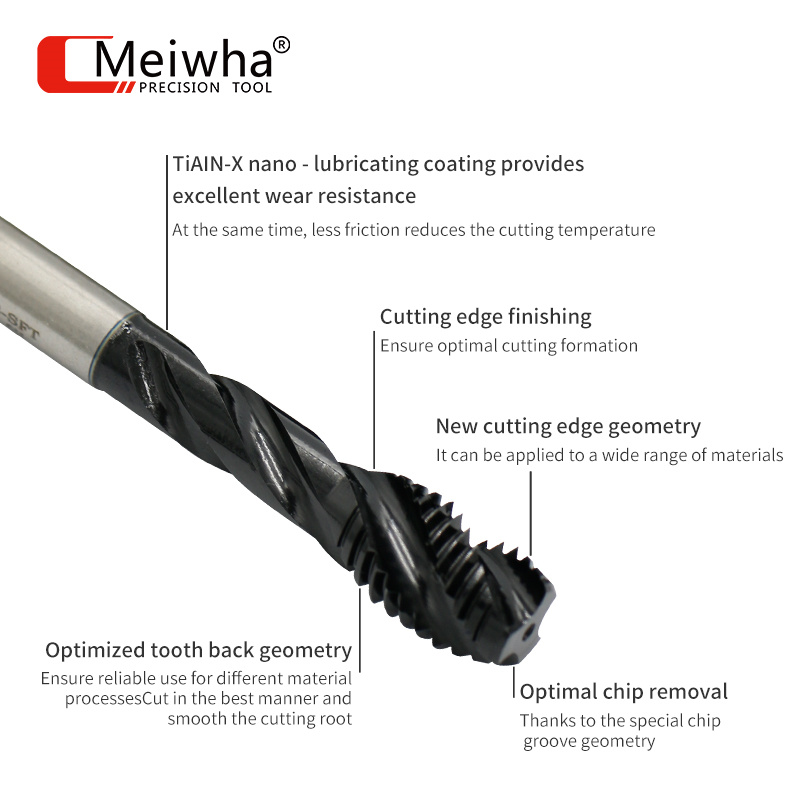

3. 3. Straight flute tap
The straight flute Machine Tap has a simple structure and is suitable for general hole types, as well as for threading certain cast irons and short-chipping materials. Its characteristics are strong versatility and a wide range of applications.

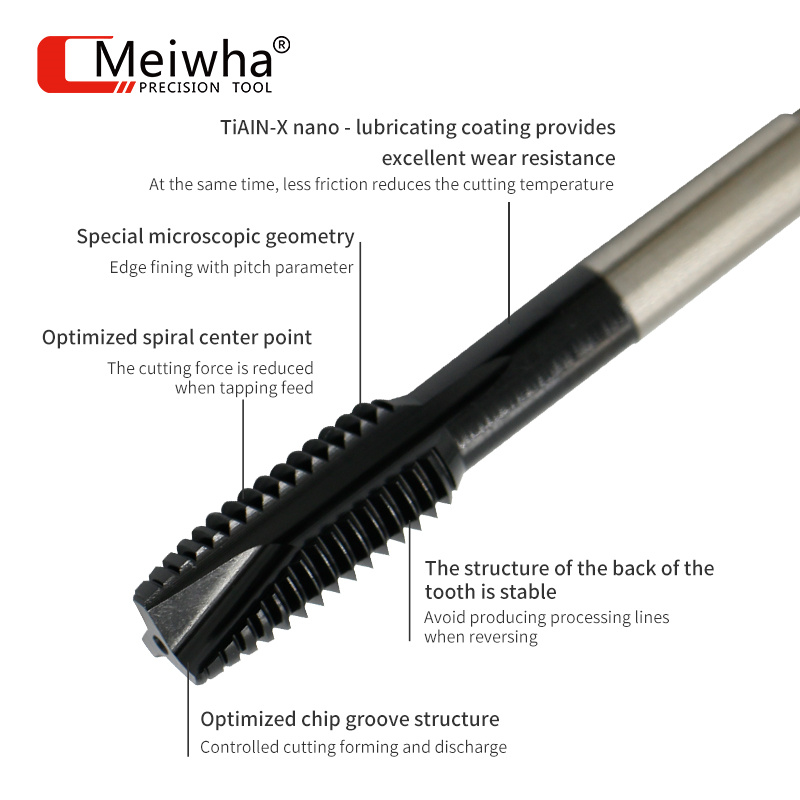

4. 4. Spiral flute tap
A spiral flute tap is generally more suitable for blind hole machining. Because its chip evacuation direction is more favourable for carrying chips upwards out of the hole, it is more commonly used in blind-hole and deep-hole tapping.
5. 5. Spiral point tap
A spiral point tap is commonly used for through holes. It pushes chips forwards, and therefore offers better chip evacuation and higher efficiency in through-hole tapping.
6. 6. Hand tap and machine tap
A hand tap is more suited to manual or low-speed machining, whereas a Machine Tap is mainly intended for tapping machines, drill-and-tap centres, machining centres and automated equipment, with greater emphasis on batch stability and machining efficiency.
What are the main application advantages of Tap?
1. High machining efficiency
For internal threaded holes of standard specification and fixed size, Tap remains one of the most direct and mature machining solutions available. Its efficiency advantage is especially clear in the mass production of small and medium-sized threaded holes.
2. Suitable for standardised batch production
Whether the thread specification is M3, M4, M5, M6, M8 or M10, Machine Tap can be combined with standard pre-drilled holes, standard programmes and standard clamping systems to form a mature process that is easy to reproduce in batch production.
3. Mature tool cost and process foundation
Compared with more complex thread milling solutions, Tap still offers a more established application base and a more direct machining route in many conventional operating conditions.
4. Direct thread form generation
The tap itself already carries the thread profile, so the tapping process forms the thread directly. For large quantities of parts with fixed specifications, this approach is both direct and efficient.
5. Wide application coverage
From aluminium alloys to carbon steel, and from general mechanical parts to mould accessories, Tap covers almost all common internal thread machining scenarios.
Machine Tap is one of the most fundamental and most important tools in modern internal thread machining. Its core value lies not only in producing threads, but also in helping companies improve thread quality, control machining cycle time and maintain batch consistency through a mature and stable machining method.
For aluminium alloy parts, steel parts, stainless steel parts, copper parts and all kinds of mechanical assembly components, as long as the material is judged correctly, the tap is selected appropriately, the pre-drilled hole is controlled properly and machine synchronisation remains stable, the Machine Tap can absolutely become a key tool for ensuring the efficiency and quality of internal thread machining.
If a company is evaluating internal thread machining solutions, or hopes to improve tapping stability, reduce the risk of tool breakage and enhance thread consistency in batch production, then understanding and selecting the right Machine Tap around the specific part is often more meaningful than simply comparing price.
