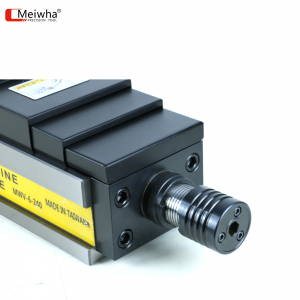

The Meiwha MC hydraulic vise is designed around two core features: clamping force can be freely adjusted, and an embedded slideway fixing structure suppresses jaw lift under load. This helps keep workpiece quality more stable in heavy-duty machining conditions, thereby improving consistency and yield in batch production.
In practice, during CNC machining the role of a vise is not simply to clamp the workpiece. More importantly, it must maintain stable holding, unchanged location, and repeatable accuracy even in demanding machining environments. For many factories, low yield often comes down to two long-standing clamping issues: unstable clamping force and jaw lift under load.
Freely adjustable clamping force: ensuring workpiece consistency
The core value of the MC hydraulic vise lies in “force control”. It supports freely adjustable clamping force, allowing factories to set an appropriate clamping level according to the workpiece material, wall thickness, locating method and machining operation. For production lines focused on yield, adjustable clamping force makes quality control easier and more predictable.
Embedded slideway fixing design:
The MC hydraulic vise adopts an embedded slideway fixing structure, which effectively suppresses the tendency for “jaw lift” under cutting loads. For conditions with higher impact loads—such as side milling, rough milling and interrupted cutting—this type of anti-lift structure often improves machining stability of the workpiece.
Precision-ground guideway: moving jaw to guideway surface clearance ＜0.1 mm, no offset during travel
Guideway accuracy determines whether a vise “travels straight” and whether the clamping action remains true. The guideways of the MC hydraulic vise are precision-ground, with a clearance between the moving jaw and the guideway surface of ＜0.1 mm, making misalignment during travel far less likely. This design improvement helps to: ensure repeatability in repeated clamping, reduce yaw or skew during clamping, and improve overall machining accuracy.
Ductile iron material with high tensile strength: resistant to deformation, maintaining wear resistance and accuracy over the long term
The body of the MC hydraulic vise is made from ductile iron, offering high tensile strength, good wear resistance and strong resistance to deformation. For a vise, this means: high rigidity support, durable wear performance, and better long-term retention of accuracy.
Application scenarios for the MC hydraulic vise
- Batch production on CNC vertical and horizontal machining centres.
- FMS flexible manufacturing systems and pallet lines.
- Load-fluctuation operations such as side milling, rough milling and interrupted cutting.
- Machining of easily deformed workpieces.
- Workpieces requiring high repeatability in repeated clamping.
When production moves into batch manufacturing, a vise is no longer just a “clamping tool” — it becomes a key system that affects accuracy, efficiency and cost.
With freely adjustable clamping force at its core, and supported by an embedded slideway fixing design to suppress jaw lift, precision-ground guideways controlling clearance to ＜0.1 mm, and a high-rigidity ductile iron body for long-term stability, the MC hydraulic vise provides a more reliable precision clamping solution for batch production.
