In CNC machining centres and FMS flexible manufacturing systems, it is hard to ignore the role of the vise in determining both machining quality and productivity. Many workshops experience dimensional variation, chatter and surface marks, and these issues are not always caused purely by the machine tool or the cutting tool. Very often, they come from clamping problems such as inconsistent clamping force, jaw lift, and poor repeatability in repeated clamping. Under heavy cutting, these problems can be amplified dramatically.
The Meiwha mechanical power vise is designed to address these challenges. By using a purely mechanical force-multiplying structure, it standardises and amplifies the operator’s input torque while delivering fast, reliable clamping force—improving CNC machining stability and efficiency.
What is a mechanical power vise? How is it different from a standard vise?
The key characteristic of a mechanical power vise can be summarised in one sentence: it multiplies clamping force in the final locking stage through a force-multiplying mechanism, while keeping the clamping condition stable and controllable.
Compared with a standard vise, a mechanical power vise typically offers the following differentiated advantages:
- 1. Higher and more stable clamping force: the final-stage amplification rapidly increases clamping force, providing stronger resistance to cutting-force disturbance.
- 2. Better repeatability in repeated clamping: it reduces clamping variation caused by different operators’ feel and technique.
- 3. More suitable for heavy-cutting conditions: it is more favourable for high-load operations such as side milling, rough milling and interrupted cutting.
- 4. Better suitability for high-throughput production: faster clamping, with fewer rework incidents and less downtime.
Principle of mechanical force multiplication
The force multiplication of a mechanical power vise comes from mechanical advantage. While designs may vary slightly between brands, the principle is essentially the same: one or more of the following mechanisms are used to deliver force amplification and a self-locking tendency at the final locking stage:
Wedge and angled-wedge amplification: converts and multiplies input force into clamping force through an inclined plane.
Eccentric cam: produces strong force amplification at the end of locking, while also providing a self-locking tendency.
Toggle linkage: force multiplication becomes significant near the end position, with stable clamping that is less likely to rebound.
Ratchet: improves operating efficiency and consistency, and reduces operator fatigue.
In real machining, these structures are not only about “higher clamping force”. More importantly, they make the clamping condition far less likely to be disturbed under varying cutting loads, vibration impact, and interrupted cutting conditions.
Problems a mechanical power vise can solve
- Preventing workpiece micro-movement: under conditions such as large depths of cut, high feed rates and aggressive side milling, micro-movement is often the root cause of dimensional drift. By providing higher, more stable clamping force, a mechanical power vise significantly reduces the likelihood of the workpiece “creeping” during machining.
- Suppressing jaw lift: many vises can experience jaw lift or changes in clamping posture under heavy cutting, causing slight shifts at the locating surface and ultimately poorer flatness/perpendicularity. For this reason, our mechanical power vise is often paired with an anti-lift structure, making it better suited to batch production where consistency is critical.
- Greater durability and less maintenance: high-quality mechanical power vises typically prioritise chip protection and sealing, reducing jamming and wear caused by chips entering the transmission and leadscrew area. This extends service life and lowers maintenance frequency.
Therefore, when machining moves into heavy cutting and fast-paced batch production, the vise becomes a major factor affecting accuracy, efficiency and cost.

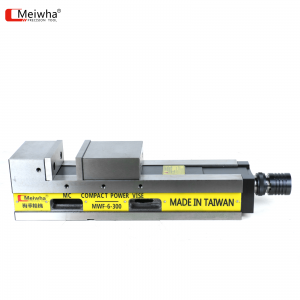

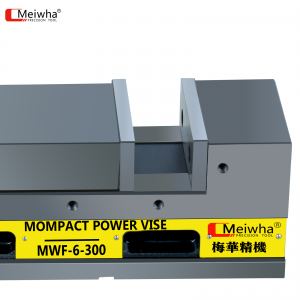

With the higher clamping force, more stable holding and improved repeatability provided by its force-multiplying structure, the Meiwha mechanical power vise is well suited to heavy-cutting conditions on vertical or horizontal machining centres and FMS systems. It helps manufacturers reduce dimensional drift and scrap parts caused by jaw lift.
