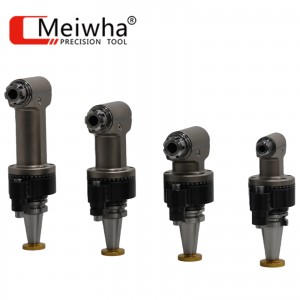

Meiwha Angle Head Holder
I. What Is an Angle Head Holder (Right-angle Head / 90-degree Head)?

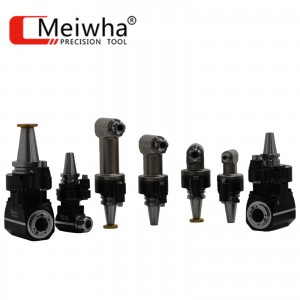

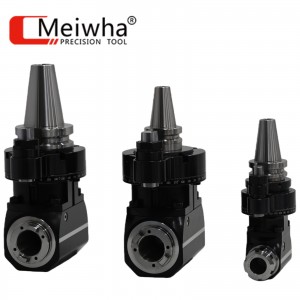

An Angle Head Holder—also widely referred to as a Right-angle head or 90-degree head—is a spindle-driven attachment that redirects rotational power from the machine spindle to an output axis at an angle, most commonly 90 degrees. That output drives a tool—drill, tap, end mill, countersink, etc.—to machine features that are not accessible along the spindle’s primary axis.
You will typically see it used to:
1.Drill or tap holes on a side face without re-clamping the part.
2.Mill side slots, keyways, or edge features in a single setup.
3.Access features inside cavities where straight tooling cannot reach.
In practice, a Right-angle head is not just a “tool holder.” It is a gear-driven transmission with bearings, lubrication, seals, and a mechanical anti-rotation system—meaning it must be evaluated like a precision machine component, not a simple accessory.
II. Why Shops Use 90-Degree Heads: The Real Production Benefits
Angle heads are adopted when the cost of extra setups is high. The core benefits are straightforward, but the business impact can be significant.
Reduced setups and improved datum integrity
By machining multiple faces in one clamping, the process maintains datum consistency. This improves positional accuracy between features on different faces, true position and perpendicularity, and overall repeatability.
Higher spindle utilization and shorter lead time
Fewer setups reduce non-cutting time: staging, probing, re-fixturing, re-zeroing, and inspection handoffs. For many parts, the biggest gain is not higher feed rates—it is less handling.
Simplified fixturing and fewer workholding variants
With a 90-degree head, you can often eliminate complex multi-side fixtures, additional tombstones/angles, and custom sub-plates.
A procurement-friendly ROI profile
For procurement, the value proposition often lands in: fewer machines required, increased output capacity on existing machines, reduced tool breakage and downtime, and fewer fixture designs.
III. How an Angle Head Holder Works: Key Mechanical Elements
Power transmission and gearing
Most 90-degree heads use bevel gears (often spiral bevel gears in higher-grade designs) to convert spindle rotation to the perpendicular output axis. This introduces gear mesh dynamics and additional heat at high RPM or high torque.

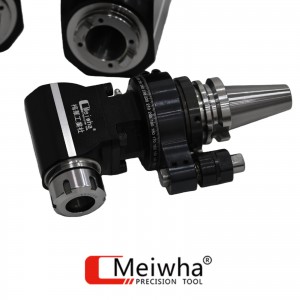

Anti-rotation (torque arm)
Because the spindle drives the angle head, the housing must be prevented from rotating. This is typically done with a torque arm that locates against a fixed machine feature, a spindle-face bracket, or a docking station.
Gear ratio (1:1, step-up, step-down)
- 1. 1:1: output RPM roughly equals spindle RPM.
- 2. Step-up: higher output RPM, lower torque.
- 3. Step-down: lower output RPM, higher torque.
Tool interface on the output side
Common toolholding formats include ER collets, Weldon side-lock holders, and hydraulic/shrink-fit systems depending on torque and runout requirements.
Coolant and sealing
Angle heads may offer external coolant only, internal routing, or through-coolant capability. Seal integrity and lubrication stability are critical for service life.
IV. Where Angle Heads Deliver the Highest Value
Best-fit applications
-
1. Housings and castings (side ports, threaded bosses, patterns)
-
2. Valve blocks/manifolds (multi-face drilling and tapping)
-
3. Automotive production (high volume lateral holes)
-
4. Aerospace structures (complex multi-face features)
-
5. Large parts where part rotation is expensive
When you should be cautious
Be cautious with heavy roughing requiring maximum rigidity, ultra-high-speed finishing limited by head RPM/bearing heat, and tight-clearance jobs without robust simulation.
V. Selection Criteria: Engineering and Procurement Checklist
Compatibility and integration
Confirm machine interface (BT/CAT/HSK/Capto/VDI/BMT), torque-arm docking feasibility, ATC limits (weight/length), and programming support.
Performance specifications
Evaluate maximum RPM, rated torque, power rating, runout at the tool, and thermal limits.
Geometry and clearance
Check envelope dimensions, centerline offset, gauge-line length, and collision risk.
Toolholding and process intent
Match the tool interface to your process: runout-focused (hydraulic/shrink-fit) vs torque-focused (Weldon).
Lifecycle considerations
Review lubrication intervals, rebuildability, spare parts availability, warranty, and lead time.
VI. Setup and Programming: Avoiding the “It Installs, But It Fails” Scenario
Define offsets correctly
Model tool length compensation, lateral offset to the output axis, and rotational alignment.
Simulate envelope and collision
Validate approach/retract moves, toolchange positions (if ATC), and clearance during cornering/interpolation.
Validate with a controlled ramp-up
Air-run, then low-load test cuts, then gradually increase load while monitoring vibration, heat, and surface quality.
VII. Parameter Adjustment for Tapping with an Angle Head Holder
Why tapping is more sensitive with a 90-degree head
Reduced rigidity, gear dynamics, more difficult coolant delivery, and chip packing—especially in blind holes—can create torque peaks that break taps.
Practical “start-safe” rules for tapping
Rule A: Reduce spindle speed by 20%–40%.
Lower speed reduces torque fluctuation and impact during entry and reversal.
Rule B: Bias tap drill size toward the high end of tolerance.
A slightly larger minor diameter lowers torque and reduces breakage risk.
Rule C: Add or improve lead-in geometry (chamfer/countersink).
This reduces entry shock and helps alignment.
Rule D: Use tap geometry matched to hole type.
Through holes: often spiral point. Blind holes: often spiral flute.
Rule E: Consider peck tapping for deep or chip-prone conditions.
It helps control chips and stabilizes torque.
Rigid tapping vs. floating
If synchronization is unstable through the angle head, a floating tap holder may improve robustness, especially for small taps.
Coolant and lubrication
Through-coolant is a major advantage. If external only, aim nozzles precisely at the hole mouth and prioritize lubrication for stainless and form tapping.
Conservative baseline without data
Start at 60%–80% of a proven straight-holder tapping speed, use an upper-range tap drill (within spec), add chamfer, and validate before increasing speed.
VIII. Parameter Adjustment for Side Milling with an Angle Head Holder
Why side milling is different on a right-angle head
Increased overhang reduces stiffness, gear-driven dynamics add excitation, and chip evacuation is more difficult—making chatter more likely.
Proven “stability-first” adjustments
Rule A: Reduce RPM by 10%–30% to avoid resonance zones.
Rule B: Reduce chip load (fz) by 10%–25% initially.
Rule C: Control radial engagement (ae) aggressively; let axial depth (ap) do the work.
A stable strategy is ae ≈ 5%–20% of cutter diameter, with ap increased as rigidity allows.
Rule D: Prefer constant-load toolpaths (dynamic/adaptive).
Avoid sudden engagement spikes in corners.
Rule E: Prefer climb milling in most cases.
Climb milling often reduces rubbing and stabilizes cutting.
Tool and holder strategy
Minimize stick-out, use variable pitch/helix end mills, choose the most rigid practical cutter diameter, and select low-runout holding (hydraulic/shrink-fit) when required.
Coolant and chips
Improve coolant direction and chip evacuation to prevent re-cutting, which often drives tool failure.
IX. A Practical Tuning Sequence (How to Improve Fast on the Shop Floor)
For side milling
-
1. Reduce ae first
-
2. Reduce fz second
-
3. Adjust RPM to escape resonance third
-
4. Increase ap last to regain productivity
For tapping
-
1. Verify tap drill size and lead-in chamfer
-
2. Improve lubrication/coolant delivery
-
3. Reduce RPM and validate synchronization
-
4. Add peck tapping if chip packing remains
X. Common Failure Symptoms and What They Usually Mean
Tapping
- ·Tap breaks at entry: insufficient chamfer, misalignment, excessive RPM, poor lubrication
- ·Tap breaks mid-hole: chip packing, minor diameter too small, torque spikes
- ·Thread inconsistent: runout, synchronization issues, unstable coolant
Side milling
- ·High-pitched squeal/wave finish: chatter; reduce ae, change RPM band, improve rigidity
- ·Corner chipping: engagement spikes; dynamic path, reduce ae, corner smoothing
- ·Poor tool life: chip re-cutting, excessive stick-out, runout issues
XI. Conclusion: How to Use an Angle Head Holder Successfully
An Angle Head Holder (Right-angle head / 90-degree head) is a high-leverage solution for multi-face machining where setup reduction and datum control matter. Success comes from selecting by real torque/RPM and clearance needs, integrating anti-rotation and offsets correctly, and applying stability-first parameter rules for tapping and side milling.
If you want a recommended specification and a tailored starting sheet for cutting parameters (based on your machine interface, materials, hole/thread specs, cutter selection, coolant method, and clearance constraints), contact us. We can propose a more reliable angle head configuration and provide practical tapping and side milling parameter guidelines to reduce tap breakage, chatter, and downtime while improving throughput.
