In modern CNC machining, the choice of toolholder has a direct influence on machining accuracy, surface finish, tool life and process stability. Among the many clamping systems used in milling, drilling, reaming and finishing operations, the Hydraulic Tool Holder has become an increasingly important option for manufacturers who require a balance of precision, convenience and repeatability.
Compared with standard collet chucks, side-lock holders and other conventional clamping systems, a Hydraulic Tool Holder is designed to provide more uniform clamping force, lower runout and better vibration damping. For applications involving small-diameter cutting tools, fine finishing, high surface quality requirements or unstable machining conditions, this type of holder often delivers a more predictable and controllable result.
This article explains what a Hydraulic Tool Holder is, how it works, where it performs best, how it differs from other toolholder types, and what users should evaluate when selecting one for real production.

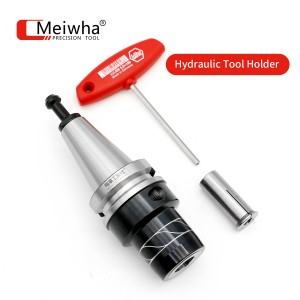

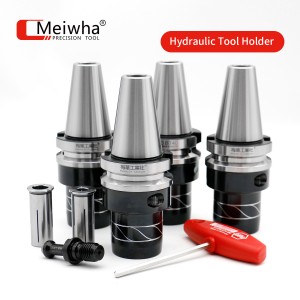

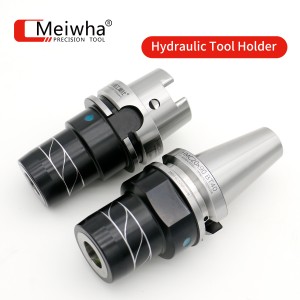

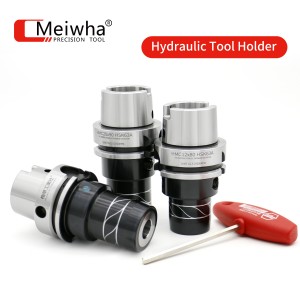

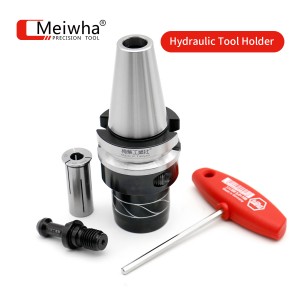

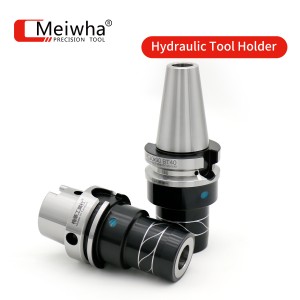

What Is a Hydraulic Tool Holder?
A Hydraulic Tool Holder is a high-precision clamping system that uses an internal hydraulic medium to generate uniform pressure around the shank of the cutting tool. When the clamping screw is tightened, pressure is transmitted through the hydraulic chamber, causing the thin-walled clamping sleeve inside the holder to deform slightly and grip the tool shank evenly.
This design is fundamentally different from a standard ER collet system. In an ER holder, the clamping force is generated mechanically through the collet and nut. In a Hydraulic Tool Holder, the force is distributed more evenly around the tool, which helps reduce runout and improve concentricity.
Because of this principle, the Hydraulic Tool Holder is often associated with high-precision machining, stable finishing performance and easier tool changes in comparison with some other high-accuracy systems.
How Does a Hydraulic Tool Holder Work?
The operating principle of a Hydraulic Tool Holder is based on controlled elastic deformation. Inside the holder body, a sealed hydraulic chamber contains a pressure medium. When the clamping screw is actuated, hydraulic pressure is applied internally, forcing the clamping section to shrink slightly around the cylindrical shank of the cutting tool.
This mechanism offers three practical advantages.
First, the clamping force is distributed circumferentially rather than concentrated at one or two points. This improves tool centring and reduces deformation on the tool shank.
Second, the holder structure helps absorb part of the vibration generated during cutting. This damping effect is one of the reasons why a Hydraulic Tool Holder is often preferred in finishing operations and in applications where chatter needs to be reduced.
Third, tool changes are relatively simple. Unlike shrink fit holders, a Hydraulic Tool Holder does not require heating equipment. This makes it attractive for workshops that need higher precision than ER collet systems can typically provide, while still wanting a practical and efficient tool change process.
Why Is Hydraulic Tool Holder Technology Important in CNC Machining?
In high-precision machining, the toolholder is not just a connection between spindle and tool. It is a critical part of the cutting system. If the holder introduces runout, insufficient rigidity or unstable clamping, the machining process will suffer even if the machine tool, spindle and cutting tool themselves are of high quality.
This is where the Hydraulic Tool Holder becomes highly relevant. Its value is not only in clamping the tool, but in improving the consistency of the entire machining process.
When runout is reduced, each flute of the cutting tool cuts more evenly. This improves surface finish and dimensional consistency. When vibration is reduced, the cutting edge is less likely to chip prematurely, and the machine can often maintain a more stable finish pass. When tool changes are repeatable, setup efficiency improves and process variation decreases.
For manufacturers focused on repeatable CNC performance rather than isolated single-part results, the Hydraulic Tool Holder is therefore more than an accessory. It is a process control component.
Main Advantages of a Hydraulic Tool Holder
High Clamping Accuracy
One of the best-known characteristics of a Hydraulic Tool Holder is its high clamping accuracy. Because the pressure is distributed uniformly around the tool shank, radial runout can generally be controlled more effectively than with standard collet-based systems.
In real machining terms, this means the cutting edge engages more consistently, which is especially important for small-diameter end mills, reamers, drills and finishing tools.
Low Runout
Low runout is closely linked to better hole quality, improved circular interpolation results, better wall finish and longer tool life. In applications where precision is measured in microns rather than tenths of a millimetre, the Hydraulic Tool Holder offers a clear advantage over more general-purpose holders.
Good Vibration Damping
The damping behaviour of a Hydraulic Tool Holder is another key reason for its popularity. During finishing, contour milling or long-reach applications, vibration often becomes the limiting factor rather than spindle power. Because hydraulic holders help suppress chatter, they can improve both the stability of the cut and the visual quality of the machined surface.
Better Surface Finish
A Hydraulic Tool Holder is frequently chosen when surface quality matters. In aluminium machining, it can help reduce visible tool marks. In stainless steel and alloy steel finishing, it can help maintain more consistent surface texture. In mould and die work, it contributes to smoother profiles and more controlled finishing passes.
Convenient Tool Change
Compared with shrink fit systems, a Hydraulic Tool Holder is easier to operate in daily production. It does not require a heating device, cooling station or specialised shrink equipment. For many workshops, this makes it a practical high-precision solution rather than a specialised one.
Typical Applications of a Hydraulic Tool Holder
The Hydraulic Tool Holder is not intended to replace every other toolholder in the workshop. Its strength lies in specific machining conditions where accuracy, finish and stability are more important than maximum roughing torque.
Typical applications include finish milling of profiles, semi-finishing and finishing of cavities, drilling operations requiring better hole quality, reaming, precision boring, fine contour machining and high-quality aluminium machining. It is also very suitable for small-diameter tools and tools with longer gauge lengths, where vibration control becomes more important.
In industries such as aerospace, medical, mould and die, precision parts manufacturing and high-end automotive component production, the Hydraulic Tool Holder is often selected for the finishing stages of the process rather than the heaviest stock removal stages.
Hydraulic Tool Holder vs ER Collet Chuck
The comparison between Hydraulic Tool Holder and ER collet chuck is one of the most common in machining practice.
An ER collet system is highly versatile and cost-effective. One holder body can be used with different collets to accommodate multiple tool shank diameters. This flexibility makes ER holders a standard choice for general-purpose machining.
However, from a precision and finishing perspective, the Hydraulic Tool Holder usually offers better runout control, more uniform clamping and stronger damping performance. In other words, ER holders are excellent for versatility, while hydraulic holders are stronger in precision-oriented applications.
For shops focused on general roughing, semi-finishing and multi-purpose tooling, ER remains practical. For operations where finish quality, dimensional consistency and small-tool stability matter, the Hydraulic Tool Holder usually has the technical advantage.
Hydraulic Tool Holder vs Side Lock Holder
A side lock holder is designed for strong mechanical retention and high torque transmission. It is often preferred for heavy roughing with Weldon shank cutters. When the objective is aggressive stock removal, side lock holders still have clear advantages.
By contrast, a Hydraulic Tool Holder is not primarily designed for extreme roughing torque. Its main strengths are precision, concentricity and damping. If the application involves high-speed finishing, light-to-medium milling, fine profiling or small-diameter tooling, hydraulic systems generally provide a better outcome.
This comparison shows an important point: a Hydraulic Tool Holder should not be judged as a universal replacement for every holder type. It should be selected where its engineering strengths match the cutting demands.
Hydraulic Tool Holder vs Shrink Fit Holder
Shrink fit holders are also known for high precision and excellent concentricity. In some very high-speed machining environments, they remain a preferred choice because of their slim profile and strong interference fit.
However, shrink fit systems require dedicated equipment and more complex handling. This increases operational cost and process dependency. A Hydraulic Tool Holder offers a different balance. It provides high precision and easy handling without the need for thermal equipment, making it more convenient in many daily production environments.
Where the user values both precision and shop-floor practicality, the Hydraulic Tool Holder often becomes the more accessible option.
When Should You Choose a Hydraulic Tool Holder?
A Hydraulic Tool Holder should be considered when the process demands tighter control over runout, better surface finish, more stable tool life or easier repeatability in finishing operations.
It is particularly suitable when machining with small-diameter tools, when the part surface is visually important, when chatter has become a limiting factor, when finishing passes need to remain consistent from batch to batch, or when the production environment needs a high-precision system without the complexity of shrink technology.
If the application is dominated by deep roughing cuts, high torque demand and heavy material removal, other holder types may be more appropriate. But when the machining challenge shifts from “how much material can be removed” to “how accurately and how cleanly can the feature be finished”, the Hydraulic Tool Holder becomes highly relevant.
Key Factors to Consider When Selecting a Hydraulic Tool Holder
Choosing the right Hydraulic Tool Holder requires more than simply matching the spindle taper. Several factors should be evaluated.
The first is spindle interface, such as BT, SK, CAT or HSK. The second is the required tool shank diameter. Hydraulic holders are usually designed for specific nominal diameters, so correct matching is essential. The third is projection length and application type. A longer gauge length may improve reach, but it can also reduce rigidity.
The fourth factor is balancing quality, especially for high-speed machining. The fifth is accessibility to the feature being machined. In some cases, slim nose designs are necessary for cavity work or mould applications. The sixth is coolant delivery, if internal coolant or peripheral coolant compatibility is required.
Finally, users should consider the actual machining objective. A Hydraulic Tool Holder selected for reaming, for example, may not be identical to one selected for contour finishing or high-speed aluminium milling.
Common Mistakes in Using a Hydraulic Tool Holder
Even a high-quality Hydraulic Tool Holder will not perform well if used incorrectly. One common mistake is using it in applications that exceed its ideal cutting load. Another is installing tools with incorrect shank tolerance or poor surface condition, which reduces clamping consistency.
Improper tightening, contamination inside the clamping bore, excessive tool overhang and neglect of balancing requirements can also degrade performance. In some workshops, hydraulic holders are purchased for high-precision work but then used with unstable tools, poor setup discipline or unsuitable cutting data. In such cases, the expected benefits are reduced.
A Hydraulic Tool Holder performs best when it is part of a disciplined machining system that includes correct tool selection, proper setup, clean handling and process-appropriate cutting parameters.
Why Hydraulic Tool Holder Matters for Surface Finish and Tool Life
Surface finish and tool life are two outcomes that many manufacturers want to improve without necessarily changing the machine tool itself. The Hydraulic Tool Holder can contribute to both.
When runout is lower, the tool cuts more evenly and the wear pattern becomes more balanced. When vibration is damped, the cutting edge experiences less impact loading. When clamping is more consistent, the machining result becomes more repeatable from one setup to the next.
These effects may appear small in isolation, but over a full production cycle they become significant. Better surface finish means less manual polishing or secondary finishing. More stable tool life means lower tooling cost and fewer process interruptions. More consistent results mean better predictability in production planning.
This is why the Hydraulic Tool Holder is increasingly used not only as a premium accessory, but as a practical productivity tool in high-value machining.
The Hydraulic Tool Holder is a precision-oriented clamping solution designed for modern CNC machining environments where accuracy, stability and surface finish matter. Its core strengths lie in uniform clamping, low runout, vibration damping and convenient handling. While it is not the best choice for every roughing application, it is one of the most effective solutions for finishing, small-tool machining and quality-sensitive operations.
For manufacturers seeking a better balance between machining precision and workshop practicality, the Hydraulic Tool Holder offers a strong and technically sound option. It is not simply a replacement for ER or side lock systems. It is a specialised toolholding solution for processes where consistency, finish quality and process confidence are critical.
