In CNC machining, many dimensional fluctuations, positional deviations and batch inconsistency issues appear at first glance to be caused by the programme, the cutting tools or machine accuracy, but in practice the root cause often lies in the clamping stage. Especially in the machining of symmetrical parts, multi-face parts and batch components, the fixture not only determines whether the workpiece can be clamped securely, but also whether it can maintain the same centre datum relationship after every setup.
It is against this background that the Self-Centering Vise has gradually evolved from being a “special-purpose vice” into a core workholding solution in many production environments. Its value lies not merely in automatically centring the workpiece, but in helping manufacturers reduce clamping error, minimise deviations after re-clamping or reversing, improve batch consistency, and align the programme datum more effectively with the clamping datum through a more stable centre-positioning logic.
For modern manufacturing operations that place increasing emphasis on efficiency, precision and repeatability, the Self-Centering Vise is no longer simply one fixture option among many, but in certain applications an important workholding system that directly affects the machining result.
Why is a standard vise no longer enough in some CNC applications?
A standard machine vice is, of course, still one of the most common and practical fixtures on the CNC shop floor, but its basic logic is usually “one side fixed, one side moving”. This means that during clamping, the workpiece is typically pushed towards one fixed side rather than automatically brought towards the centre.
This clamping method works perfectly well in many single-face machining operations and single-side datum processes, but once the application involves the following conditions, its limitations become more apparent:
- Parts programmed from a centreline or axis of symmetry
- Components requiring strict left-right symmetry of profiles or hole positions
- Workpieces that must be turned over for further machining
- A single programme running continuously across batch production
- Setups requiring stable positional relationships across multiple faces
- Shop-floor processes aiming to reduce manual centring, stop adjustments and repeated correction
Under these conditions, a standard vice may be able to “hold the workpiece”, but it does not necessarily “hold it accurately, stably and repeatably”. This is precisely the technical significance of the Self-Centering Vise.
What problem does the Self-Centering Vise really solve?
Many people describe the function of the Self-Centering Vise simply as “automatic centring”. That is not wrong, but it is not complete enough. A more accurate description would be:

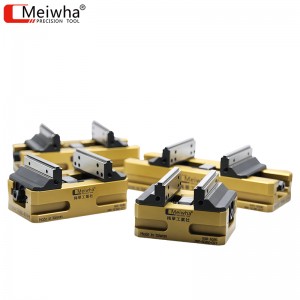

A Self-Centering Vise is a high-precision workholding system that causes the workpiece to return automatically to its central datum position during clamping by means of a symmetrical clamping mechanism.
Its real technical value is reflected mainly in the following three areas.
1. It solves the problem of repeatability in the centre datum
If the machining logic of a part is based around its centre, then whether that centre position remains consistent after every setup becomes a key variable affecting the final result.
By means of symmetrical clamping, the Self-Centering Vise helps the workpiece remain on the same centreline during clamping, thereby reducing centre shift caused by one-sided pushing.
This is particularly important for the following operations:
- Centre-hole machining
- Symmetrical profile machining
- Twin-slot machining
- Machining of symmetrical multi-hole patterns
- Parts that continue to use the centre as the datum after being turned over
2. It solves positional transfer problems in reversed and multi-face machining
In multi-face machining, the greatest concern is often not whether a feature on one face can be machined, but whether the positional relationship changes once the workpiece is turned over.
If the centre datum can be established more consistently in the first setup, then the logic of subsequent reversing, repositioning and secondary setups becomes more uniform, and the machining result is more likely to remain stable.
3. It solves batch consistency problems in workpiece clamping
In batch production, the most common issue is not major deviation, but rather that “every part is slightly different”.
Once these small deviations accumulate in hole positions, profile symmetry and assembly relationships, they become batch defects.
One of the core values of the Self-Centering Vise is that it helps each part return to the same centred condition after every changeover.
Why is the working logic of a Self-Centering Vise better suited to centre-datum machining?
From the point of view of mechanical design, the core of a Self-Centering Vise lies not in clamping force itself, but in the simultaneous movement of the left and right jaws towards the centre.
Common mechanisms include:
- Dual-direction lead screw transmission
- Wedge-type symmetrical drive
- Gear-linked synchronising mechanism
- Symmetrical slide transmission structure
The common purpose of these structures is not simply to increase clamping action, but to bring the workpiece back to the centre position during the clamping process. As a result, the reference logic after clamping is more closely aligned with the centre-based logic of the programme.
This is particularly important in CNC machining, because many precision parts are naturally programmed around the following datums:
- The geometric centre of the workpiece
- A central bore
- An axis of symmetry
- A central face
- The centreline of a symmetrical profile
If the fixture itself helps maintain this logic, the relationship between programming, clamping, reversing and inspection becomes much smoother.
Which workpieces are most worth using a Self-Centering Vise for?
Not every workpiece is suitable for a self-centring vice, but there is a category of parts for which, once the correct solution is used, the results are very clear.
Symmetrical block-type parts
For example:
- Aluminium alloy blocks
- Steel connection blocks
- Mould modules
- Precision fixture blocks
- Support and locating blocks
These parts usually have relatively regular clamping surfaces, and many holes and profiles are arranged around the centre, making them particularly suitable for a Self-Centering Vise.
Valve bodies, flow blocks and interface blocks
These parts often have features such as:
- A central main bore
- Left-right symmetrical hole patterns
- Multi-face machining
- Strict assembly relationships
If the centre datum shifts even slightly, the subsequent hole patterns and interface positions are affected accordingly, so the value of self-centring clamping is high.
Multi-face machined parts
If a workpiece requires front, back and side machining in sequence, and if the positional relationship between features on different faces is critical, then the Self-Centering Vise is more effective in maintaining a consistent datum transfer logic.
Automated batch parts
In robotic loading and unloading, palletised machining and flexible manufacturing units, the repeatability of the fixture is often more important than one-time clamping force.
In such scenarios, the Self-Centering Vise is better suited to establishing a standardised, repeatable clamping process.
The value of the Self-Centering Vise in modern CNC machining does not lie simply in the words “automatic centring”, but in the fact that, through symmetrical clamping logic, it helps manufacturers control the centre datum of the workpiece more consistently, thereby improving batch consistency, multi-face machining stability and overall production efficiency.
For symmetrical block parts, valve body components, multi-face machined parts and automated batch workpieces, as long as the process datum is based around the centre, the Self-Centering Vise will often provide more stable clamping results than a standard one-sided clamping solution. The real issue it solves is not merely whether the part can be clamped, but whether it can enter machining each time in a condition that is closer to the same centre position.
If a company is evaluating fixture upgrade solutions, or wants to improve the repeatability of centre positioning in batch production, then understanding and selecting the right Self-Centering Vise based on the actual part is usually more meaningful than comparing clamping force, dimensions and price alone.
