In the field of CNC machining, particularly in industries where high precision is required, the stability of the tool clamping system directly affects workpiece quality, especially in mould manufacturing and aerospace component production. The shrink fit tool holder has become an essential choice in these sectors, and the corresponding shrink fit machine has likewise become critical in ensuring the stable operation of the shrink fit system.
The Meiwha shrink fit machine has been designed to meet the modern machining requirements for high rigidity, high accuracy and high efficiency, providing CNC workshops with a reliable tool clamping solution.
Why Is a Shrink Fit Machine Required?

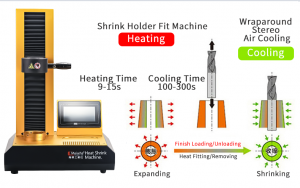

Due to the specific clamping requirements of shrink fit tool holders, the core principle is based on the thermal expansion and contraction properties of metal. By precisely heating the internal bore of the tool holder, a slight expansion is achieved. The cutting tool is then inserted, and as the holder cools and contracts, a uniform 360-degree clamping force is generated.
This structure offers several advantages: higher concentricity, superior clamping rigidity, greater torque transmission capability, and more stable machining accuracy. To ensure this process is carried out smoothly and reliably, a high-quality shrink fit machine is essential.
Technical Features of the Meiwha Shrink Fit Machine
Wide Sintering Diameter Range:The standard model supports bore diameters from D3 to D32. If special requirements arise, we can manufacture according to customer specifications. The machine is also equipped with bases suitable for various shrink fit holder sizes, meeting different machining needs.
Supported Sintering Materials:Alloy steel and stainless steel are available as standard. We are also able to manufacture according to specific customer requirements, providing flexible options for different working conditions and application environments.
Precision Electromagnetic Heating System
The core of the shrink fit process lies in temperature control. The Meiwha shrink fit machine utilises electromagnetic induction heating. For optimal heating performance, the induction coil should be positioned approximately 10–15 mm above the mouth of the tool holder before heating.

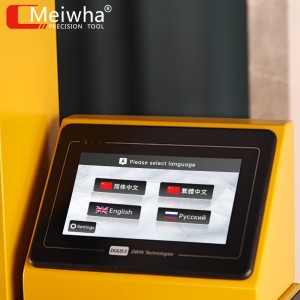

Key system features include precise temperature-controlled heating, a one-touch parameter setting via an LCD touchscreen interface, and simple, intuitive operation. If overheating occurs, the system will automatically stop to provide protection. This design ensures the heating process remains stable and controlled, preventing damage to the material properties of the tool holder.

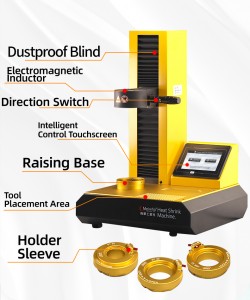

Additional Design Features of the Meiwha Shrink Fit Machine
Multi-spindle adaptability:To accommodate shrink fit tool holders with different spindle interfaces, we provide a range of adaptor sleeves, enabling quick changeover and improving workshop operational efficiency.
User-focused detail design:In daily operation, safety and convenience are equally important. The machine features specially designed anti-roll grooves for tools, allowing multiple commonly used end mills to be securely placed, preventing rolling while ensuring easy access for operators.
Surface treatment:The machine housing is treated with baking paint, galvanising, nickel plating and chrome plating processes. These treatments enhance corrosion resistance while improving overall durability and industrial finish.
In modern CNC machining, precision and stability have become core competitive advantages for manufacturing facilities. The Meiwha shrink fit machine, through precise heating control, flexible specification options and thoughtful design, enables machining enterprises to fully realise the performance advantages of shrink fit tool holders.
As a manufacturing factory, Meiwha remains committed to providing reliable tool clamping solutions, supporting CNC workshops in achieving long-term, efficient and sustainable development.
