In modern CNC machining, the shrink fit tool holder has become a common choice in precision machining, mould and die work, aerospace component manufacturing and other applications requiring a high surface finish. For many users, the advantages of a shrink fit tool holder are already familiar. However, during long-term use, one very common phenomenon is also frequently noticed: after repeated heating cycles, the clamping area at the front of the shrink fit holder gradually turns yellow, brown, blue or even black.
This type of discolouration is very common on the shop floor, but many people do not fully understand what causes it. Some regard blackening as a completely normal sign of use, while others immediately take it as evidence that the holder is no longer serviceable. In fact, neither view is entirely accurate. When a shrink fit tool holder turns black, the underlying causes are usually linked to thermal cycling, surface oxidation, burnt-on residues, temperature control and maintenance practice. Only by understanding these factors properly can users maintain normal service performance while avoiding operating habits that accelerate ageing.
This article focuses on the shrink fit tool holder and explains its working principle, why it gradually darkens after repeated heating, and how correct maintenance can slow the rate of blackening and help preserve clamping stability and service life.

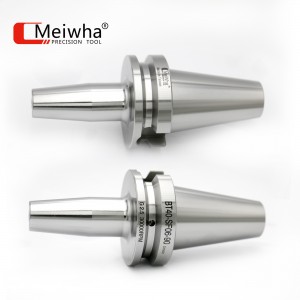

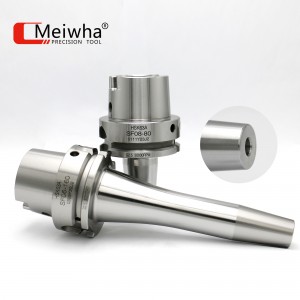

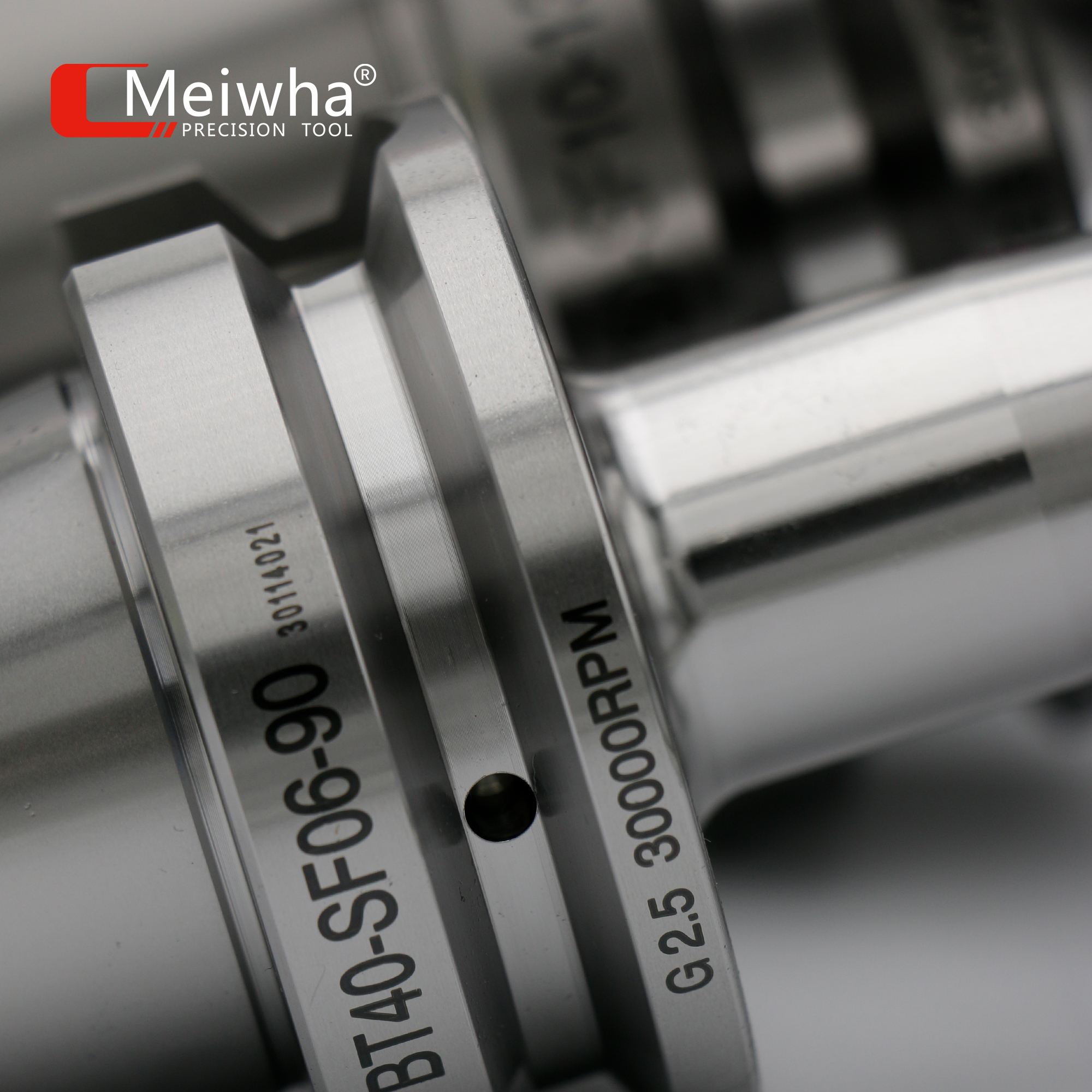

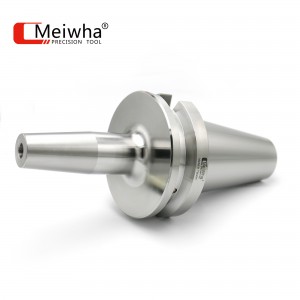

What Is a Shrink Fit Tool Holder?
A shrink fit tool holder is a high-precision toolholder that uses the principle of thermal expansion and contraction to clamp the cutting tool. The clamping bore at the front of the holder is normally slightly smaller than the shank diameter of the tool. During tool assembly, the front end of the holder is heated using dedicated shrink fit equipment so that the bore expands briefly, allowing a standard shank tool to be inserted. Once the holder cools, the bore returns to its original size and creates a high-precision interference fit on the tool.
The essence of a shrink fit tool holder is not mechanical locking, but rather controlled thermal expansion of the holder material itself, followed by contraction to achieve interference clamping. For this reason, shrink fit holders place relatively high demands on the heated zone, heating time, heating temperature, tool shank tolerance and cooling method.
From a machining point of view, shrink fit holders are widely used because they can provide stable clamping in high-precision, high-speed and geometrically demanding machining conditions. However, because they repeatedly go through a cycle of heating, tool insertion, cooling and reheating, the surface condition of the holder inevitably changes over time.
Why Does a Shrink Fit Tool Holder Turn Black After Repeated Heating?
When shrink fit holders turn black, many people assume they have simply been overheated. In reality, blackening is usually not caused by one single factor, but by a combination of several effects acting together.
1. Surface Oxidation Is the Main Cause
During heating, the front section of the shrink fit holder is repeatedly exposed to elevated temperatures. When metal is heated in air, its surface reacts with oxygen and gradually forms oxide layers of varying thickness. As the temperature level, holding time and number of cycles increase, these oxide layers change in colour, typically progressing from pale yellow to brown and blue, and eventually to dark brown or black.
In other words, when a shrink fit tool holder darkens after repeated heating, the root cause is the progressive build-up of oxidation on the heat-affected surface. This is a typical surface change resulting from thermal cycling, not a random form of contamination.
2. Excessive Temperature Accelerates Blackening
If the shrink fit machine is set too hot, or if the heating time is too long, the oxidation rate at the holder nose increases significantly. With a shrink fit holder, heating should be localised, rapid and controlled, not prolonged or excessive. Any thermal input beyond the proper process window will accelerate oxide growth and cause the holder to darken more quickly and more noticeably.
This is why two shrink fit holders of the same type can look very different after several months of service in different workshops. In many cases, the difference is not the holder itself, but whether the heating parameters have been controlled properly.
3. Coolant, Oil and Metal Dust Can Burn onto the Surface
In a real workshop environment, it is difficult to prevent the holder surface from coming into contact with cutting fluid, oil, perspiration, dust, aluminium chips or steel fines. If these residues are not cleaned off in time, they can burn onto the surface during the next heating cycle, forming dark deposits or carbonised layers. These deposits build up on top of the normal oxide film, making the holder appear to blacken faster and often producing uneven colouring.
This is one reason why some shrink fit holders darken uniformly, while others show local black spots, ring marks or patchy discolouration.
4. Frequent Thermal Cycling Causes Progressive Surface Change
The working principle of a shrink fit holder means that it is repeatedly subjected to thermal cycles. Even if every heating cycle is carried out within the normal operating window, oxide films will still accumulate gradually over time. In other words, a shrink fit tool holder does not usually become obviously black after one heating cycle, but rather darkens progressively after many normal cycles of use. This is a natural surface evolution caused by repeated heating. The difference is that a well-maintained holder will change more slowly and more evenly.
5. Incorrect Heating Area Expands the Heat-Affected Zone
Correct shrink fit operation should concentrate the heat as closely as possible around the clamping area. If the heating coil position is wrong, the heated length is too long, or the equipment is used improperly, the heat-affected zone extends farther back from the holder nose. This not only increases the visible darkened area, but can also expose more of the holder body to unnecessary thermal loading, which may affect long-term stability.
For this reason, the extent of blackening can itself provide an indication of whether the heating process is being controlled properly on the shop floor.
How Should a Shrink Fit Tool Holder Be Maintained to Slow Down Blackening?
If you want to slow the rate at which a shrink fit tool holder darkens, the objective is not to prevent all colour change, but to reduce unnecessary oxidation, burnt-on contamination and excessive thermal cycling. The following practices are among the most effective.
1. Strictly Control Heating Temperature and Heating Time
This is the single most important point. A shrink fit holder should always be used in accordance with the heating parameters recommended by the holder manufacturer or shrink fit equipment supplier. It is not good practice to add “a few extra seconds” simply to make tool insertion easier. The higher the temperature and the longer the heating time, the faster the oxidation and blackening.
Correct practice includes:
- heating only the clamping zone
- keeping the heating cycle short and consistent
- avoiding unnecessary repeated heating
- preventing obvious overheating at the holder nose
From a workshop management perspective, the most effective approach is not to rely on operator judgement alone, but to establish standardised shrink fit parameters and a consistent operating procedure.
2. Clean the Holder Surface Promptly After Each Use
Rapid blackening is often directly related to residual contamination on the surface. Cutting fluid, oil, metal fines and hand contamination all accelerate discolouration when the holder is heated again. For that reason, the front section of the holder should be cleaned promptly after each use.
Particular attention should be given to:
- the outer surface of the clamping zone
- the area around the holder nose
- the region that comes into contact with the tool
- any area where oil or coolant tends to collect
Cleaning should be carried out using clean, lint-free wiping materials together with suitable cleaning agents. Abrasive tools that may scratch the surface should be avoided.
3. Keep the Clamping Bore Clean
Many users wipe only the outside of the holder and overlook the bore itself. In practice, if the bore contains oil residue, fine particles or oxide debris, clamping accuracy can be affected and heating uniformity may also suffer, which in turn can accelerate local oxidation. The bore should therefore be checked regularly and cleaned with appropriate tools.
The cleaner the clamping bore is kept, the more stable the shrink fit process will be, and the more predictable the long-term condition of the holder will remain.
4. Use a Proper Cooling Method
After shrink fitting, the cooling method should always follow the recommendation of the equipment or holder manufacturer. In principle, the aim is to allow the holder to return to a stable temperature under controlled conditions, rather than using an aggressive cooling method simply to shorten cycle time. Excessively harsh cooling may increase thermal stress, intensify surface changes and reduce long-term stability.
From a maintenance point of view, a stable, standardised and repeatable cooling method is more important than cooling as quickly as possible.
5. Do Not Store the Holder with Contamination on It
If the holder is stored with cutting fluid, oil film or machining residue still on the surface, those substances will be burnt onto the holder during the next heating cycle, making blackening more severe. For this reason, the holder should not be returned to storage in a dirty condition. It should be cleaned first and only then returned to its rack or storage location.
6. Avoid Unnecessary Empty Heating and Repeated Thermal Cycles
The service life of a shrink fit holder is directly related to the number of thermal cycles it experiences. If there is no actual need to change a tool, the holder should not be heated unnecessarily for testing or trial purposes. Likewise, if a tool insertion fails, repeatedly reheating the holder in quick succession is not good practice. Every unnecessary thermal cycle adds to oxidation and thermal stress.
In other words, reducing needless heating is itself one of the most effective maintenance measures.
7. Use Standard Tool Shanks Within Tolerance
If the tool shank size is out of tolerance, poorly finished or damaged, tool insertion becomes more difficult and the operator is more likely to compensate by increasing the heating time. This pushes the holder into an unnecessarily high thermal load condition. Maintaining proper shank tolerance and surface condition is therefore important not only for clamping accuracy, but also for preventing the holder from being overheated in normal use.
8. Inspect the Holder Nose Regularly
In addition to routine cleaning, shrink fit holders should be subject to a regular inspection routine. The inspection should include:
- the extent and distribution of colour change in the nose area
- any abnormal black spots or burn marks
- the presence of cracks, chips or damage
- scoring, wear or residue inside the clamping bore
- any change in the time required for shrink fitting
- whether runout remains within process limits
Regular inspection not only helps determine whether the holder is still fit for service, but can also reveal the root cause of accelerated blackening, whether that is poor heating control or inadequate cleaning practice.
Why Is “Slower Blackening” the Right Maintenance Objective?
From a professional point of view, it is unrealistic to expect a shrink fit tool holder to remain completely unchanged in colour throughout its service life. As long as it undergoes thermal cycling in air, some degree of progressive oxidation is inevitable. The realistic goal is not to prevent all discolouration, but to achieve the following:
- colour change progresses slowly
- colour change remains even
- the heat-affected zone remains controlled
- blackening does not lead to loss of clamping performance
- contamination does not cause abnormal burnt patches
In other words, good maintenance does not mean making the holder look permanently new. It means allowing it to age in a stable, controlled and predictable manner over time.
Daily Maintenance Recommendations for Shrink Fit Tool Holders
To keep shrink fit holders in better long-term condition, workshops can establish a simple but effective maintenance routine.
After Each Use
- clean the outer surface of the holder nose
- remove residue from the bore and surrounding area
- check for unusual colour change or burn marks
- dry the holder before storage
Weekly or Per Batch
- verify that shrink fit machine parameters remain stable
- check that the coil position is correct
- inspect tool shank size and surface condition
- record any unusual blackening or change in heating time
Periodic Maintenance
- check holder runout
- inspect the clamping area for damage
- screen for cracks, chips or signs of local overheating
- isolate and assess any holder showing abnormal condition
With this type of routine in place, the rate of blackening can usually be slowed significantly, and the overall service life of the holder becomes much more stable.
The shrink fit tool holder plays an important role in high-precision CNC machining. Its gradual darkening during long-term use is mainly caused by the combined effects of repeated heating, surface oxidation, excessive thermal input, burnt-on contamination and cumulative thermal cycling. Blackening does not automatically mean the holder has failed, but it is a direct reflection of the holder’s thermal history and maintenance condition.
If you want the holder to darken more slowly, the key is not simply to clean the surface cosmetically, but to control the process at source: set heating parameters correctly, keep the holder clean, use a proper cooling method, avoid unnecessary thermal cycles, use tool shanks within tolerance and establish a regular inspection routine.
For any workshop that values machining quality and holder service life, proper use and maintenance of shrink fit holders not only slows visible blackening, but also helps preserve clamping stability, machining accuracy and long-term process consistency.
