Threaded holes are extremely common in modern machining, particularly in structural parts, connecting parts and assembly components. Whether in automotive components, electronic hardware, mould accessories or aluminium housings, as long as screws, bolts or other fasteners are involved in the design, threaded hole machining becomes a key process that cannot be ignored. For this reason, the tapping machine is widely used throughout manufacturing.
When many people first come across a tapping machine, they simply understand it as a “thread tapping machine”. In fact, that understanding is not wrong. However, from the perspective of real production, the value of a tapping machine is not limited to simply producing threads in a hole. What truly determines the standard of a tapping machine is whether it can stably control pitch, thread form, hole depth, concentricity and machining cycle time during batch production, while also maintaining tool life and a high yield rate for finished parts.
This article focuses on the tapping machine as its core subject, systematically explaining its working principle, common types, application scenarios and routine maintenance methods, so that our customers can gain a fuller understanding of the role of tapping equipment in modern production.
The Working Principle of a Tapping Machine
In principle, the core of a tapping machine lies in keeping spindle rotation and feed movement in strict synchronisation. This is because thread machining is essentially a synchronised movement process directly related to thread pitch. If the spindle speed and axial feed do not match, problems such as torn threads, incomplete thread form and even tap breakage are likely to occur.
In a standard tapping process, the tap enters the hole under the drive of the spindle and cuts downwards according to the preset pitch. Once the set depth is reached, the spindle reverses and the tap exits the hole, completing one tapping cycle. For a CNC tapping machine, this process can be controlled precisely through programming, thereby ensuring the depth, cycle time and thread quality of every hole.
In actual machining, the stability of a tapping machine usually depends on several key factors. The first is the spindle system, which must provide sufficient synchronisation performance. The second is the clamping system, including tapping holders, tapping chucks or floating holders, all of which directly affect the load on the tap and the final thread quality. In addition, the quality of the pre-drilled hole is equally important. If the hole diameter, roundness, hole depth or chamfer at the mouth of the hole does not meet the required standard, the final thread quality may still be unstable even if the machine itself performs well.
In other words, although the principle of a tapping machine appears straightforward, if threaded holes are to be machined consistently and reliably, the machine, tooling, pre-drilled hole and machining parameters must all be properly matched.
What Are the Common Types of Tapping Machine?
1. Single-spindle tapping machine: This type of machine has a relatively simple structure and is mainly used for tapping single-hole positions or small to medium batch components. Its advantages are cost savings and simple operation, making it suitable for basic production needs.

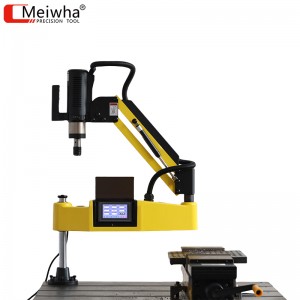

2. CNC tapping machine: A CNC tapping machine is more suitable for workpieces with multiple hole positions, higher repeatability requirements and tighter cycle time demands. By using a control system to manage spindle movement and feed, it can significantly improve thread machining accuracy and consistency.
3. Drill-and-tap machine: This type of equipment can not only carry out tapping, but can also complete preceding operations such as drilling and chamfering. It is suitable for parts that require continuous processing of both pre-drilled holes and threaded holes. It is very helpful for improving cycle time and reducing the number of clamping operations.
Which Industries and Components Are Tapping Machines Suitable For?
From the perspective of application range, tapping machines cover almost all manufacturing industries where threaded hole machining is required.
In the automotive sector, engine accessories, brackets, connecting plates, housings and flange-type parts often require a large number of threaded holes. In the electronics and 3C industries, aluminium housings, small hardware parts, support plates and precision structural components also depend heavily on tapping operations. In the mould and fixture industry, all kinds of plates, locating plates, clamping plates and functional components contain many standard threaded holes. In general machinery manufacturing, equipment brackets, flanges, connecting blocks, transmission parts and assembly bases are also widely processed using tapping machines for threaded hole production.
From the material point of view, tapping machines are commonly used for aluminium alloys, carbon steel, stainless steel, copper alloys, cast iron and some engineering plastics. Different materials place very different demands on the tapping process. For example, aluminium alloys are more prone to built-up edge and burr formation, stainless steel is more likely to generate high cutting resistance and tap breakage risk, while carbon steel places greater emphasis on efficiency and thread stability. Therefore, machine selection and parameter setting often need to be judged in combination with the characteristics of the material.
Routine Maintenance of a Tapping Machine
In many factories, tapping machines operate frequently over long periods. Under such conditions, if maintenance is not carried out properly, the first problem is usually not complete machine failure, but a fluctuation in machining quality. For example, tapping depth may become unstable, thread surfaces may become rougher, tap breakage may occur more frequently, or spindle noise may increase abnormally.
For this reason, attention should be paid in maintenance to checking the operating condition of the spindle system, inspecting wear on chucks and toolholders, removing chips and residual lubricant, checking coolant condition, confirming that the guideways and feed mechanism are properly lubricated, and regularly verifying machine accuracy and repeatability of parameters.
For companies engaged in batch production, proper maintenance is not only about extending machine life, but also about reducing the risk of tool breakage, lowering batch defect rates and controlling downtime costs.
A Tapping Machine is a very important type of threaded hole machining equipment in modern manufacturing. Its core value lies not only in completing internal thread machining, but also in helping companies improve efficiency, control quality and reduce variation in batch production through stable spindle synchronisation, a suitable clamping system and a standardised tapping process.
For parts made from aluminium alloy, steel, stainless steel, copper and other materials, as long as process planning is reasonable, the machine is properly selected and the tooling parameters are suitable, a Tapping Machine can absolutely become a key piece of equipment for improving production stability and delivery consistency.
If a company is evaluating threaded hole machining solutions, or hopes to improve tapping efficiency and thread quality in batch production, then understanding and selecting a suitable Tapping Machine around the actual part requirements is often more meaningful than simply comparing machine specifications.
