The Meiwha power milling chuck is manufactured from 20CrMnTi and heat-treated to HRC 56–60. With clamping accuracy of 0.002–0.005 mm, it offers high rigidity, strong clamping force and excellent stability. It is suitable for a wide range of machining conditions in CNC machining centres. The structure is simple, and disassembly is convenient.
Power milling chuck: the core workholding system for stable clamping in high-speed cutting and heavy roughing
In CNC machining, the stability of the tool holder is a decisive factor for machining efficiency, workpiece surface finish and tool life. In particular, under conditions such as side milling, high-feed rough milling and interrupted cutting, standard holders can be prone to tool slippage, chatter and dimensional variation in the workpiece.
What is a power milling chuck? Which machining pain points does it solve?
The core value of a power milling chuck is mainly reflected in the following three points:
- 1. Tighter clamping and stronger resistance to slippage: during side milling and roughing, cutting forces can more easily cause slight tool movement. By providing higher clamping force and a more rigid structure, a power milling chuck significantly reduces the likelihood of tool slippage or tool pull-out.
- 2. More stable results in batch production: a stable tool holder means less dimensional drift and better, more consistent surface finish. This is especially suitable for mass production and operations with demanding cycle-time requirements.
- 3. Higher rigidity and less chatter: a power milling chuck delivers stronger structural rigidity and stability, helping to suppress vibration and squeal during milling. This improves surface quality and contributes to longer tool life.

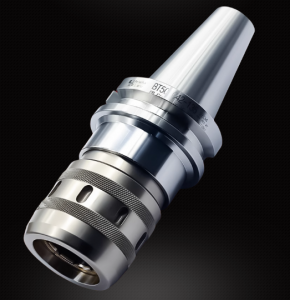

Meiwha BT power milling chucks: BT30/BT40/BT50 cover most mainstream machine spindles.
We offer three BT shank options, suitable for the majority of machining centres (HSK options may also be available).
- BT30 tool holder: suitable for small to medium machining centres and light to medium load conditions.
- BT40 tool holder: the most widely used option, balancing rigidity and versatility.
- BT50 tool holder: aimed more at heavy-duty and high-rigidity requirements, suitable for large depths of cut and high-feed roughing.
Key specifications and material processing: why is it more durable and stable?
- 1. 20CrMnTi material: after heat treatment and surface strengthening, this material achieves strong overall performance, particularly for frequent tool changes and long-term cutting loads.
- 2. HRC 56–60 brings direct benefits: key areas are more wear-resistant, maintaining accuracy over long-term use. It also offers good fatigue resistance, making it better suited to fast-paced production. In heavy milling, it is less likely to suffer clamping-force reduction caused by wear.
- 3. Dynamic balance performance: dynamic balance directly affects vibration, noise, spindle load and heat generation at high speeds. For users running anything from high-speed cutting through to medium and heavy machining, dynamic balance is one of the key indicators of tool holder stability.
Application range
Meiwha power milling chucks are widely used in CNC machining centres and support a range of typical processes, such as: Side milling, Drilling, Milling, Reaming, Tapping, Grinding.
In real production, different industries place different demands on tool holders: some focus on high-speed cutting, while others prioritise heavy roughing. The strength of a power milling chuck is its wide applicability, with particularly strong performance in cutting stability.
Common questions about power milling chucks
Q1. Which applications are power milling chucks suitable for?
A: Side milling, heavy roughing, interrupted cutting, and any operation that is sensitive to chatter or requires high stability—these are where the rigidity and clamping advantages are most apparent.
Q2. What impact does 0.002–0.005 mm accuracy have on machining?
A: Higher accuracy usually means lower runout, more even tool loading and less chatter—improving surface finish and extending tool life.
Q3. How do I choose between BT30/BT40/BT50?
A: Selection is typically based on the machine interface and cutting load: BT30 for light/medium loads, BT40 as the most general-purpose choice, and BT50 for higher rigidity and heavy-duty requirements.
A power milling chuck is often the best high-value choice for stability in CNC machining. With premium materials, high hardness, carburising treatment, high precision and strong dynamic balance performance at its core, the Meiwha power milling chuck provides a reliable tool-holding solution for CNC machining centres, from high-speed cutting through to heavy roughing.
