The Meiwha modular machine vise uses a modular structural design, allowing the fixture to be freely configured according to workpiece size, quantity and production takt requirements. This helps manufacturers increase machining output per unit time without additional investment in extra equipment.
In modern CNC machining, the workholding system directly affects machine utilisation, set-up efficiency and consistency in batch production. For batch production of small and medium-sized parts, traditional single-station vises often struggle to balance efficiency with flexibility.
What is a modular machine vise

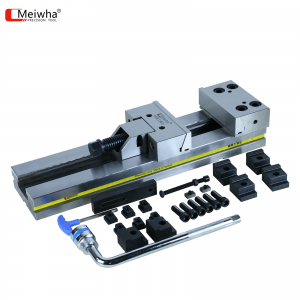

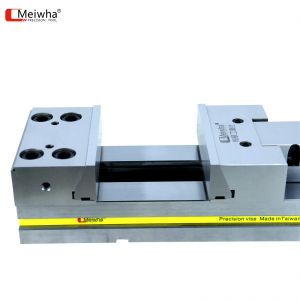

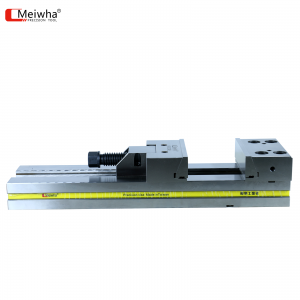

A modular machine vise is a machine tool workholding system based on a modular design concept. Its basic structure typically consists of modules such as a fixed jaw, a moving jaw, intermediate clamping blocks, a leadscrew drive mechanism and base guideways. By combining different modules, the system can be configured to meet specific machining requirements. Compared with a traditional fixed-structure vise, the biggest advantages of a modular machine vise are its scalability and flexible configuration capability. This makes it well suited to high-mix, low-volume machining conditions.
Working principle of the modular machine vise
A modular machine vise typically uses a central leadscrew drive or a modular independent clamping structure. During operation, rotation of the leadscrew drives the moving jaw towards the fixed jaw to clamp the workpiece. When intermediate clamping modules are added, the same workholding set can clamp two or more workpieces at the same time. The advantage of this structure is that multiple workpieces can be machined in the same set-up on the same machine, significantly reducing the number of clamping operations and improving workpiece consistency and yield under the same datum conditions.
Core advantages of the modular machine vise
Modular design to suit different workpiece sizes: a modular machine vise can be flexibly adjusted in structure according to workpiece length, the number of stations and the clamping method. This avoids repeatedly changing an entire fixture set for different workpieces, significantly improving versatility.
Supports automation and flexible manufacturing: in automated machining or FMS flexible manufacturing systems, a modular machine vise can be integrated with standardised fixturing systems, zero-point clamping systems or robotic loading/unloading systems, improving overall line efficiency.
Differences between a modular machine vise and a traditional vise
Compared with a traditional single-station vise, a modular machine vise places more emphasis on system-level workholding capability. A traditional vise is generally better suited to single-part machining or single set-up scenarios, whereas a modular machine vise is designed to achieve multi-station clamping and batch machining on the same fixture platform. For CNC factories pursuing higher takt rates and better machine utilisation, the efficiency gains delivered by a modular machine vise are often far greater than those of a standard single-station vise.
Why more and more CNC workshops are choosing modular machine vises
As CNC machining continues to move towards batch production and automated manufacturing, the role of the vise system in overall capacity is becoming increasingly important. Through modular expandability and multi-station clamping, a modular machine vise enables higher machining efficiency without requiring extra floor space or additional equipment investment. For CNC machining businesses seeking long-term, stable output, a modular machine vise is not only a form of fixture—it is also an important tool for improving production organisation and efficiency.
Overall, with its modular structure, flexible configuration capability and multi-station machining advantages, the modular machine vise is increasingly becoming a key workholding tool for improving machine utilisation and batch machining consistency.
As a CNC tooling manufacturer, we consistently develop and design our products based on real machining scenarios, providing customers with more practical, easy-to-use tools and helping CNC workshops achieve long-term, stable and efficient production operations.
