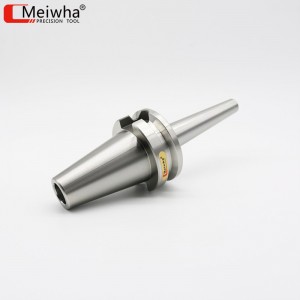

A pull-back tool holder uses a “radial clamping + axial pull-back locking” mechanism to effectively prevent tool pull-out and tool length drift during CNC machining. The Meiwha pull-back tool holder is made from 20CrMnTi and heat-treated to HRC55–58. It delivers clamping runout of ＜0.005 mm, dynamic balance to G2.5, and can reach 25,000 rpm, making it suitable for high-precision and milling applications.
What is a pull-back tool holder?

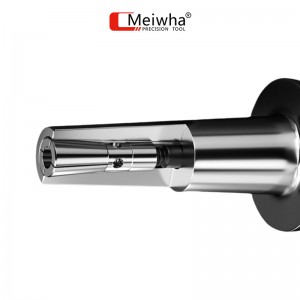

A pull-back tool holder is designed for high-precision, high-load machining. Unlike conventional tool holders, it does not rely solely on radial clamping. Instead, during tightening it generates an axial “pull-back” effect: while the collet clamps, it is also pulled slightly back, achieving more stable axial positioning than a standard holder.
In real machining, this structure directly addresses two common issues: 1) Preventing tool pull-out: it reduces the risk of the tool being “pulled out” under conditions such as slotting, helical interpolation, and heavy rough milling. 2) Stabilising tool length (Z-axis stability): it reduces dimensional drift in batch machining caused by tiny axial movements.
Why are pull-back tool holders recommended for high-precision machining?
In high-speed, high-precision machining, any small error in the tool holder can be magnified, which ultimately shows up as chatter, poor surface finish, and dimensional inconsistency. A pull-back tool holder strengthens clamping stability, axial positioning, and high-speed stability together.

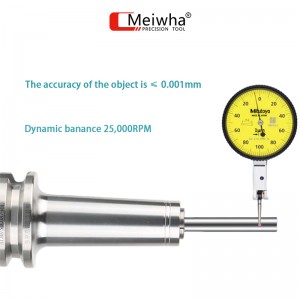

For example, clamping runout below 0.005 mm means the cutting tool is loaded more evenly, reducing local overload that can lead to edge chipping.
Surface quality becomes more consistent, and vibration marks on the workpiece are reduced.
Dynamic balancing to G2.5 with a maximum of 25,000 rpm makes high-speed machining more stable. It also significantly reduces spindle vibration and noise, heat and load at high speed, and dimensional instability and abnormal tool wear caused by imbalance.
Finally, 20CrMnTi improves wear resistance and fatigue performance, making long-term use more reliable. A tool holder needs not only “hardness”, but also stability under repeated tool changes and cutting loads. The direct benefits of using 20CrMnTi in the Meiwha pull-back tool holder are: better wear resistance in key areas, longer service life, and improved stability.
Applicable machining scenarios: which conditions best highlight the advantages of a pull-back tool holder?
- 1. Slotting/deep slotting where the tool can “creep” out over time.
- 2. Helical interpolation for hole-making, and rough pocket machining.
- 3. Long tool overhang where chatter is obvious.
- 4. Batch machining with Z-axis size fluctuation and drift even after tool setting.
- 5. High-speed machining where spindle speed is high and vibration control requirements are stricter.
Meiwha pull-back tool holder installation steps
- 1.Insert the collet into holder.
- 2.Insert the cutting tool into the holder.
- 3.Use a hexagonal wrench to tighten the screw clockwise to lock the tool.
- 4.Rotate counterclockwise to eject the tool and complete the disassembly.
Usage recommendations:
Before clamping, ensure the collet, the tool shank, and the holder bore are clean and free of chips.
Tighten to the recommended torque to avoid damaging the collet or increasing runout due to over-tightening.
After tightening, the pull-back mechanism may cause a slight change in tool length. For critical dimensions, it is recommended to set the tool length after final tightening.
When your machining moves into high-speed, high-precision, or heavy-load stages, the tool holder is no longer just a “connector” — it becomes a key system that affects accuracy, efficiency, and tool life.
With 20CrMnTi material, HRC55–58 heat treatment, ＜0.005 mm clamping accuracy, and G2.5 dynamic balance (25,000 rpm), and backed by ongoing R&D investment and multiple quality inspections to ensure consistency, the Meiwha pull-back tool holder provides a more reliable clamping solution for high-precision, high-throughput machining.
