In modern mould manufacturing and precision component machining, it is not only large or structurally complex workpieces that are difficult to machine. In practice, what really tests process capability is often the small parts that are small in size, high in precision, fine in profile and difficult to clamp. This is especially true in the regrinding of punch pins, punches, electrodes, small mandrels, precision locating pins and moulded die components, where ordinary fixtures often only solve the problem of “holding the part”, but find it difficult to provide rotational accuracy, indexing accuracy and repeatable consistency at the same time. For this reason, the Punch Former has become an important auxiliary fixture in precision grinding workshops.
This article will focus on the Punch Former and systematically explain its working principle, main advantages and suitable workpieces, helping companies to gain a more complete understanding of the practical value of this precision fixture in modern toolrooms and precision form grinding.

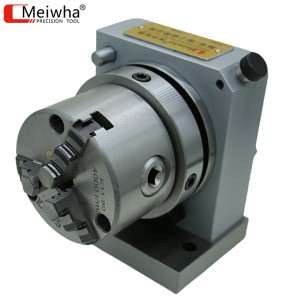

Working principle of Punch Former
From the point of view of its operating principle, the core of the Punch Former lies not in cutting, but in high-precision positioning and highly controllable movement. It usually fixes a small cylindrical workpiece through a precision clamping mechanism, and then uses a high-precision rotating structure and indexing mechanism to allow the workpiece to rotate, index and be formed around a stable centre.
The usual logic is as follows:
First, the punch pin, punch, electrode rod or other small cylindrical workpiece is clamped on the Punch Former. Then, the fixture body ensures that the centreline position of the workpiece is accurate. Next, the rotating mechanism is used to make the workpiece rotate about the predetermined centre, or the indexing device is used to position the workpiece accurately at a specific angle. Finally, cylindrical grinding, end-face grinding, chamfering, arc grinding, polygon grinding or local contour grinding is carried out on a grinder or other finishing equipment.
The key to this structure lies in two points: stable clamping and high rotational accuracy.
For this reason, the Punch Former has very high practical value in the field of precision mould work and the forming of small components.

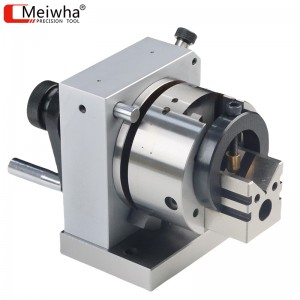

Main advantages of Punch Former
1. High clamping accuracy for small cylindrical workpieces: This is the most important advantage of the Punch Former. For small-diameter workpieces that are difficult to handle consistently with ordinary fixtures, it can provide better centre control and clamping consistency.
2. Strong indexing capability: For small parts that require square forms, hexagons, symmetrical slots or equally divided features, the indexing function makes machining more stable, more efficient and easier to keep symmetrical and consistent.
3. Suitable for precision form grinding: The Punch Former is very well suited for use with a surface grinder or tool grinder for the grinding of end faces, angles, chamfers, radii and polygonal contours, making it a typical auxiliary fixture for form grinding.
4. Beneficial for controlling batch consistency: For a batch of punch pins, a set of small electrodes or a batch of precision locating pins, the Punch Former can significantly improve the consistency of repeated clamping and repeated forming.

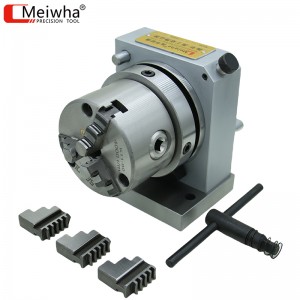

Suitable workpieces for Punch Former:
Punches, punch pins, small mandrels, form pins, precision locating pins, small shaft-type parts, EDM electrodes, small mould components and fine cylindrical precision workpieces.
These workpieces have one common feature: they are usually not large in size, but they require a high standard of angle accuracy, contour quality, radius accuracy, centre accuracy and repeatable consistency, which makes them particularly suitable for assisted machining with a Punch Former.
The Punch Former is a very important type of auxiliary fixture in modern mould manufacturing and precision toolroom machining. Its core value lies not only in clamping small cylindrical workpieces, but also in providing stable and controllable conditions for precision form grinding through its high-precision rotation, indexing and positioning capability, whether for punch pins, punches, electrodes, small shaft-type parts or moulded die components.
For workpieces that require the grinding of arcs, chamfers, polygons, end-face contours and small precision features, as long as the fixture is selected properly, the equipment accuracy is suitable and the operating procedure is followed correctly, the Punch Former can usually become a key solution for improving the machining accuracy and batch consistency of small components.
If a company is evaluating precision fixture solutions, or hopes to improve clamping accuracy, rotational accuracy and indexing consistency in the machining of mould components and small precision parts, then understanding and selecting the right Punch Former for the specific workpiece is often more meaningful than simply comparing fixture prices.
