In the era of efficient CNC machining, High-Feed Milling Cutter, with their unique processing strategy of small cutting depth and high feed rate, have become indispensable tools in fields such as aerospace and mold manufacturing.
In the modern field of mechanical processing, especially in CNC milling, efficiency and precision are the eternal goals that people are constantly pursuing. The High-Feed Milling Cutter Holder is precisely a key tool that emerged for this purpose. Through its unique design concept and processing strategy, it significantly enhances production efficiency and processing quality.

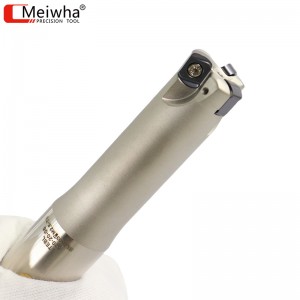

I. The working principle of the feed mechanism for the high-feed cutter
The core of the high-feed cutter lies in the processing strategy of "small cutting depth and high feed rate". The secret lies mainly in the use of a blade design with a small main rake angle (usually 15° - 30°). Unlike traditional blades with a 90° or 45° main rake angle that generate significant radial cutting forces, the small main rake angle design of the fast feed tool holder can direct more of the cutting force towards the axial direction, that is, along the axis of the tool holder towards the center of the machine tool spindle. This mechanical design transformation brings multiple benefits: The huge axial force will "straighten" the tool holder, making it tightly hug the spindle, thereby greatly suppressing vibration and chatter, and making the processing extremely smooth. At the same time, the axial force is borne by the thrust bearing of the machine tool spindle, whose bearing capacity is usually much higher than that of the radial bearing, so it is more friendly to the spindle and can extend the spindle's lifespan. Due to the effective elimination of vibration, the tool can withstand extremely high feed per tooth, thus achieving true "fast feed" cutting.

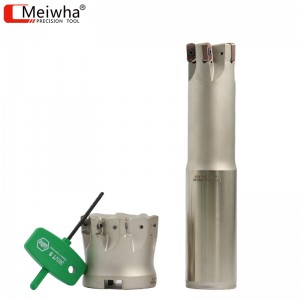

II. The main advantages and features of the high-feed mechanism
The advantages of the high-feed mechanism are mainly reflected in the following aspects:
1. Extremely high metal removal rate: Although the axial cutting depth is relatively shallow (usually ranging from 0.1mm to 1.5mm), thanks to the extremely high feed rate (the feed per tooth can reach 5-10 times that of traditional milling), the volume of material removed per unit time is very large, and the processing efficiency is significantly improved.
2. Excellent surface quality: Smooth and vibration-free cutting can achieve excellent surface finish, and in many cases, the semi-finishing process can be omitted directly.
3. Low power consumption and energy saving: The cutting force is efficiently utilized to remove the material rather than being wasted on vibrations. Therefore, it is more energy-efficient than traditional milling.
4. Extending the lifespan of cutting tools and machine tools: A smooth cutting process reduces the impact and wear on the cutting tools, resulting in longer tool life; the low radial force characteristic also alleviates the burden on the machine tool's spindle, making it particularly suitable for old machines with insufficient rigidity.
5. Advantages of processing thin-walled parts: The extremely small radial force ensures that when processing thin-walled and easily deformed parts (such as aerospace structural components), the workpiece is less likely to deform.

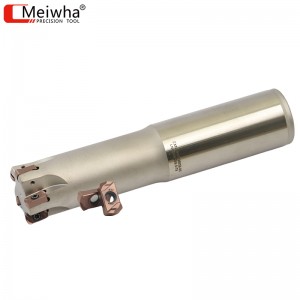

III. Application Scenarios of High-Feed Milling Cutter
The high-feed milling process mainly serves the semi-finishing and finishing stages, and performs exceptionally well in the following scenarios:
1. Large-area milling: Quickly "level" large areas of the surface, with unparalleled efficiency.
2. Chamfering: Quickly remove the remaining material inside the cavity.
3. Slope milling and plunge milling: These methods are highly suitable for performing efficient slope and cutting movements.
4. Difficult-to-machine materials: such as titanium alloys and high-temperature alloys, their low radial force characteristics can reduce workpiece deformation and processing hardening.
5. Mold prototype manufacturing and part processing: Especially in the processing of molds with "islands", it can significantly enhance efficiency.
Processing case reference: Utilizing a fast feed toolholder with a diameter of 26mm and 3 teeth, at a rotational speed of 6000 rpm, the feed speed can reach 4500 - 6000 mm/min. The axial cutting depth is 1mm, and the radial cutting depth is 3mm (for processing the remaining material after the previous roughing operation). It performs exceptionally well when processing materials such as pre-hardened steel.

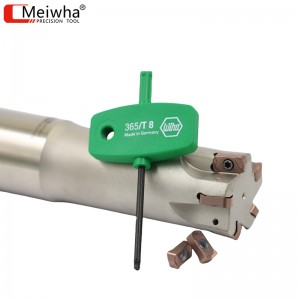

IV. Maintenance and Care of the High-Feed Cutter
Proper maintenance and care are crucial for ensuring the long-term and precise operation of the high-feed cutters. Although no direct maintenance manual is provided in the search results, based on the general principles of precision tool maintenance, the following points should be included:
1. Regular inspection:
Weekly: Inspect the filter of the gas source (if it involves related systems), drain the condensate water. Clean the surface of the knife shaft and the cooling fluid channels.
Monthly: Carefully inspect the key parts of the knife shaft, such as the blade installation groove, the screw holes for clamping, for any wear, cracks or deformation. Check if the clamping screws are in good condition, and look for any stretching or damaged threads.
2. Correct Installation and Storage: Ensure that the blade is installed smoothly and seamlessly in the blade holder to prevent chipping and cutting errors. Use a suitable torque wrench to tighten the clamping screws. Store the blade rod in a dry and dust-free environment, and it is best to use the protective cover provided by the original manufacturer.
3. Balance and calibration of the tool holder: For high-speed applications, regularly check the dynamic balance condition of the tool holder. Ensure that the tool handle part (such as CAT, BT, HSK, etc.) is clean and undamaged, and guarantee the matching accuracy between the tool holder and the machine tool spindle.

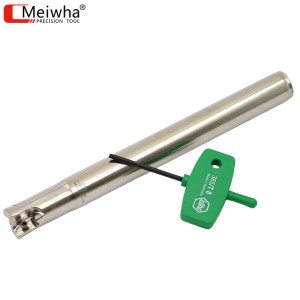

V. Summary
By means of its ingenious small main rake angle mechanical design, the high-feed cutter converts the cutting force into an advantage, enabling smooth, efficient and high-precision machining at high feed rates. It not only significantly increases the metal removal rate and surface quality, but also reduces the burden on the machine tool, thereby expanding the possibilities for processing difficult-to-machine materials and complex structures.
For personnel in the field of mechanical processing, gaining a deep understanding of and correctly applying, as well as maintaining the fast feed tool holder is undoubtedly an effective way to enhance the production competitiveness of enterprises and achieve cost reduction and efficiency improvement. As the manufacturing industry continuously pursues higher efficiency, the fast feed technology will play an increasingly important role.
