Face milling is one of the more fundamental and common operations in modern CNC machining. Whether the work involves mould base plates, fixture plates, flange faces, datum surfaces on box-type parts, or forged parts, castings and plate-type structural components, whenever a part has a large flat surface that needs machining, a high-efficiency face milling solution is essential. For this reason, the shell mill cutter has always been one of the core tools on the CNC milling shop floor.
This article takes the shell mill cutter as its core subject and systematically explains its structure, working principle, main advantages and selection points, helping companies gain a more complete understanding of the practical value of this type of tool in modern CNC face milling.
Basic structure of a Shell Mill Cutter

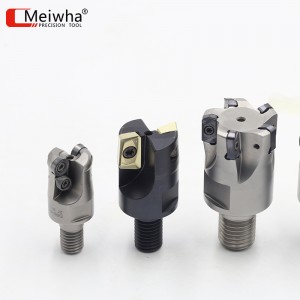

A typical shell mill cutter generally consists of three parts: the cutter body, the indexable inserts, and the cutter arbor interface. The cutter body is usually made from high-strength steel and is responsible for holding the inserts, withstanding the cutting forces and transmitting torque to the cutting edges. The inserts are the parts that actually perform the cutting, and different grades, chipbreaker geometries and coatings can be selected according to the material and machining conditions.
This structure gives the shell mill cutter some very clear engineering characteristics. On the one hand, the cutter body can be reused over a long period. On the other hand, once the inserts are worn, only the inserts need to be replaced, rather than scrapping the entire cutter. For companies engaged in batch production, this structure improves tooling economy and also makes tool maintenance and inventory management more convenient and flexible.
Therefore, from a structural point of view, the shell mill cutter is essentially a high-efficiency milling system with a reusable cutter body and quickly replaceable cutting edges.
Working principle of a Shell Mill Cutter
In terms of working principle, the shell mill cutter rotates at high speed, allowing multiple inserts to engage in cutting at the same time, thereby generating a wide and efficient milling path on the surface of the workpiece. Because the cutter diameter is usually significantly larger than that of a standard end mill, the cutting coverage is much greater.
During actual cutting, the inserts around the cutter periphery and on the face of the cutter work together to remove material across a large surface area. Because there are many cutting edges involved and the cutting coverage is wide, the shell mill cutter can improve roughing efficiency.
This is why, in many large-surface and datum-face machining tasks, the efficiency of a shell mill cutter is clearly higher than that of an ordinary end mill. It is not designed for machining complex contours, but for producing a sufficiently large flat surface in a stable manner within a short time.
Main advantages of a Shell Mill Cutter
1. High efficiency in face machining: This is the most important advantage of the shell mill cutter. Because the cutter diameter is relatively large, the number of cutting edges is higher, and the coverage is wider, it can usually achieve much higher roughing efficiency than a small-diameter end mill.
2. Replaceable inserts reduce cost: Most shell mill cutters use an indexable insert structure. Once the inserts are worn, they can be indexed or replaced individually, without scrapping the whole cutter. This is highly beneficial for batch production and cost control.
3. Wide range of suitable materials: By changing to inserts of different grades and geometries, the shell mill cutter can machine carbon steel, alloy steel, stainless steel, cast iron, aluminium alloy and even some high-temperature alloys, which gives it strong versatility.
Common types of Shell Mill Cutter
From a functional point of view, the shell mill cutter is not a single form, but can be divided into different types according to lead angle, machining purpose and material application.
1. 40° face mill cutter: This is a very common type of shell mill cutter. Its cutting action is relatively smooth, making it suitable for most roughing situations, while balancing efficiency and stability.
2. 90° shoulder mill cutter: This type of cutter is capable not only of machining flat surfaces, but is also suitable for machining vertical step walls, and is therefore commonly seen in applications involving both face machining and stepped features.
3. High-feed cutter: This type is better suited to high-efficiency roughing with shallow depths of cut and high feed rates, and is commonly used in mould roughing and rapid stock removal applications.
Therefore, the shell mill cutter is one of the most frequently used tools in modern CNC face milling. Its core value lies not only in producing a flat surface, but also in providing companies with a higher material removal rate, a more economical tooling approach, and a face machining solution better suited to batch production through its disc-type multi-edge cutting structure.
