In the world of mechanical processing, stable clamping is the cornerstone of accuracy and efficiency.
In the field of mechanical processing, the tool holder serves as the "bridge" connecting the machine tool spindle and the tool. Its performance directly determines the processing quality, efficiency and cost. Among various types of tool holders, the side lock tool holder, with its simple structure, high rigidity and strong clamping force, particularly holds an irreplaceable position in heavy cutting and micro-processing fields.
This article will enable you to gain a deep understanding of the working principle, prominent advantages, applicable scenarios of the side lock tool holder, especially the unique value of the micro-diameter side lock tool holder, and guide you on how to properly maintain this reliable processing partner.

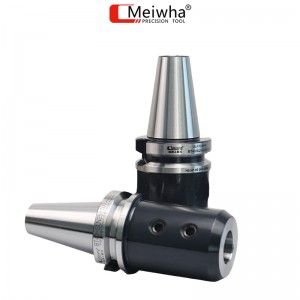

Meiwha Side Lock Tool Holder
I. How the side lock tool holder works: A simple and efficient rigid connection
Side lock tool holder, its most distinctive feature is that there is one or more locking screws (or clamping screws) on the body of the tool handle. Its working principle is not like that of ER spring chuck or hydraulic tool holder, which uniformly contract and grip the tool in a wrapped manner. Instead, it directly clamps the tool handle onto a pre-processed flat surface (commonly known as the "Weldon flat tail") by radially locking the screws from the side.
This seemingly simple and forceful method achieves a purely rigid connection. The tremendous pressure provided by the locking screws firmly fixes the tool in the tool holder hole, effectively preventing the tool from rotating or being pulled out axially during the processing.
For the micro-diameter side lock tool holder, the basic principle is the same, but the design and manufacturing are more precise. They are specifically used to hold extremely small-diameter (such as φ0.5mm - φ6mm) cutting tools. Similarly, the shank of the micro-diameter tool must have a corresponding miniature flat tail. The high-precision manufacturing ensures that even at such a small scale, reliable clamping force can be provided.
II. The Outstanding Advantages of Side Lock Tool Holder
The side lock tool holder has withstood market tests and its value is reflected in several aspects:
Extremely high rigidity and powerful torque transmission capability: Due to the rigid contact between solid surfaces, the side lock tool holder can withstand extremely large radial cutting forces, making it highly suitable for heavy cutting and rough machining. Its torque transmission capability far exceeds the clamping methods that rely on friction.
Simple structure, durable and reliable: Fewer parts, relatively simple manufacturing process, resulting in lower purchase cost and maintenance cost. No complex internal structure, less prone to damage, and long service life.
Outstanding repeat positioning stability: Once locked, the tool hardly moves, especially during long periods of heavy cutting, providing better stability.
The micro diameter side lock tool holder specially designed for micro-processing has solved the problems of instability and brittleness of small-diameter cutting tools in deep cavity processing and micro-finished part milling. They provide far superior clamping rigidity and torsional resistance compared to spring clamps, ensuring processing stability.
Compliant with international standards: The side lock tool holder usually follows international standards such as DIN 1835B and DIN 6535 HB, ensuring its versatility and interchangeability.

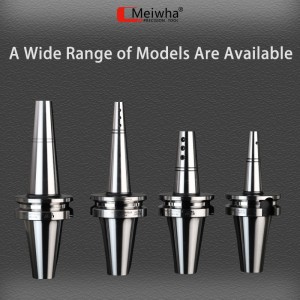

Meiwha micro diameter side lock tool holder
III. Application Scenarios of Side Lock Tool Holder
The advantages of the side lock tool holder determine its typical application fields:
Heavy-duty rough machining: For materials that are difficult to machine, such as steel parts and cast iron parts, when large amounts of machining allowance are required and large cutting depth and high feed rate are needed.
High-torque cutting: For example, when using large end mills (with a diameter of 20mm or larger) for slot milling and face milling.
Deep cavity processing: Whether it is the deep cavities of large parts or the deep cavities of precision molds, the micro-diameter side fixed elongated tool handle can provide excellent rigidity under the long-to-diameter ratio, preventing the tool from vibrating.
Micro processing: The "micro diameter side lock tool holder" is an excellent tool for micro-scale processing of precision electronic components, medical device parts, jewelry, etc.
The semi-finish machining requires a relatively moderate level of absolute precision, while placing great emphasis on rigidity and reliability.
IV. Maintenance and Care of Side Lock Tool Holder
Proper maintenance and care are crucial for ensuring that the side lock tool holder maintains its performance over an extended period and prolongs its service life.
1.Cleaning: Before each knife installation, it is essential to thoroughly clean the inner cavity of the knife handle and the handle part of the knife itself, ensuring that there are no dust, chips, or oil residues remaining. Even tiny particles can affect the positioning accuracy and damage the mating surfaces during locking.
2. Inspection and replacement of locking screws: Regularly check if the locking screws are worn, stretched or cracked. Make sure to use the high-strength special screws provided by the manufacturer and replace them in time. It is recommended to tighten them using a torque wrench at the recommended torque to avoid being too tight or too loose.
3. Check the fit between the inner hole of the handle and the flat tail: Inspect whether there are scratches, wear or rust on the inner hole of the handle. For micro-diameter handles, pay special attention to checking whether the internal miniature flat tail is intact.
4. Proper Storage: When the knife handle is not in use, it should be cleaned and coated with anti-rust oil. Then, it should be stored in a dry and dust-free dedicated knife holder or tool box to prevent bumps and impacts.
5. Special care for the micro-diameter side lock tool holder: Due to its more precise structure, operation requires greater care. Avoid any impacts and ensure the use of appropriate tools and torque for locking.
V. Summary
Side lock tool holders, especially the micro-diameter side lock tool holders, are indispensable and crucial tools in modern mechanical processing. They perfectly embody the concepts of "simplicity is beauty" and "rigidity is strength".
When making a choice, if you encounter challenges such as heavy cutting, deep cavity processing or micro machining, and do not have high requirements for extreme precision and ultra-high rotational speed, then the side lock tool holder is undoubtedly your reliable, cost-effective and efficient option.
By correctly understanding its characteristics and properly maintaining it, it will continue to provide a solid foundation for your processing and production.
