On machining shop floors, grinding non-standard profile tools has always been a challenge. As demand for custom tooling grows, such as divided milling cutters, radius cutters, ball end cutters, conventional regrinding methods have become an efficiency bottleneck.
Why Is Non-Standard Tool Grinding So Difficult?
The main difficulty with conventional equipment lies in tool setting and indexing. Because tool shapes are irregular, operators can only align the tool by eye. This introduces visual error, and complex indexing parameters make manual adjustment easy to get wrong. Operators end up working by feel, so scrap rates stay high and output depends on how experienced the operator is.
How Does Probe-Based Automatic Tool Setting Replace Manual Visual Alignment?
The key to solving this is giving the machine the ability to sense precisely and control automatically. The Meiwha MW-YH20MAX (latest model) Automatic Grinding Machine addresses exactly this pain point through contact-type probe automatic tool setting combined with four-axis linkage technology.

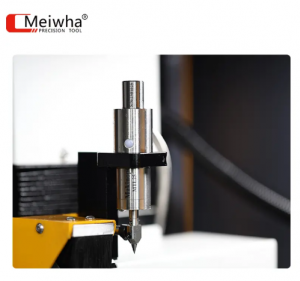

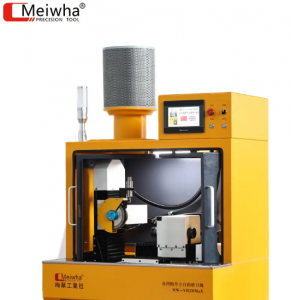

Before grinding, the machine's contact-type probe physically touches and measures the tool blank. Based on the probe feedback, the system automatically identifies the tool's actual spatial position and instantly establishes a precise coordinate system. The probe does the measuring, so no one has to line the tool up by eye — the visual error of manual tool setting is gone. It also handles multi-edge selection and automatic calibration, leaving the operator's hands free. With the position set, the high-precision servo motor and four-axis linkage system control each indexing angle, so the grinding wheel follows the correct path and manual indexing errors no longer come into play.
Which Tools Can It Handle?

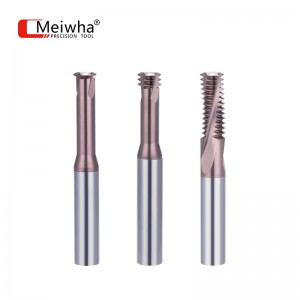

Beyond precise automatic tool setting, the machine also excels in applicability. It can grind various non-standard tools and unevenly divided milling cutters, and easily handles ball end cutters, radius cutters, drill. Operators simply work on the intelligent touchscreen — no complex programming required. One-click switching between multiple modes matches different tool types for fast, accurate automatic grinding.
If you are looking for a more budget-friendly option that still handles non-standard tool grinding, the Meiwha MW-YH20A is worth considering. Driven by Meiwha's in-house developed control system, it supports the regrinding of multiple tool types — including end mills, corner radius cutters, ball nose cutters, chamfer tools, and drills — and its hollow spindle design removes any tool length restriction. An integrated dust extraction system also keeps the shop floor clean.
If your shop is facing low regrinding efficiency or high scrap rates on non-standard tools, contact Meiwha for a detailed technical proposal or to schedule a trial grinding session. Let automatic tool setting technology solve your complex tool processing challenges.
Post time: Oct-19-2026
