In modern CNC machining, thread machining not only affects the assembly quality of a workpiece, but also has a significant impact on the reliability, sealing performance and service life of the part. For aluminium alloys, steel parts, stainless steel, titanium alloys and various high-value precision components, thread quality should not be judged merely by whether the thread can be produced. Greater attention should also be paid to dimensional consistency, thread form integrity, surface finish and machining stability. For this reason, the Thread Milling Cutter has become a key tool in an increasing number of CNC thread machining applications.
This article will provide a systematic introduction to the main types of Thread Milling Cutter, its application advantages and the key points to consider when selecting one.
What are the common types of Thread Milling Cutter?

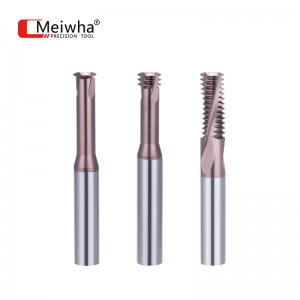

In practical use, a Thread Milling Cutter is not a single type of tool, but can be divided into several types according to thread profile structure, machining method and intended application.

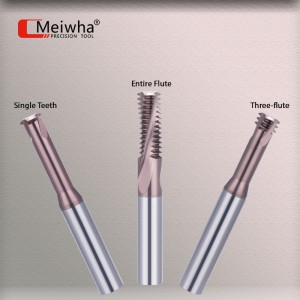

1. Single-tooth type: A single-tooth thread milling cutter usually has only one or a few cutting profiles, and forms the complete thread gradually through multiple helical interpolation passes. One very clear advantage is its strong versatility. Under the same thread pitch, one tool can usually cover several different diameters, which makes it highly practical for small-batch and multi-specification machining.
2. Full-profile type: A full-profile thread milling cutter has a more complete thread profile and can complete thread formation in one pass or in only a few passes. Its advantage is higher efficiency, making it more suitable for fixed-specification and batch thread machining tasks.

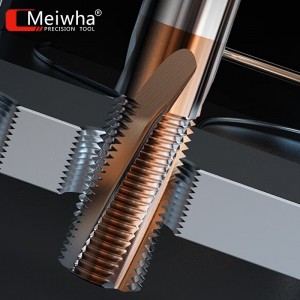

3. Internal thread milling cutter: This type of Thread Milling Cutter is mainly used for machining various internal threads, and is particularly suitable for threaded holes in blind holes, deep holes and difficult-to-machine materials.
4. External thread milling cutter: An external thread milling cutter is used for machining shafts, fittings or workpieces with special external threads, and is commonly found in mechanical parts, aerospace components and high-precision connectors.
5. Combined type: Some thread milling cutters combine chamfering, grooving, drilling or thread milling functions into one integrated design, in order to reduce tool changes and improve cycle efficiency. These tools are more commonly used in high-efficiency CNC machining solutions.
What are the main advantages of Meiwha Thread Milling Cutter?
1. Thread size is easier to fine-tune: This is one of the very important advantages of the Meiwha Thread Milling Cutter. Because the thread is produced through a programmed toolpath, the actual size can be fine-tuned through the programme and tool compensation. This is particularly valuable for high-precision threaded holes.
2. Reduced scrap risk for high-value workpieces: For expensive parts, complex mould components or high-precision parts, once a tool breaks inside the hole, the cost of recovery is often very high. Using the Meiwha Thread Milling Cutter can usually reduce this type of risk.
What should be the main focus when selecting a Thread Milling Cutter?
If your company is planning to purchase a Thread Milling Cutter, it is advisable not to look only at tool diameter and price, but to make a combined judgement based on the actual workpiece and machine conditions.
1. Thread type: First of all, it is necessary to clarify whether an internal thread or external thread is required, and whether it is metric, imperial or a special thread form. Different thread types determine both the cutter profile and the direction of tool selection.
2. Material: Different materials place different requirements on the tool substrate, coating and cutting-edge design. The selection logic is not the same when machining aluminium alloys, carbon steel and stainless steel.
3. Relationship between hole diameter and tool diameter: Especially in internal thread machining, the cutter diameter must leave sufficient space for helical interpolation, otherwise normal machining cannot be carried out at all.
Thread Milling Cutter is a very important type of precision tool in modern CNC thread machining. Its core value lies not only in producing threads, but also in providing manufacturers with greater dimensional control, better process flexibility and more stable performance for demanding machining requirements through helical interpolation.
For difficult-to-machine materials, blind holes, large threads, high-precision threads and high-value parts, as long as machine conditions and process planning are properly arranged, a Thread Milling Cutter can usually provide a more flexible and more controllable machining result than traditional methods.
If a company is evaluating thread machining solutions, or hopes to reduce tool breakage risk, improve thread quality and strengthen batch consistency in CNC machining, then understanding and selecting the right Thread Milling Cutter for the specific part is often more meaningful than simply comparing tool prices.
