In the high-precision machining industry, 5-axis technology has become the gold standard for complex parts. It allows manufacturers to machine multiple sides of a component in a single setup, drastically reducing lead times.
However, even the most advanced 5-axis machine is only as good as its weakest link—the workholding solution. A common pitfall many shops face is relying on standard, manual vises for 5-axis operations. This approach often leads to performance bottlenecks, inaccurate cuts, and wasted revenue.
The solution? Ditch traditional vises and invest in a self-centering vise. In this article, we break down exactly why self-centering vises are not just an option, but a necessity, for modern 5-axis machining centers.
1. The Unique Demands of 5-Axis Machining
First, let's clarify the core challenge: 5-axis machining requires consistent, precise, and interference-free clamping.
Unlike 3-axis machining, 5-axis operations involve tilting the spindle and workpiece at extreme angles. This means the workholding device must:
- Maintain extreme runout and concentricity tolerances.
- Avoid tool interference with the vise body during multi-sided cuts.
- Ensure repeatability across batches of parts.
Standard vises, which rely on manual jaw adjustment, simply cannot meet these rigorous demands. They introduce too much room for human error and inconsistency.
2. Why Traditional Vises Fail in 5-Axis Applications
Here are the three main reasons why using a standard vise in a 5-axis environment is a bad investment:
- Inaccurate Jaw Alignment: Manually adjusting each jaw to center the workpiece is time-consuming and prone to error. Even a tiny misalignment can result in poor concentricity or out-of-tolerance features, leading to scrap parts.
- Restricted Tool Access: The bulkier design of traditional vises often causes collisions (tool-to-vise interference) during deep cuts or high-angle tilting. This limits your ability to machine certain features and can even damage your tooling or spindle.
- Slow Setup Times: In a 5-axis cell, efficiency is key. Manual jaw setting adds precious minutes to each job change, which adds up over a year.

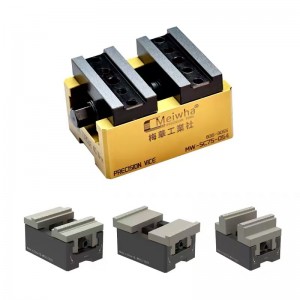

A self-centering vise solves all the above problems by design. Here's how it transforms your 5-axis performance:
- Instant, Repeatable Centering:
The mechanism automatically centers the workpiece within 0.00mm (or the industry's smallest tolerance). No more guessing, no more manual jaw adjustment. This ensures that every part, from the first to the 1000th, is perfectly centered.
- Minimal Interference:
Engineered with a low-profile and compact jaw design, self-centering vises maximize tool access. They allow your cutting tools to reach deep into complex geometries without collisions, unlocking the full potential of your 5-axis machine.
- Uniform Pressure & Superior Surface Finish:
By applying equal clamping force from both sides, these vises prevent workpiece distortion. This is critical for machining thin-walled parts, delicate materials, or precision components where surface finish is non-negotiable.
4. Real Results: The Bottom Line for Your Shop
Switching to a self-centering vise isn't just about better technology—it's about better business.
- Higher Yield Rates: Fewer scrap parts mean more profit per run.
- Faster Cycle Times: Reduced setup times and uninterrupted machining lead to higher throughput.
- Competitive Edge: You can take on more complex, high-value jobs that your competitors can't handle with outdated equipment.
5.Conclusion
In the world of 5-axis machining, precision and efficiency are non-negotiable. A standard vise is a bottleneck waiting to happen. A high-quality self-centering vise is the foundation upon which you can build a world-class machining operation.
