In modern CNC manufacturing, efficiency and accuracy are no longer determined solely by machine performance or cutting tools. As production moves toward higher precision, smaller batch sizes, and greater flexibility, workholding and setup strategy have become critical factors in overall process performance.
The Zero-Point Positioning System provides a standardized, repeatable solution that fundamentally changes how machining references are established and maintained.
What Is a Zero-Point Positioning System?
A Zero-Point Positioning System is a standardized mechanical interface that enables fast, accurate, and repeatable positioning of fixtures or workpieces on machine tools. Instead of manually aligning each part, the system defines a fixed reference point at the fixture level, allowing setups to be repeated with micron-level accuracy.
By transferring the responsibility of alignment from the operator to a precision mechanical interface, zero-point systems significantly reduce setup time and positioning errors.

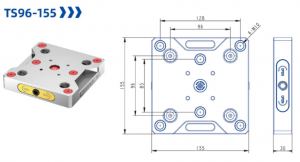

Meiwha CNC Zero-Point Positioning System
Why Traditional Setup Methods Limit Productivity
Traditional clamping and alignment methods rely heavily on manual indication and operator experience. Each time a workpiece is removed, flipped, or transferred between machines, the machining zero must be re-established. This process is time-consuming, inconsistent, and prone to cumulative errors—especially in multi-sided machining.
As part complexity increases and production shifts toward high-mix, low-volume manufacturing, these limitations become a major bottleneck.
Meiwha CNC Zero-Point Positioning System
Core Objectives of Implementing a Zero-Point System
The adoption of a zero-point positioning system is driven by several strategic goals:
- · Reducing machine setup and changeover time
- · Minimizing machine downtime and non-cutting time
- · Eliminating operator-related positioning errors
- · Standardizing fixtures across multiple processes
- · Reducing routine workload for highly skilled personnel
- · Improving overall production flexibility and efficiency
Rather than optimizing a single operation, the system improves the entire machining workflow.
Applicable Machining Processes
Zero-point positioning systems are suitable for a wide range of machining operations, including:
- · CNC milling
- · Conventional turning
- · CNC turning
- · Electrical discharge machining (EDM)
A unified positioning interface allows fixtures and references to be shared across different machine types, creating a consistent and scalable production environment.
Enabling Multi-Sided Machining on 3-Axis Machines
Meiwha CNC Zero Point Positioning System
Analysis of part drawings and process routes often reveals that most components require machining on multiple sides. While four-axis and five-axis machining centers are ideal for single-setup machining, they are typically heavily loaded and reserved for high-precision tasks.
By equipping three-axis machining centers with zero-point positioning systems, manufacturers can achieve high-accuracy, fast-change multi-sided machining without increasing dependence on advanced machines. This approach balances machine utilization and maximizes overall shop productivity.

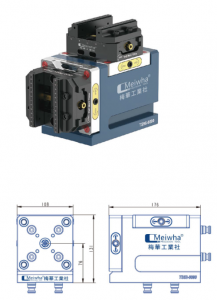

Zero-Point System with Vise-Based Workholding

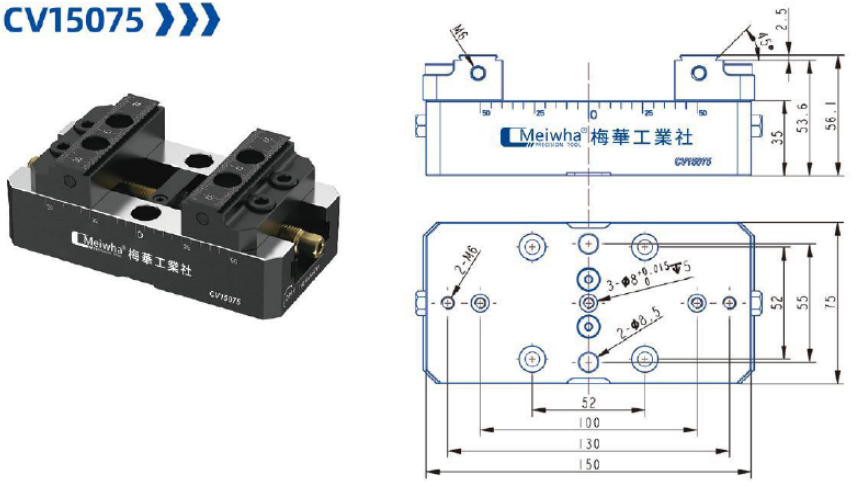

A common implementation combines a zero-point system with precision vises. This configuration allows machining in two planes and supports 360-degree rotation in 90-degree increments, with repeatability up to 0.005 mm.
Roughing and primary operations are performed in a horizontal position. Without removing the workpiece from the vise, the entire assembly can be repositioned vertically for face machining. This method enables five-sided machining while maintaining a consistent reference.
The vise also functions as a transfer fixture, allowing the workpiece to move seamlessly between milling, turning, and EDM processes.
Structural Stability and Positioning Accuracy
Using multiple pull studs to secure fixtures to the zero-point system increases rigidity and prevents micro-movement during machining. Compared with single-stud solutions, this configuration provides greater stability and allows full rotational positioning.
To further reduce setup time, multiple work coordinate systems can be predefined in both the CNC controller and CAM software, eliminating repeated manual re-zeroing operations.
Meiwha CNC Zero Point Positioning System
Productivity Through Parallel Setup
Zero-point positioning systems enable offline setup, where multiple vises or fixtures are prepared outside the machine. Installing a prepared fixture onto the zero-point interface typically takes only seconds, dramatically reducing non-cutting time and improving machine utilization.
This parallel workflow allows skilled personnel to focus on programming, process optimization, and quality control rather than repetitive setup tasks.
Zero-Point Solutions for Cylindrical Workpieces

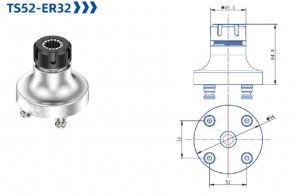

For cylindrical parts, zero-point systems can be combined with ER collet clamping. This configuration allows turned components to be transferred directly to milling or EDM machines without redefining the machining reference.
The result is consistent accuracy across processes and reduced setup complexity, particularly for bar-type or rotational components.
Unified Zero-Point Interfaces Across the Workshop

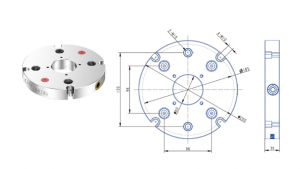

Zero-point positioning systems can be adapted to different machine platforms using dedicated base plates and angle plates, including:
- · Milling machine tables
- · Lathe faceplates
- · EDM machines
This unified interface strategy allows fixtures to move freely between machines while maintaining the same reference, significantly improving process flexibility.
System-Level Benefits
When viewed as part of the overall manufacturing system, a zero-point positioning solution delivers:
- · Faster setup and changeover
- · Higher repeatability and positioning accuracy
- · Reduced dependency on operator skill
- · Improved utilization of existing machines
- · A scalable foundation for automation and palletization
A Zero-Point Positioning System is more than a workholding upgrade—it is a strategic investment in process stability and manufacturing efficiency. By standardizing the machining reference and enabling fast, repeatable setups, the system allows manufacturers to respond to increasing demands for precision, flexibility, and productivity.
If you are looking to reduce setup time, improve machining consistency, and standardize your workholding strategy, contact us. Our engineering team can help you integrate a zero-point positioning system tailored to your specific machining requirements.
