I. An Engineering Perspective on CNC Setup Accuracy and Efficiency

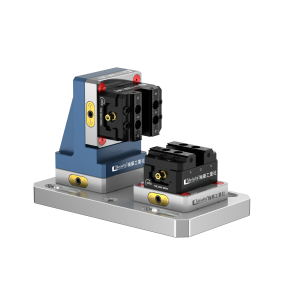

Meiwha CNC Zero Point Positioning Systems
In CNC machining, setup accuracy and repeatability define the ceiling of achievable quality and productivity. While cutting tools and machines often receive the most attention, the method used to locate and reference the workpiece plays an equally decisive role. Traditional clamping methods and zero-point positioning systems represent two fundamentally different approaches to defining the machining reference, and understanding their differences is essential for modern process planning.
II. Defining the Machining Reference: Two Different Philosophies

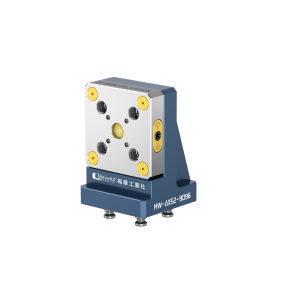

Meiwha CNC Zero Point Positioning Systems
Traditional clamping methods establish the machining reference at the workpiece level. Each time a part is loaded into a vise, fixture, or custom jig, the operator must manually align, indicate, and set the workpiece relative to the machine coordinate system. The machining zero is recreated for every setup, making the process inherently dependent on operator skill, setup time, and environmental consistency.

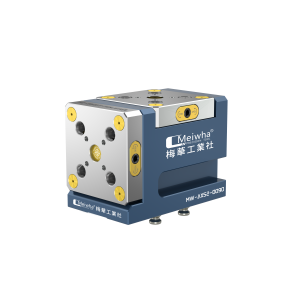

A zero-point positioning system shifts this responsibility away from the workpiece and into a mechanical interface. The machining reference is defined at the fixture or pallet level through precision-ground locating elements and controlled clamping forces. Once established, this reference can be repeated reliably across multiple setups, machines, and production cycles without re-indicating the part.
III. Accuracy and Repeatability in Real Production
From an engineering standpoint, the most critical difference between the two approaches lies in repeatability. Traditional clamping can achieve acceptable accuracy in single setups, but dimensional consistency degrades as parts are removed, flipped, or transferred between fixtures. Each re-clamping introduces small deviations that accumulate into measurable geometric error.

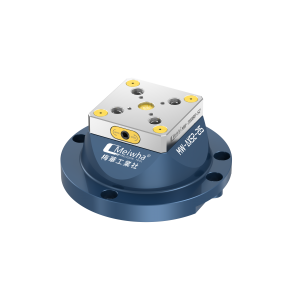

Zero-point positioning systems rely on defined geometric constraints and preloaded clamping mechanisms to reproduce the same reference location repeatedly. This mechanical certainty allows parts or fixtures to be removed and reinstalled while maintaining the original coordinate system within a few microns. In multi-operation or multi-machine workflows, this repeatability becomes a decisive advantage.
IV. Impact on Multi-Sided and Multi-Axis Machining
As machining moves from simple three-axis operations to four-axis and five-axis strategies, the stability of the reference system becomes increasingly critical. Traditional clamping methods often struggle to maintain consistent references when rotational axes are involved, as small alignment errors become magnified during indexing or simultaneous motion.

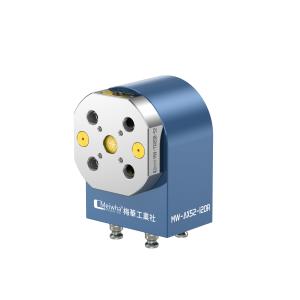

Zero-point positioning systems provide a stable and predictable foundation for rotary tables and multi-axis setups. By ensuring that fixtures return to the same reference position every time, the system reduces kinematic uncertainty and simplifies CAM programming, simulation, and verification. This stability is particularly valuable in complex parts requiring multiple orientations or repeated rework cycles.
V. Setup Time, Flexibility, and Process Scalability
Traditional clamping methods require manual alignment and verification for each setup, which increases non-cutting time and limits production scalability. While acceptable in low-volume or prototype work, this approach becomes a bottleneck in high-mix, low-volume environments where frequent changeovers are unavoidable.
Zero-point positioning systems decouple setup preparation from machine uptime. Fixtures can be prepared offline and exchanged on the machine in minutes, significantly reducing downtime. This capability enables flexible production planning, faster changeovers, and smoother transitions between part families without sacrificing accuracy.
VI. Human Dependency vs Mechanical Certainty
Another key distinction lies in the role of the operator. Traditional clamping relies heavily on experience and judgment, which introduces variability across shifts and personnel. Even well-trained operators cannot eliminate subtle differences in alignment and clamping force.
Zero-point positioning systems replace subjective alignment steps with deterministic mechanical interfaces. Once installed and qualified, the system produces consistent results regardless of who performs the setup. This reduction in human dependency improves process robustness and simplifies training requirements.
VII. Cost Considerations and Long-Term Value
At first glance, traditional clamping appears more economical due to lower initial investment. However, when evaluated over the full production lifecycle, the hidden costs of longer setup times, scrap risk, rework, and limited scalability become apparent.
Zero-point positioning systems require higher upfront investment but deliver long-term value through reduced setup time, improved consistency, and enhanced production flexibility. For manufacturers operating in precision machining, frequent changeovers, or automated environments, the return on investment often becomes evident within a relatively short period.
VIII. Integration with Automation and Digital Manufacturing
Modern CNC manufacturing increasingly emphasizes automation, palletization, and digital process control. Traditional clamping methods, which depend on manual intervention, form a natural barrier to these advancements.
Zero-point positioning systems are inherently compatible with automated loading, robotic handling, and pallet systems. By standardizing the interface between the machine and the fixture, they enable seamless integration into unattended and lights-out machining strategies.
X. Choosing the Right Approach
From an engineering perspective, the choice between traditional clamping and a zero-point positioning system should be driven by process requirements rather than habit. For simple, single-setup parts, traditional clamping may remain sufficient. For complex parts, multi-sided machining, frequent changeovers, or automated production, zero-point positioning systems provide a level of control and predictability that traditional methods cannot match.
Traditional clamping methods and zero-point positioning systems represent different stages in the evolution of CNC setup technology. Traditional clamping focuses on immediate practicality, while zero-point positioning emphasizes repeatability, scalability, and long-term process stability.
As CNC machining continues to move toward higher precision, greater flexibility, and increased automation, zero-point positioning systems are becoming less of an optional upgrade and more of a foundational technology.
If you are evaluating your current setup strategy or planning to upgrade your machining process, contact us. We can help assess whether a zero-point positioning system is the right solution for your production environment and integrate it into your existing tooling and workholding strategy.
