In CNC machining production, workholding systems are not limited to vises—vacuum clamping is also widely used. For block-type parts, traditional vises and strap clamps usually meet clamping requirements. However, for sheet parts, large flat components, non-magnetic materials and light-cutting finishing applications, conventional mechanical clamping often leads to interference, deformation, or low set-up efficiency. It is against this background that vacuum clamping has gradually become an important workholding solution in modern CNC workshops.
The value of vacuum clamping is not in delivering extremely high local clamping force, but in providing more uniform support and a more open machining area through surface suction. This workholding logic gives it advantages that are difficult for traditional fixtures to replace under specific conditions.
What is a vacuum clamping system?

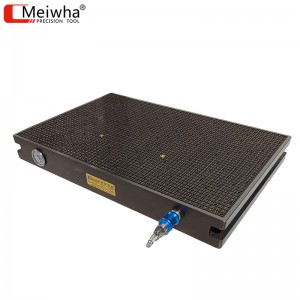

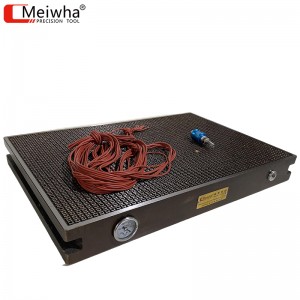

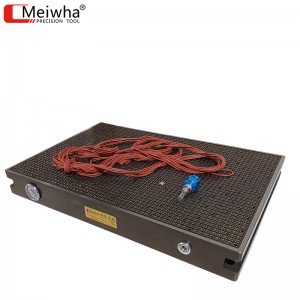

A vacuum clamping system is a workholding solution that fixes the workpiece using negative-pressure suction. It typically consists of a vacuum table, sealing grooves with sealing rings, vacuum channels, a vacuum source, and filtration/protection features. During operation, the vacuum system evacuates air from the sealed suction area, creating a pressure differential. External atmospheric pressure then presses the workpiece against the table surface to achieve stable holding.
Unlike a vise or strap clamps, vacuum clamping does not rely on local mechanical force to grip the workpiece. Instead, it establishes support through large-area suction. This is precisely why it is well suited to workpieces that are not able to tolerate concentrated local clamping forces.
Core value of vacuum clamping in CNC machining
From an engineering perspective, the most obvious characteristics of vacuum clamping are: a more open clamping method, more uniform load distribution, and a more deformation-friendly approach to workholding. For workpieces where it is important to keep the machining surface as unobstructed as possible, vacuum suction can significantly reduce interference from traditional fixtures, making toolpath planning more flexible.
At the same time, because the workpiece is supported over a large area, the load distribution is usually more uniform than with point clamping. This is particularly helpful for controlling deformation and maintaining flatness in sheet parts. For a CNC workshop, this means not only a more convenient set-up method, but also greater machining consistency and fewer process compromises.
Differences between vacuum clamping and traditional mechanical fixtures
In essence, vacuum clamping and mechanical fixtures such as vises and strap clamps represent two completely different workholding logics. Traditional mechanical fixtures rely more on local clamping force, making them better suited to block-type workpieces and heavy cutting conditions. Vacuum clamping, by contrast, relies on surface suction and pressure differential, making it better suited to large-area, thin-walled workpieces that are prone to deformation.
Therefore, in real selection decisions, vacuum clamping is not a universal replacement for all fixtures, but a high-efficiency workholding tool designed for specific workpieces and machining conditions.
Why more and more CNC workshops are adopting vacuum clamping
As CNC machining continues to develop towards higher precision, lightweight designs and automation, more and more workpieces are no longer well suited to traditional high-clamping-force methods. In particular, for aluminium sheet parts, composite-material parts, decorative components and precision panel machining, the low-deformation, open-access and high-efficiency advantages of vacuum clamping are becoming increasingly apparent.
For modern machining businesses, vacuum clamping is not just a way of holding a part—it is more like a process capability. It enables workshops to achieve more stable machining quality and higher set-up efficiency for certain workpieces, while also providing a better foundation for automation and flexible manufacturing.
As a manufacturer, we always understand and optimise workholding solutions based on real machining scenarios. We are committed to providing clamping systems that are better suited to production environments, helping CNC workshops achieve long-term, stable and efficient operation while maintaining machining quality.
