Meiwha Vacuum Chuck MW-06A for CNC Process

Short Description:

Grid Size: 8*8mm

Workpiece Size: 120*120mm or more

Vacuum Range: -80KP – 99KP

Application Scope: Suitable for adsorbing workpieces of various materials (stainless steel, aluminum plate, copper plate, PC board, plastic, glass plate, etc.)


Product Detail

Product Tags

Meiwha Vacuum Chuck MW-06A:

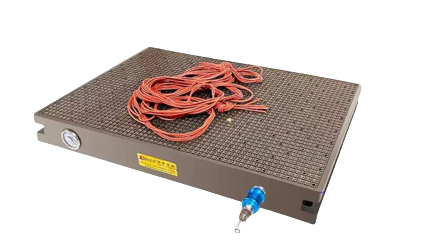

Vacuum Chuck

1.Welding, cast iron integral casting, no deformation, good stability and strong adsorption.

2.The thickness of the suction cup is 70mm, the bottom accuracy is 0.01mm, and the super adsorption force can be achieved within 5 seconds of turning on the machine.

3.It can easily absorb various material parts (Steel plate, aluminum plate, copper plate, PC board plastic, glass plate, wood, etc.)

4.The surface accuracy of the suction cup is 0.02mm, the flatness is good, and the adsorption force is table.

5.There is a vacuum generator inside, which can keep the pressure for 5-6 minutes after power off.

6.The surface of the vacuum chuck is equipped with threaded holes and positioning holes to fix the workpiece. The processing liquid cannot enter the inside of machine, and it is waterproof, oil-proof and corrosion-proof.

Model size Suction hole Suction hole Dia Vacuum Dis Pressure range Needed pump power Min workpiece
MW-3040 300*400 280 12mm 500L/min -70~-95Kpa 1500W 10cm*10cm
MW-3050 300*500 350 12mm 500L/min -70~-95Kpa 1500W 10cm*10cm
MW-4040 400*400 400 12mm 500L/min -70~-95Kpa 2000W 10cm*10cm
MW-4050 400*500 500 12mm 500L/min -70~-95Kpa 3000W 10cm*10cm
MW-4060 400*600 620 12mm 500L/min -70~-95Kpa 3000W 10cm*10cm
MW-5060 500*600 775 12mm 500L/min -70~-95Kpa 3000W 10cm*10cm
MW-5080 500*800 1050 12mm 500L/min -70~-95Kpa 3000W 10cm*10cm
More:If you need the Vacuum Chuck with special sizes. You can contact us for special-ordered.

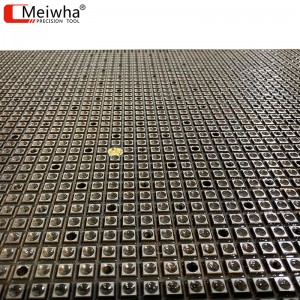

Vacuum Chuck Machine Tools



It is convenient for clamping and positioning. The disk surface is evenly distributed with  ⌀5 threaded holes and M6 screw holes. It is designed with 8*8 small squares, with large friction coefficient. and the workpiece is not easy to move. It can be adsorbed at a high speed for 1 second, and it can reach the working state instantly, with stable suction.



High end cast iron die casting, imported grinding machine repeatedly grinding, precision up to a trace. high precision, anti-seismic, anti-corrosion, not easy to deformation.

The maximum suction can reach-98kpa, and the pressure maintaining range can be set freely.

Vacuum Chuck For CNC Machining

Meiwha Vacuum Chuck Suction power description

1.For example, if the effective suction area of a suction cup is 300cm², its maximum suction force is 300kg. If the vacuum degree is -90kPa, the actual suction force is 300*0.9=270kg.

2.Reasons for Influence:

(1) The higher the vacuum level, the better.

(2)The larger the effective adsorption area, the better.

Product size: Machining can reach at least 120*120*3mm for small pares. For larger parts, it can be processed in batches. (Efficiency can be increased by more than 30%)

Vacuum Chuck
