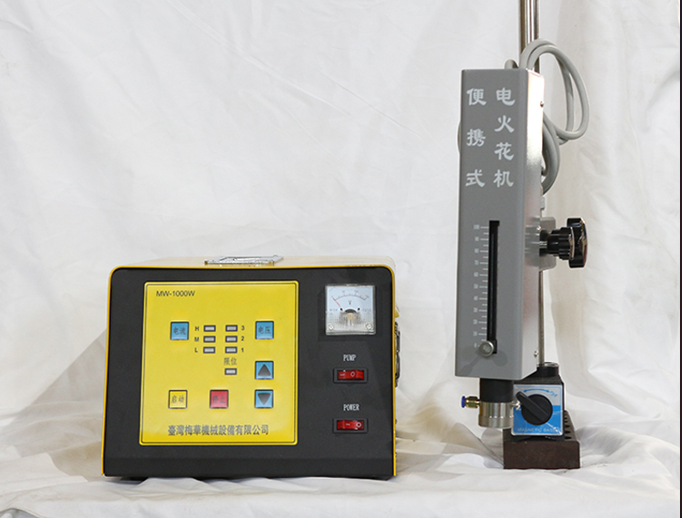

Portable EDM machine

Short Description:

EDMs abide by the principle of Electrolytic Corrosion to remove broken taps, reamers, drills, screws and so on, no direct contact, thus, no external force and damage to the work piece; it also can marking or dropping non precision holes on conducting materials; small size and light weight, shows its special superiority for large workpieces; working liquid is ordinary tap water, economical and convenient.


Product Detail

Product Tags

Features:

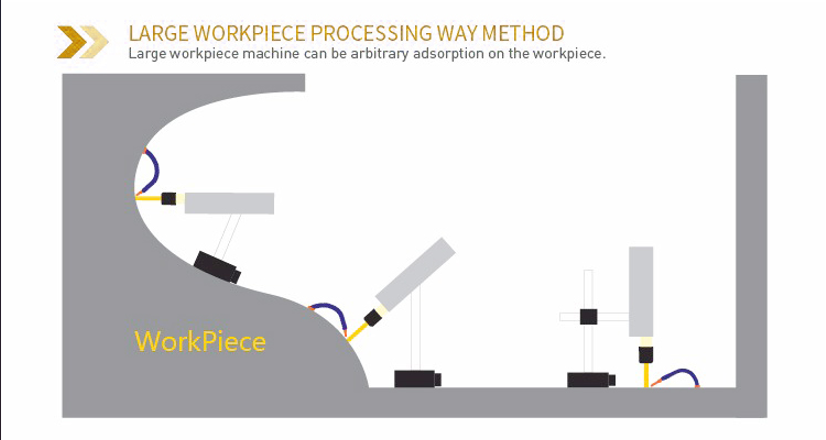

1.Protable EDM machine can fast remove broken taps, drill, drift, etc., without damaging to the work piece. What applies a magnetic base and a cross stand to support the head, it can be placed at any position, adjust the processing direction comprehensively. It can be applied on any size of work-pieces, especially effective for large machine tools.
2.The short hole processing speed is about 1mm/min.
3.The work head with vibration function.

EDM

Product Description:

Working principle

Use workpiece and electrode contact broken tap from short-circuit spark, corrosion broken tap, remove broken tap bit by bit.

Application

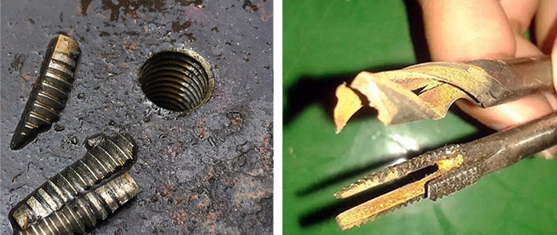

1.Remove broken in workpiece diameter tap, drill, reamer, tools/tools such as screw, plug gauge;

2.Can be working in any size, shape of workpieces.

3.Various angles, different shapes from surface of electrodes, processing multiple holes.

4.Processing no precision requirement hole.

5.Especially suitable for difficult to processing large workpieces in EDM machine.

EDM Tap machine
Electrical Discharge Machining SD-1000D/High Power Broken Screw Extractor/EDM Tools

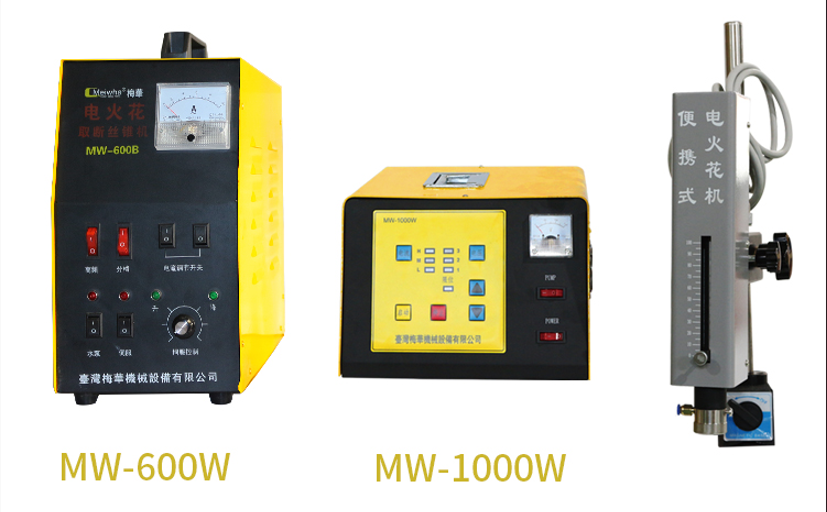

Modle MW-600W MW-1000W
Input AC220V 50/60HZ AC220V 50/60HZ
Power 600W 1000w
Voltage 80V 80V
Electrode range 0.5mm-10mm 0.5mm-10mm
Manual travel 310mm 310mm
Automatic travel 60mm 60mm
Processing speed ≥1mm/min ≥1.5mm/min
Size 380*200*320mm 380*200*320mm
Weight 15KG 17KG

Standard Accessories:

1.Power Line

2.Copper Electrode

3.Transmission Line

4.Water Line

5.Electrode Clamp

6.Connector

EDM machine
Machine Tools

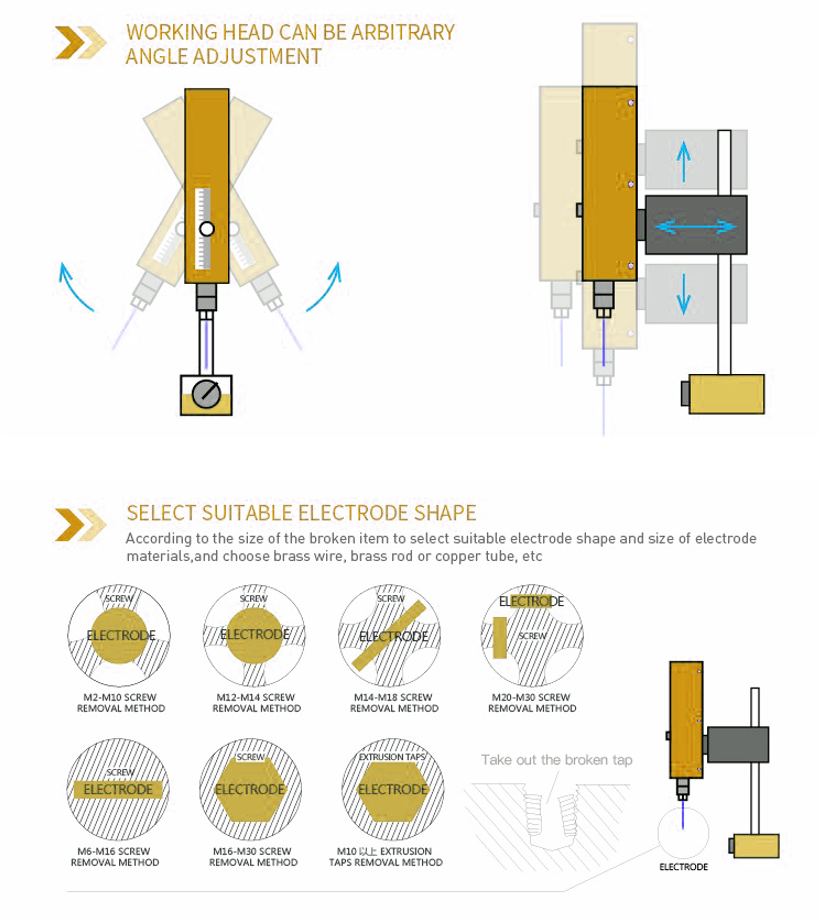

The choice of electrode(broken tap, screws, for example)

According to the size of the broken item to select suitable electrode shape and size of electrode materials, and choose brass wire. brass rod or copper tube, etc

Break things Standard Recommend electrode Notes
screw M3 Ø1.5 shotr electrode and reduce the jitter
screw M4 Ø2.0
screw M6 Ø3.0
screw M8 Ø4.0
screw M10 Ø5.0
screw M12 Ø6.0
screw M14 7x2 Sheet electrode
screw M16 8x2
screw M20-30 10x2 The tap above M20 can be processed by several times
bolt M3-20 Recommended method: make a "-" shape deep groove and screw down with screwdriver

Welding Effect

Electrolytic Corrosion principle, no damage to work-piece

1.Remove broken in workpiece diameter tap, drill, reamer, tools/tools such as screw, plug gauge;

2.Can be working in any size, shape of workpieces.

3.Various angles, different shapes from surface of electrodes, processing multiple holes.

4.Processing no precision requirement hole.

5.Especially suitable for difficult to processing large workpieces in EDM machine

TAP
