In CNC machining, the role of the tool holder is not simply “mount the tool and you’re done”. In reality, this step directly affects machining accuracy, surface finish, cutting stability, tool life, and the efficiency of the entire production line. For many machining businesses, what truly separates machining quality is not only the machine parameters themselves, but whether the tooling system is properly matched to the application.
There are many common tool holders, and hydraulic holders and ER holders are two of the most widely used types. The former is typically regarded as a higher-precision, more premium solution, while the latter is the classic choice that balances cost and versatility. Both can clamp milling tools, but their working principles, performance characteristics, cost structures and suitable applications differ quite clearly.
For experienced operators, the real question is not “which one is better”, but what each of them is actually good at: under which conditions should a hydraulic holder be prioritised, and when might an ER holder be the more suitable option?
This article provides a systematic analysis of hydraulic tool holders and ER tool holders from the perspectives of working principles, pros and cons, and real-world applications.
How do hydraulic tool holders and ER tool holders differ in working principle?
In terms of working principle, the difference between hydraulic and ER tool holders is very clear. Hydraulic holders rely on an internal hydraulic medium to transmit clamping force. When the hydraulic chamber is pressurised, the clamping zone applies a relatively uniform, wrap-around grip on the tool. The focus is not simply on increasing local clamping force, but on achieving high-precision clamping and smoother cutting through a more balanced force distribution.
ER holders use mechanical elastic clamping. When the nut is tightened, the ER collet converts axial force into radial contraction to grip the tool shank. This approach is straightforward in structure, easy to maintain, and convenient for quickly changing tools of different sizes on the shop floor. However, because it involves multiple mating interfaces—holder, collet and nut—the system has more potential sources of error.
From this perspective, the two are not simply “interchangeable alternatives”, but two different technical routes. Hydraulic holders place more emphasis on precision, uniform loading and stable cutting, while ER holders place more emphasis on versatility, flexibility and cost control.

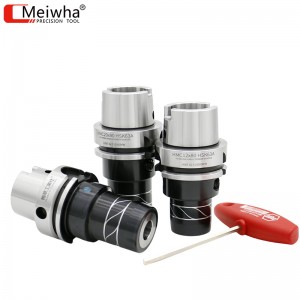

What are the main advantages of hydraulic tool holders?
Hydraulic tool holders are widely favoured in high-precision machining, mainly for the following reasons.
First is clamping accuracy. Because hydraulic clamping distributes force more evenly and loads the tool more symmetrically, hydraulic holders typically offer better concentricity and lower runout. This is particularly important for precision milling, contouring, hole machining and applications with demanding surface-finish requirements.
Second is damping capability. In real machining, many surface-pattern issues and abnormal tool wear problems are not caused solely by cutting parameters, but by vibration in the tool-holding system. Hydraulic holders often perform better than standard ER holders in this respect, as they can absorb vibration to a certain extent and improve cutting smoothness. For certain workpieces, hydraulic holders tend to deliver more stable results.
In addition, the operating process of hydraulic holders is relatively straightforward, and tool change efficiency is comparatively high. Compared with shrink-fit holders, they require no additional heating equipment. Compared with conventional mechanical clamping holders, they achieve a good balance between precision and usability.

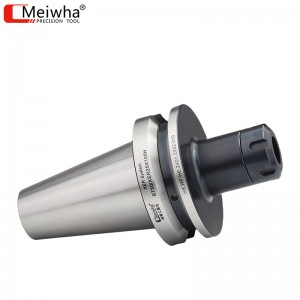

What are the advantages of ER tool holders?
The fundamental reason ER holders remain the most common tool holder in machining is their strong overall adaptability.
First, the biggest advantage of ER holders is their versatility. A single ER holder can cover a range of tool shank diameters simply by changing the collet. This means a business does not need dedicated holders for every tool diameter, reducing inventory pressure and improving flexibility in tool management.
Second, the purchase and maintenance costs of ER holders are relatively low. Whether it is the holder body, collets, nuts or replacement parts, overall costs are usually more controllable than with hydraulic holders. For small and medium-sized machining businesses, this cost advantage is very tangible.
In addition, ER technology is mature, the supply chain is well established, market standards are consistent, and operators are generally familiar with it. The barriers to on-site replacement and maintenance are low. For general-precision operations, ER holders have very few weaknesses.
So from a practical perspective, although ER holders are not the ultimate performance solution, they are often the most straightforward and widely adopted option for shop-floor implementation.
Which machining scenarios suit hydraulic holders and ER holders respectively?
For finishing operations, thin-walled parts, contour finishing, applications with high surface-finish requirements, long tool overhang cutting, and vibration-sensitive conditions, hydraulic holders are usually worth prioritising. Especially when a business has high requirements for dimensional consistency and process stability, hydraulic holders tend to show their value more clearly.
For general milling, drilling, tapping, high-mix low-volume machining, budget-sensitive projects, or scenarios requiring frequent tool changes across different shank diameters, ER holders are often the better choice. Their strength is not ultimate precision, but broad applicability, flexible configuration and cost efficiency.
Many mature factories do not treat this as an either-or decision, but adopt a tiered configuration: ER holders for general stations, and hydraulic holders for critical finishing stations. This approach controls overall investment while placing high-performance holders where they deliver the most value.
Both hydraulic tool holders and ER tool holders have their advantages in CNC machining, but they serve different objectives.
Therefore, for machining businesses, the question worth considering is not “which is better”, but whether your machining conditions require precision first or versatility first, whether you need local high performance or overall low cost. Different answers lead to different selection strategies.
