In modern CNC machining, machining quality is determined not only by the machine tool itself, but also by the tooling system, the workholding solution and the capability extension provided by machine accessories. For many box-type parts, valve bodies, flanges, mould components, fixture plates and complex structural parts, the real machining difficulty often lies not on the front face, but on the sides, at an angle, or in areas that are difficult to reach directly. For this reason, the CNC Angle Head Tool Holder is becoming an increasingly important auxiliary system in more and more high-efficiency machining applications.
This article will focus on the CNC Angle Head Tool Holder and systematically explain its working principle and application advantages, helping companies gain a more complete understanding of the practical value of this angle head holder system in modern CNC machining.
Working principle of CNC Angle Head Tool Holder

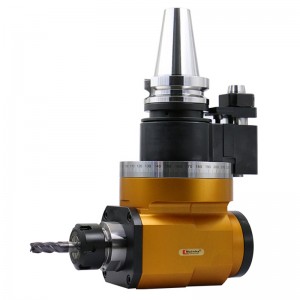

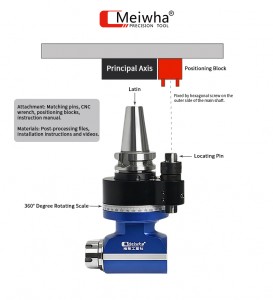

In principle, the core of the CNC Angle Head Tool Holder lies in changing the direction of power output. After the machine spindle provides the input rotation, the transmission mechanism inside the angle head transfers this power to the output end and changes the direction from vertical to horizontal, or to a specific angle. The most common form is the 90° angle head, which converts the spindle’s original downward output into lateral cutting output.

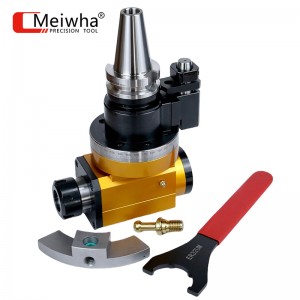

Structurally, this type of system usually completes the transmission of power through bevel gears or other precision transmission mechanisms. Once a drill, tap or end mill is mounted at the front end, the machine can complete side-hole machining, side-slot machining, side-face milling or local feature machining that would otherwise be difficult to access directly, all under a single clamping setup.
In other words, the real value of the CNC Angle Head Tool Holder lies not simply in turning the direction of the tool, but in expanding the machine’s workable machining space from a single direction to multiple directions through controlled angular transmission.
Main application advantages of CNC Angle Head Tool Holder
1. It can reduce part flipping and repeated clamping: This is one of the most direct advantages of the CNC Angle Head Tool Holder. For parts with many side holes, side slots and side milling faces, many operations can be completed in the same setup after using an angle head, thereby reducing the time loss and accumulated error caused by flipping the workpiece.
2. It extends the machining direction capability of the machine: For equipment without full five-axis capability, the CNC Angle Head Tool Holder is a highly practical extension solution. Although it cannot completely replace five-axis machining, it is already sufficient to meet the requirements of many side drilling, tapping and light side milling operations.
3. It is more suitable for machining complex structural parts: Many box parts, valve bodies, connectors and aerospace structural parts have holes and features in several different directions. The Angle Head Tool Holder helps the machine access these areas more flexibly, reducing process compromises caused by limitations in spindle direction.
The CNC Angle Head Tool Holder is a highly valuable type of auxiliary tooling system in modern CNC multi-face machining. Its core value lies not only in changing the spindle output direction, but more importantly in helping companies reduce the number of workpiece flips, improve one-clamping completion rate, improve positional accuracy between features on multiple faces, and enhance overall production efficiency by extending machining direction capability.
For box-type parts, valve bodies, flange parts, fixture plates and other components with features in multiple directions, as long as the process is planned properly, the angle head is correctly selected, and the machine conditions are suitable, the CNC Angle Head Tool Holder can usually become a key solution for improving side machining capability and production stability.
If a company is evaluating multi-face machining solutions, or hopes to reduce workpiece flipping, improve efficiency and enhance machining consistency under existing equipment conditions, then understanding and selecting the right CNC Angle Head Tool Holder around the specific part is often more meaningful than simply comparing accessory prices.
