In day-to-day CNC machining, we often see three common types of tool holder: shrink-fit holders, hydraulic holders and ER collet holders. They are indeed widely used, but if we look more closely at their working principles, performance limits, application scenarios and investment costs, the differences are substantial. Many workshops fall into a common misunderstanding during selection—trying to use one single tool-holding system to cover every operating condition. In reality, each holder type has its own distinct advantages as well as limitations. A more sensible approach is to configure a combination based on the machining objective.
This article provides a structured comparison of these three tool holder types from the perspectives of principle, accuracy, rigidity, versatility, tool-change efficiency, cost and suitable applications.
Comparison of core tool holder performance
Most readers will already be familiar with the clamping principles of these three types, so this article will not explain them in detail. Instead, we will compare their core performance directly.
1. Clamping accuracy and runout performance:
For high-precision machining, tool holder runout directly affects the tool tip path, tool wear, surface roughness and dimensional consistency of the workpiece.

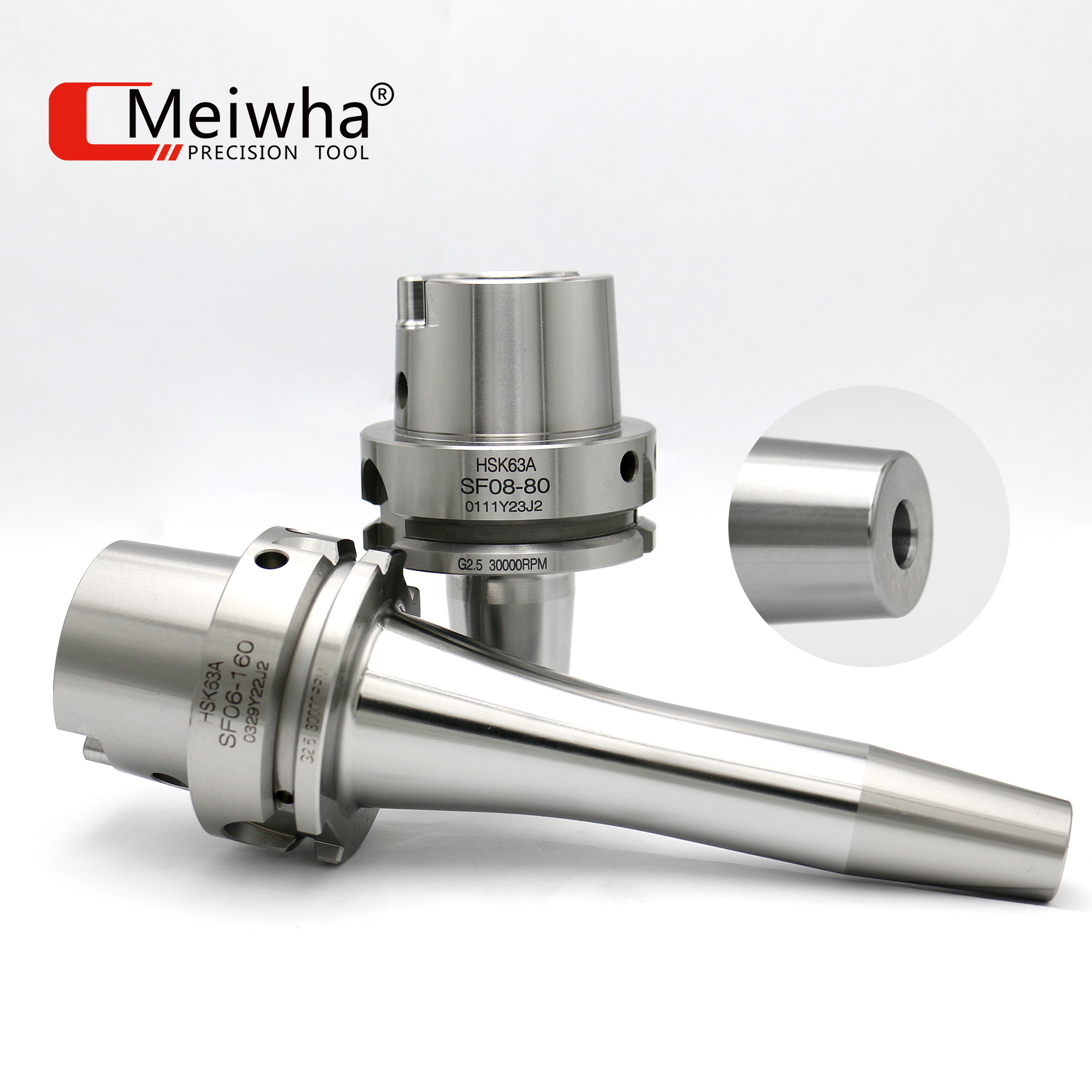

Shrink-fit holders typically deliver excellent concentricity. Because the clamping structure is simple and contact between the tool and holder is uniform, there are fewer sources of eccentricity. As a result, shrink-fit holders are highly favoured for high-speed finishing, small-diameter tooling and applications with demanding surface-finish requirements.

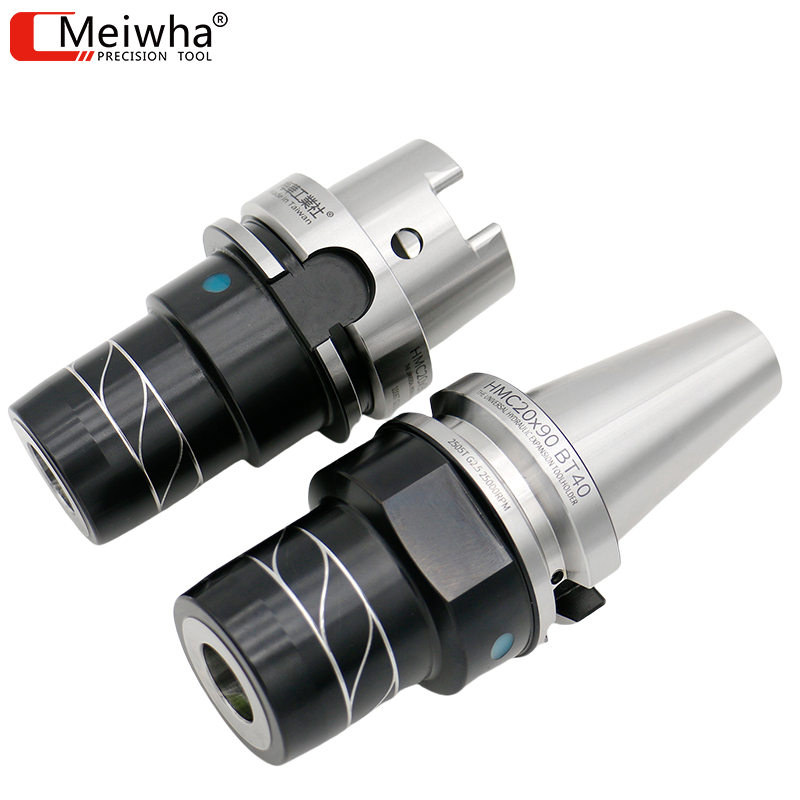

Hydraulic holders are also high-precision clamping systems. Because hydraulic force transmission is relatively uniform, their runout control is usually very good, and they can maintain stable clamping accuracy even after repeated tool changes.

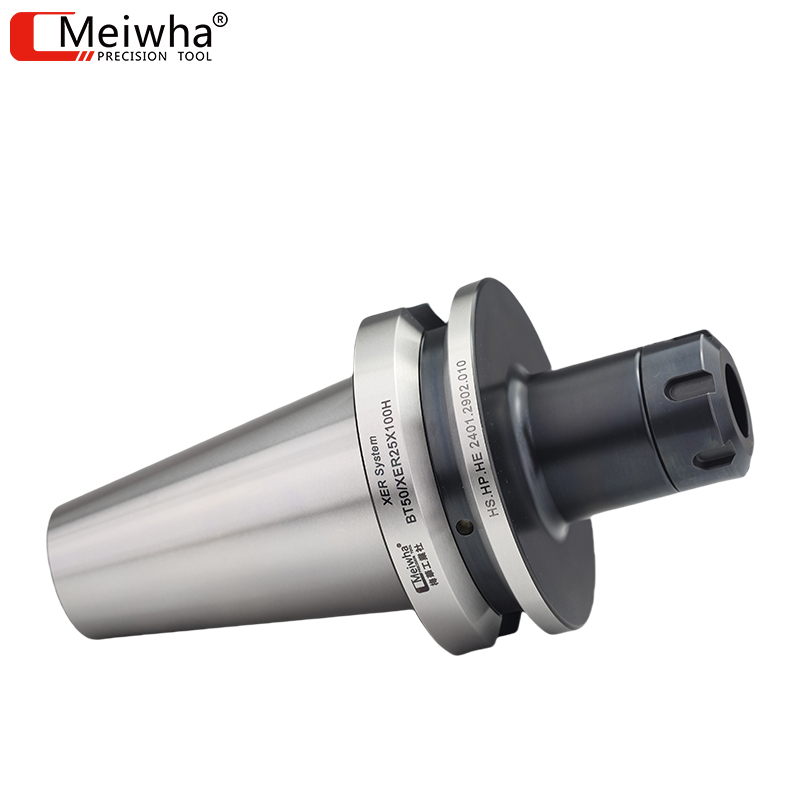

ER holders are extremely common in general machining. However, because they involve multiple mating components—holder, collet and nut—the number of potential error sources is higher. In practice, runout performance depends heavily on collet quality, assembly condition and day-to-day maintenance. Therefore, in ultra-high-precision applications, ER holders are typically less stable than shrink-fit and hydraulic holders.
So, in terms of accuracy, the usual ranking is: shrink-fit holder ≈ hydraulic holder ＞ ER holder
However, it is worth noting that shrink-fit holders tend to be “high rigidity + high precision”, while hydraulic holders are more “high precision + better damping and operational convenience”.
2. Rigidity and cutting stability:
In CNC machining, rigidity determines the tool’s resistance to deflection under load, and it also determines system stability in high-speed, high-feed, long-reach or complex toolpath machining.
Shrink-fit holders have a clear advantage here. Because there is no slotted collet structure and no additional force-transmission components, the front end of the holder is more integral and the clamping zone is more compact, so rigidity is generally higher. For small-diameter tools, high-speed milling, deep cavity machining and finishing side walls, shrink-fit holders often make it easier to maintain stable cutting conditions.
Hydraulic holders also typically offer good rigidity, but their advantage is more about being “stable and balanced” rather than achieving the absolute maximum rigidity. They combine high accuracy with a degree of damping, which makes them very well balanced in many finishing applications.
ER holders, on the other hand, are more of a general-purpose solution. They can meet most milling, drilling and tapping requirements, but in high-rigidity scenarios—particularly high-speed machining with small tools or long tool overhang—system stability is often not as strong as with shrink-fit holders. If your core requirement is “maximising system rigidity as much as possible”, shrink-fit holders usually have the edge.
3. Damping capability and workpiece surface quality
Damping capability is directly linked to surface finish, tool life and the smoothness of machine operation. This is especially true for thin-walled parts, deep cavities, long overhangs or difficult-to-machine materials, where damping can be more important than clamping force alone.
Hydraulic holders are highly competitive in this respect. The hydraulic structure itself provides a degree of cushioning and vibration absorption, so in many finishing scenarios hydraulic holders can deliver better surface finish and a smoother cutting action. For workpieces prone to chatter marks or scenarios with slightly longer tool overhang, hydraulic holders are often the safer choice.
Shrink-fit holders, while offering excellent rigidity, are not primarily known for damping. They are best suited to conditions that demand high precision, high speed and high rigidity, rather than specifically absorbing vibration.
ER holders generally do not have an advantage in this area. In particular, in long-reach machining or higher-demand finishing, they are more likely to be affected by holder-related vibration.
In summary, shrink-fit systems, hydraulic holders and ER collet holders are not simply a case of “one replacing another”. They represent three technical routes aimed at different machining objectives.
If your core objective is high rigidity, high spindle speed, high precision and the ability to machine in complex spaces, a shrink-fit tool-holding system is often the most worthwhile investment.
If your objective is high precision, low vibration, operational convenience and stable finishing performance, a hydraulic holder is usually the more balanced choice.
If your priority is cost control, tool compatibility and general shop-floor versatility, ER collets remain the most practical and widely used baseline solution.
For most factories, the truly professional approach is not to blindly chase the most expensive system, but to build a more appropriate tool-holding configuration based on process characteristics, tool types, machine capability and order mix.
