CNC Drill And Tap Machine For Metal Thread Machining

The contemporary metalworking paradigm demands rapid cycle times, unprecedented dimensional precision, and uncompromising internal thread fidelity. A CNC drill and tap machine for metal thread machining—commonly referred to in high-production sectors as a tapping center or compact machining center—serves as the cornerstone for manufacturing threaded components across the automotive, electronic hardware, telecommunications, and aerospace industries. Unlike generalized vertical machining centers (VMCs), dedicated CNC drilling and tapping centers emphasize agile acceleration/deceleration kinematics, direct-drive high-RPM spindles, and synchronized rigid tapping algorithms.

Modern CNC drill and tap machinery mitigates the perennial challenges associated with internal thread generation in challenging structural alloys. Materials ranging from standard 6061-T6 aluminum to refractory metals such as Inconel 718, 316L stainless steel, and Grade 5 titanium require exact spindle-to-feed synchronization. An instantaneous pitch deviation of merely a few microns can result in catastrophic tap breakage, ruined component batches, and extensive machine downtime. Through real-time torque feedback, advanced digital servo loops, and precision tooling interfaces, contemporary CNC tapping solutions optimize chip evacuation, minimize burr formation, and maintain true thread depth repeatability within ±0.01 mm.

Industrial Market Landscape and Commercial Demands

The rapid acceleration of electric mobility (EVs), consumer electronic miniaturization, and micro-fluidic medical hardware has dramatically stimulated global demand for high-speed CNC drill and tap installations. In the electric vehicle sector, massive battery enclosure housings, aluminum die-cast stator components, and high-voltage inverter cases require hundreds of precisely positioned M3 to M12 mounting threads per assembly. Conventional heavy-duty milling equipment incurs unnecessary overhead and excessive tool transition intervals when deployed solely for hole production. Compact, energy-efficient tapping centers bridge this gap by delivering ultra-short cycle operations with specialized high-pressure internal coolant toolholders.

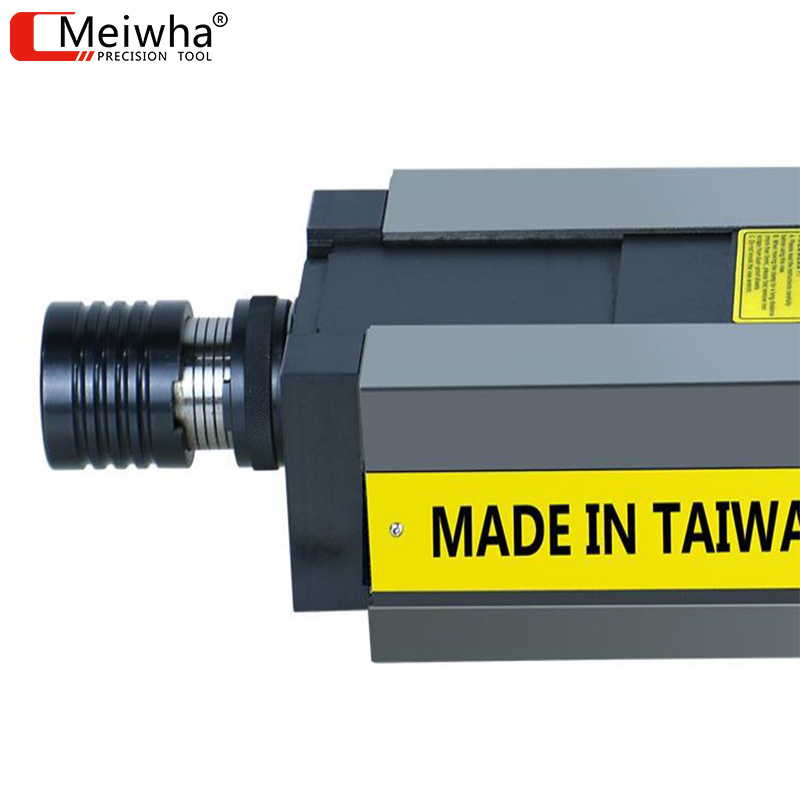

Furthermore, commercial pressures for zero-defect output have forced contract manufacturers to pivot toward closed-loop automated cells. Machine setups integrating automatic tool changers (ATC) with sub-1.2-second tool-to-tool exchange times and hydraulic self-centering vises are replacing standalone manual operations. This architectural synergy ensures stable clamping rigidity against high lateral cutting loads and instantaneous torsional spikes inherent to metal thread machining.

Emerging Technological Trends in Metal Thread Machining

As Industry 4.0 matures into pervasive industrial reality, the development vector of CNC drill and tap centers is characterized by three transformational shifts:

• Predictive Spindle & Torque Analysis: Cloud-connected smart CNC interfaces continuously cross-reference cutting current waveforms against historical baselines. Minor variations in thread resistance initiate automatic spindle micro-retractions or prompt an automated tool replacement cycle, eliminating costly human scrap.

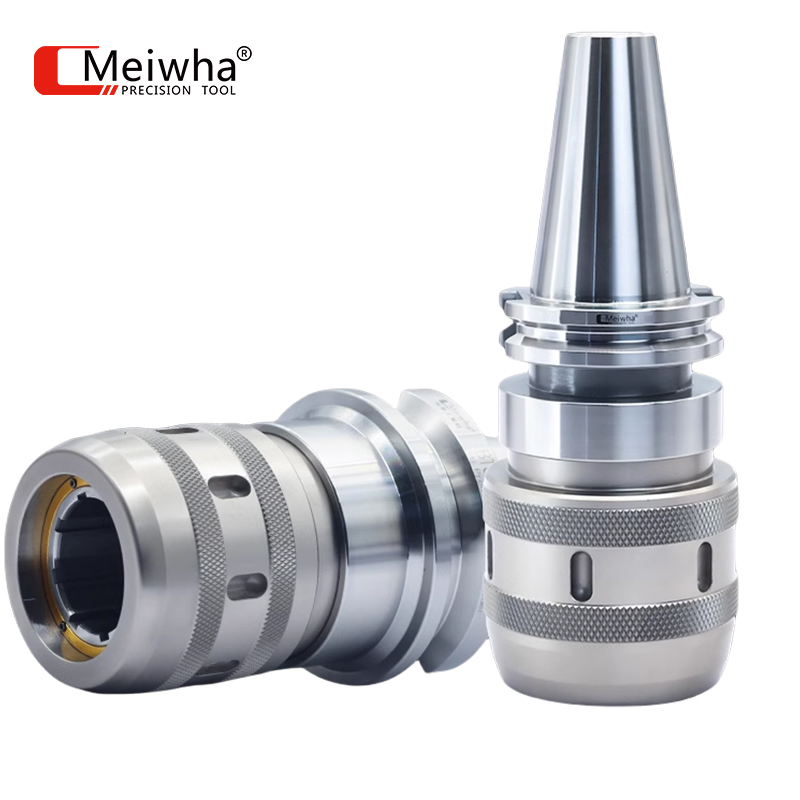

• Dual-Contact and Shrink-Fit Tool Holding: High-speed tapping induces pronounced micro-vibrations. Modern drill-tap configurations increasingly utilize BT-dual-face contact and shrink-fit tool holders to achieve TIR runout values under 0.003 mm, effectively doubling tap service life in difficult-to-cut metals.
• Hybrid Thread Milling Synthesis: Beyond fluted spiral point and spiral fluted form taps, CNC tapping programs incorporate high-speed orbital thread milling. This approach facilitates broken-tool-free processing on hardened steels (>50 HRC) and permits multiple thread diameters to be formed using a singular standardized cutter index.

Extensive Application Analysis Across Strategic Industrial Sectors

Aerospace Fastening Arrays: Aircraft hydraulic manifolds, structural brackets, and landing gear subsystems demand internal thread accuracy compliant with UNJ and AS8879 class 3B aerospace tolerances. Controlled chamfering, pilot hole sizing via precision micro-boring sets, and high-pressure through-spindle cooling prevent catastrophic work-hardening in heat-resistant superalloys.

3C Electronics and Structural Frames: Thin-walled magnesium-aluminum laptop chassis, smartphone mid-plates, and 5G transceiver stations demand thousands of clean M1.2 to M2.5 threaded blind pockets. Precision CNC tapping machines deliver the thermal stability and high-RPM micro-feed accuracy needed to prevent punch-through or strip-out defects on micro-thickness walls.

Precision Hydraulic and Pneumatic Valves: Fluid systems operating under extreme pressure require NPT, BSPT, and SAE straight-thread O-ring boss ports free of torn flanks or microscopic burrs. By integrating multi-station hydraulic vises with precision end mill and tapping holders, complex valve blocks can be fully drilled, counterbored, and threaded in a single fixtured setup.
