In aluminium component machining, many people assume that aluminium is “easy to cut”, and therefore tend to focus only on drawing dimensions and machine parameters. In real production, however, what truly affects machining quality and batch stability is often not whether the material is easy to machine, but whether the cutting tools, toolholders and fixtures have been configured properly.
This is especially true for disc-type parts with concentric steps, a centre hole, circumferentially distributed holes and local counterbores. If the aluminium machining tools, aluminium machining toolholders and fixturing solution are not planned properly at the outset, then even if the part itself is not structurally complex, issues such as hole position deviation, surface scratching, uneven tool marks, excessive edge burrs, unstable concentricity and positioning errors after flipping may still occur in actual machining.

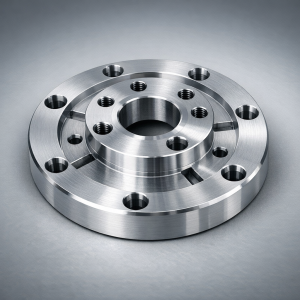

Using a typical disc-type aluminium part as an example, this article explains systematically how to select the right cutting tools, toolholders and fixtures in aluminium CNC machining, and how to establish a more stable machining solution better suited to batch production.
Why can aluminium component machining not rely only on the drawing? Why must the cutting tools, toolholders and fixtures be decided first?
Many parts do not appear particularly complicated on the drawing, but once they enter actual production, problems with clamping, tooling and process sequence begin to appear. Although aluminium is not as prone to work hardening as stainless steel, it still has its own requirements when it comes to machining quality.
First, aluminium is prone to built-up edge and burr formation during high-speed cutting. If the cutting edge is not sharp enough, or if chip evacuation is poor, the surface can easily become dull, dragged or marked by tool trails. Secondly, disc-type parts usually contain a number of concentric features. If the initial datum face is not established securely, the positional relationship between the outside diameters, bore and hole pattern will be affected. In addition, this type of part often requires a second or even third set-up. If the fixturing plan is not prepared in advance, coaxiality, face flatness and hole position accuracy can easily be affected after the part is turned over.
Therefore, aluminium part machining cannot focus solely on the dimensions shown on the drawing. It is also necessary to determine in advance which tools will be used for roughing, which toolholders will be used for finishing, and which fixtures will be used to ensure stable positioning. Only in this way is there a proper foundation for subsequent programming and batch production.
Where are the machining difficulties in today’s case?
Structurally, there are four main aspects. The first is the large number of concentric features. The part usually contains several outside diameters, bores and stepped faces, all of which place demands on the face datum, roundness and concentricity. The second is the high requirement for hole pattern distribution. The mounting holes, locating holes or counterbores distributed around the circumference are not only numerous, but also require stable pitch and indexing angle. The third is the error introduced by flipping and re-clamping. Disc-type workpieces generally require at least two set-ups, and sometimes three. Without a dedicated locating method, dimensional and positional deviation can easily occur after the part is turned over. The fourth is surface finish control. Although aluminium is easy to cut, if the cutter selection is not appropriate or if holder run-out is excessive, the finished surface can easily show obvious tool marks, and edge deburring quality will also suffer.
For precisely these reasons, although this type of part is not a complex five-axis component, it still places fairly high demands on the completeness of the process set-up. Whoever can match the aluminium machining fixtures, cutting tools and toolholders more effectively will find it much easier to balance efficiency, accuracy and appearance quality.
Choice of precision vice
For this type of part, fixture selection cannot stop at simply “holding the part securely”. It must also take into account whether it is convenient for establishing the rotary centre datum, whether it supports accurate repositioning after flipping, and whether it is suitable for machining circumferential hole patterns.
For workpieces of small to medium size and moderate thickness, the first set-up can usually be carried out using a precision CNC machine vice together with parallel blocks. The advantage of this is that it allows the face datum to be established quickly and provides a stable reference for subsequent hole pattern and outer profile machining. In general, a 4-inch or 5-inch precision machine vice is sufficient for most aluminium disc-type machining applications.
In the second set-up, it is better to use soft jaws or a dedicated locating plate for holding the part after it has been turned over. For disc-type parts, pre-machining a locating pocket in the soft jaws to match the outside diameter or step profile can effectively improve concentric location stability and reduce the risk of clamping damage or distortion.
If the part contains a large number of equally spaced holes around the circumference, or if the indexing angle requires higher accuracy, it is best to use it together with an indexing fixture, 4th-axis rotary table or dedicated indexing tooling. For batch production, such tooling not only improves efficiency, but also significantly improves the consistency of hole positions.
Therefore, for this type of fixture configuration in aluminium component machining, the preferred approach is a combination of “precision machine vice + soft jaws + indexing fixture”, rather than relying on a single fixture to complete the entire process.
Selection of cutting tools for aluminium components
When selecting aluminium machining tools, the key is not simply whether the material can be cut, but whether it can be cut quickly, cleanly and with a good surface finish. A stable tooling configuration will usually include a face mill, aluminium end mills, a spotting drill, drills, a chamfering tool, and where necessary, a reamer or finish boring tool.
Selection of the face mill
The face mill is mainly used for machining the end face and establishing the datum in the first operation. For aluminium blanks, it is recommended to use a dedicated aluminium face mill in the range of Ø40 to Ø63. These cutters generally have sharp cutting edges, large rake angles and better chip evacuation capability, which help to reduce built-up edge and drag marks on the surface.
Selection of end mills
For end mills, it is advisable to prepare at least three sizes. During roughing, Ø10 or Ø12 two-flute or three-flute solid carbide end mills for aluminium can be used for rough machining of the outer profile, roughing circular pockets and removing most of the stock. Ø6 aluminium end mills can be used for semi-finishing and local contour work. Ø4 aluminium end mills can be used for detail finishing, corner clean-up in small areas and narrow-slot machining. If there are local blend radii or higher surface finish requirements, a small ball nose cutter can also be added for finishing.
Selection of hole-making tools
For hole machining, it is recommended to start by spotting the hole positions, and then select drills according to the drawing dimensions. The centre hole, distributed holes and counterbores should be treated separately, so that hole position stability is not sacrificed simply to save tools. For high-precision holes, a reaming or finish boring operation can be added to further ensure hole diameter accuracy and cylindricity.
Selection of chamfering tool
The edge burrs on aluminium parts are usually quite noticeable, so it is advisable to use a 45° chamfering tool for light chamfering of hole mouths and deburring of the outer profile. This not only improves appearance, but also helps to improve assembly feel and product consistency.
Regarding the selection of toolholders
When selecting aluminium machining toolholders, many people tend to underestimate their influence. In practice, however, the more you pursue surface finish, dimensional consistency and repeatability in batch production, the less casually toolholders can be chosen.
If the machine spindle is BT40, then a BT40 face mill holder is generally suitable for the face milling operations. This type of holder is suitable for mounting a face mill cutter and provides sufficient rigidity for rough facing and datum surface machining.
During the roughing stage, the Ø10 or Ø12 end mills used for the main stock removal operations can generally be mounted in a BT40-ER32 holder. If the cutting load is higher and production is more stable, a side-lock holder can also be used to further improve rigidity. For roughing, the main priorities are reliable clamping and stable chip evacuation.
During the finishing stage, especially when using Ø6 and Ø4 small-diameter end mills for local contours, counterbore edges and corner clean-up, the advantages of a hydraulic chuck become much more apparent. A hydraulic chuck can provide lower run-out and higher clamping accuracy, making it easier to achieve a uniform and fine surface texture. For a material such as aluminium, where tool marks tend to show directly on the finished surface, a hydraulic chuck makes a very obvious improvement to the final appearance.
For drilling and chamfering, BT40-ER20 or BT40-ER16 holders can generally be used. Although drills and chamfering tools are not as sensitive as small-diameter finishing end mills, they still require sufficient clamping accuracy to prevent burrs around the hole mouth, drill wobble or unstable hole size.
So, a more reasonable toolholder solution for aluminium CNC machining is usually as follows: a face mill holder for end-face machining, ER32 or side-lock holders for rough milling, hydraulic chucks for finish milling, and ER20 or ER16 holders for drilling and chamfering.
Why is it recommended here to use aluminium-specific cutting tools?
Many factories still mix general-purpose steel-cutting tools into aluminium machining, but in terms of machining performance, dedicated aluminium tools are more suitable for this type of material. The reason is that aluminium machining places higher demands on sharpness, chip evacuation and high-speed cutting performance.
Aluminium tools usually feature larger rake angles, sharper cutting edges and polished flute geometry better suited to high-speed machining. If general-purpose tools that are not suitable for aluminium are used, problems such as poor chip evacuation, aluminium build-up on the cutting edge, dull surface finish and increased edge burrs can easily occur. These issues become even more obvious during finishing.
For aluminium parts where both efficiency and appearance quality are important, using aluminium-specific tooling not only improves cutting efficiency, but also makes it easier to achieve a brighter and more uniform surface finish.
Why emphasise an integrated matching solution?
In the machining industry, many company websites focus only on machine tools, machining centre models or individual tooling parameters. However, for customers with genuine purchasing needs, what matters more is whether the factory has complete process capability and whether it can provide a suitable machining solution based on the structure of the part.
For aluminium CNC machining, emphasising the equipment alone is not really enough. What is genuinely convincing is showing how a company can build a mature and workable solution around a specific part by combining cutting tools, toolholders and fixtures. This not only reflects machining experience, but also makes it easier to build customer confidence in delivery stability and batch consistency.
For this type of part, a precision CNC machine vice used together with soft jaws and an indexing fixture, combined with an aluminium face mill, different sizes of end mills, a spotting drill, drills, a chamfering tool, and BT40 face mill holders, ER holders and hydraulic chucks, already forms a mature and practical solution.
For disc-type aluminium part machining, what truly determines the machining result is not having more and more equipment, but whether the cutter size, holder type, clamping method and workpiece structure are properly matched. As long as the process is planned well at the outset, this type of part can be machined reliably on a three-axis vertical machining centre or CNC equipment with an indexing unit, while also balancing dimensional accuracy, surface finish, machining efficiency and batch consistency.
