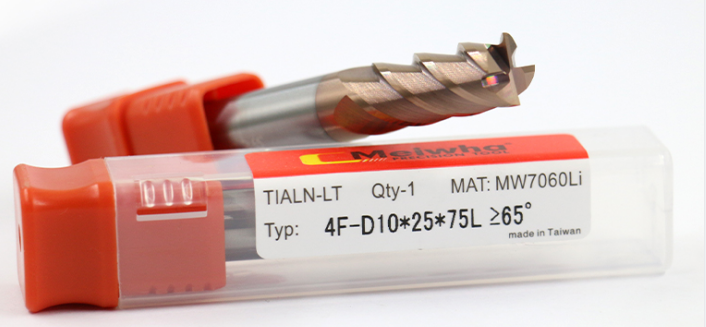

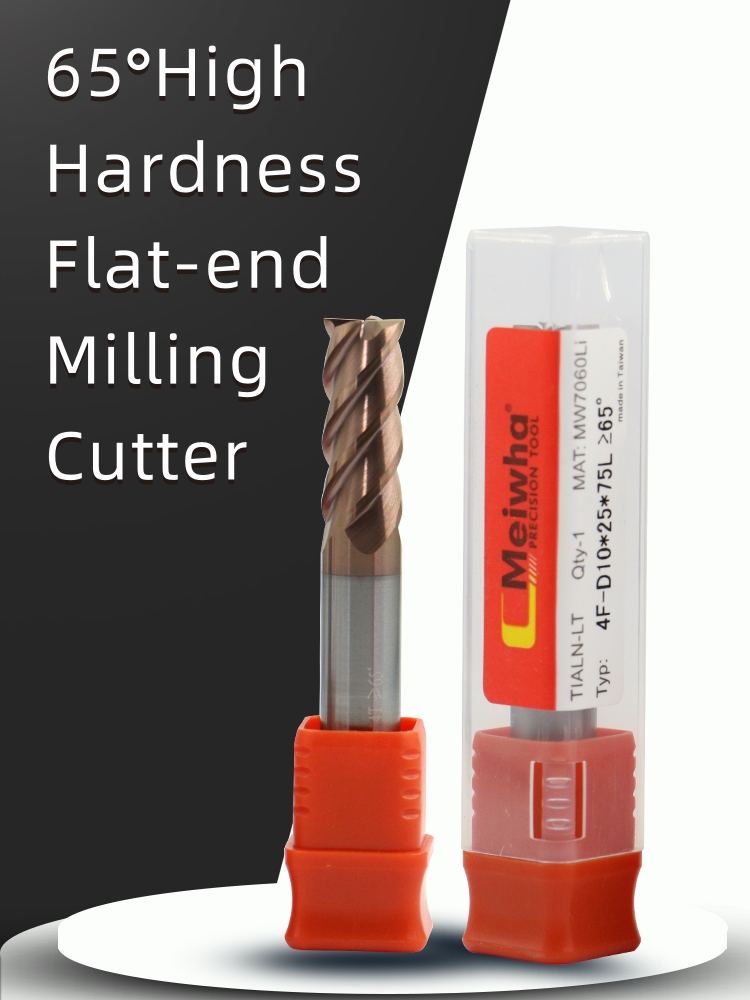

65HRC High Speed High Hardness Flat Milling Cutter

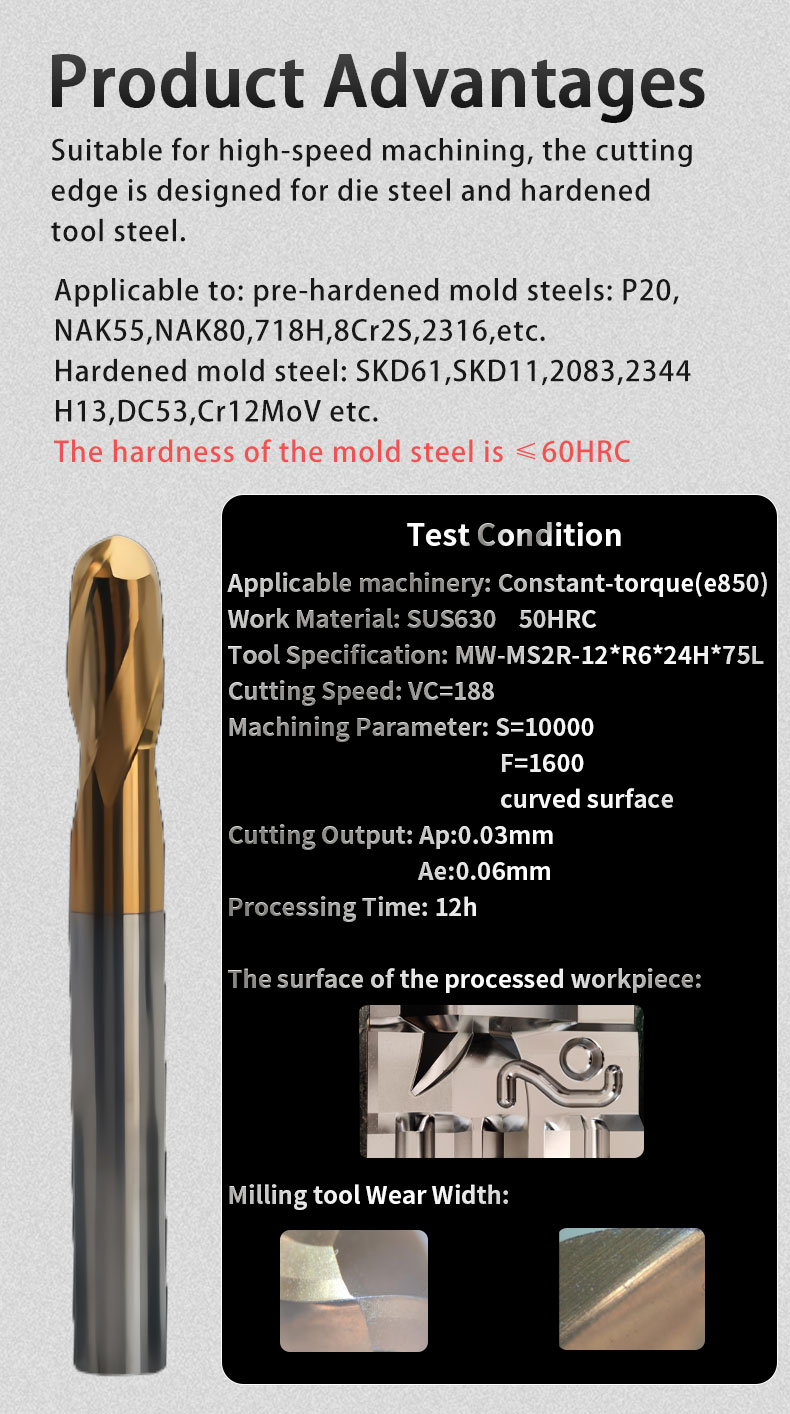

Product Advantages:
Suitable for high-speed machining, the cutting edge is designed for die steel and hardened tool steel.
Applicable to： pre-hardened mold steels: P20,NAK55,NAK80,718H,8Cr25,2316,etc.
Hardened mold steel: SKD61,SKD11,2083,2344,H13,DC53,Cr12MoV,etc.
The hardness of the mold steel is ≤HRC60
Test Condition:
Applicable machinery: Constant-torque(e850)
Work Material: SUS630 50HRC
Tool Specification: MW-MS2R-12*R6*24H*75L
Cutting Speed: VC=188
Machining Parameter: S=10000 F=1600 curved surface
Cutting Output: Ap:0.03mm Ae:0.06mm
Processing Time:12h
The surface of the processed workpiece:
Milling tool Wear Width:
Product Feature:
1.High rigidity, sharpness, durability and good machining surface accuracy.
2.Large core thickness design ensures high rigidity of the tool and prevents vibration.
3.with center edge, it can also be drilled while milling.
DLC Coating:
1.Thick coating type, long service life. thick coating can inhibit edge wear and achieve high durability and long life of the tool/
2.Thin coating type, attach importance to sharpness. high adhesion to the substrate to achieve high shar-pness and high solubility resistance.
Material: Tungsten steel carbide has the advantages of high hardness, wear resistance, toughness and corrosion resistance. It also has stronger heat resistance than HSS, so it can maintain hardness even at high temperature. Tungsten steel is mainly composed of tungsten carbide and cobalt, accounting for 99% of all components. Tungsten steel is also called cemented carbide and is considered to be the teeth of modern industry.

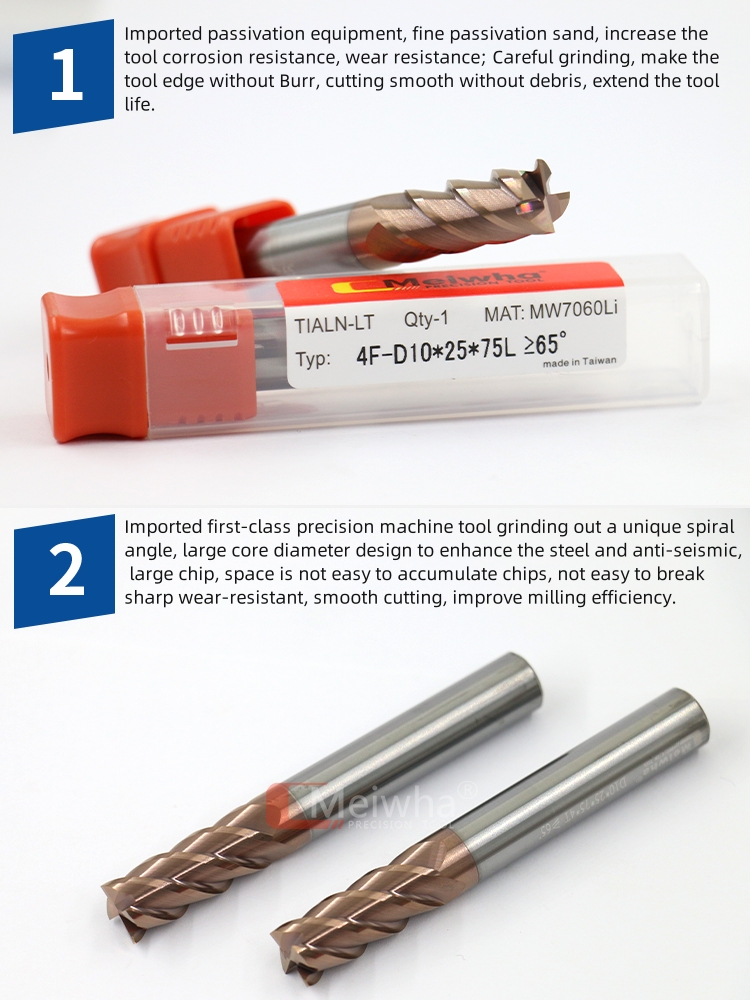

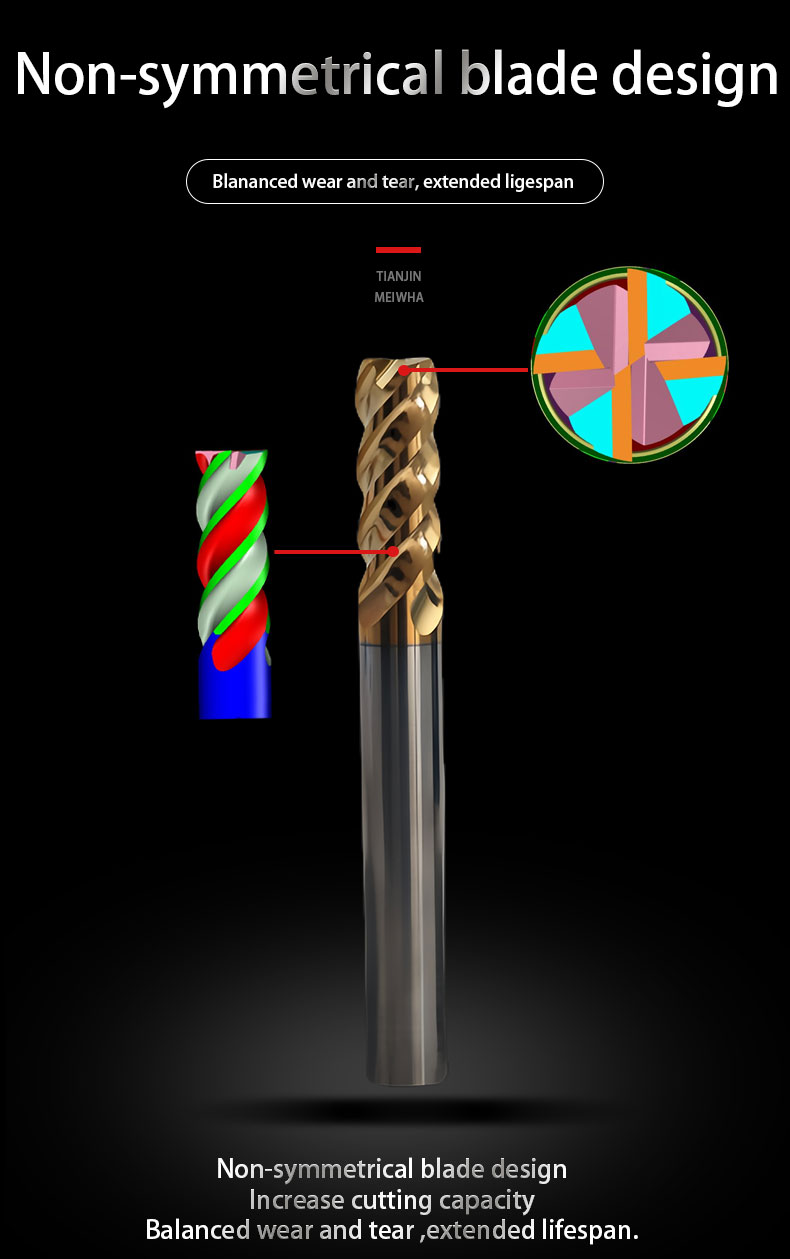

Detail design: High-precision cutting edge with suitable negative forefoot design, taking into account the strength and sharpness of the cutting edge. At the same time, the large core diameter is used to enhance the rigidity of the tool and make the cutting and chip removal stable.
Wide Application CNC End Mill: It can be used on many fields, such as metal processing, CNC machining and engineering using. Large chip flute design for smoother chip removal, making the workpiece smoother and brighter.
