A CNC vise is one of the key factors affecting yield and production rhythm
In CNC vertical or horizontal machining centres and FMS flexible manufacturing systems, vises are often underestimated. Many issues such as dimensional variation, tool marks on the surface, and reduced tool life are not always purely due to the machine tool or cutting tool. They can also be caused by workholding problems such as unstable clamping force, jaw lift, poor repeatability in repeated clamping, and excessive changeover time.
Therefore, to achieve the best solution under different objectives, a vise should essentially be selected according to the machining conditions, rather than simply by “clamping force and price”. That is why we have summarised several typical vise solutions below, to help you understand how to match a vise to the operating conditions.

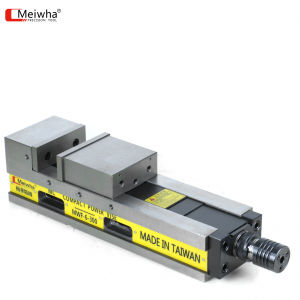

MC mechanical power vise: “high-rigidity, stable clamping” for heavy cutting and high loads
The core of a mechanical power vise is its mechanical force-multiplying structure, which amplifies clamping force in the final locking stage and emphasises resistance to load disturbance. What it solves is not “gentle clamping”, but ensuring the workpiece does not move under high torque, intermittent impact and aggressive side milling.
Its typical value is: stronger clamping force, making it suitable for high-load conditions such as steel parts, cast iron parts, mould blanks and standard block components. When combined with an anti-lift structure, it can significantly reduce datum drift caused by jaw lift. This leads to a more stable production rhythm for batch roughing, with improvements in rework and downtime.
MC hydraulic vise: batch consistency and “controllable clamping force”
Hydraulic vises emphasise force control and consistency. Clamping force can be freely adjusted, the clamping action is more uniform, and repeatability is better—especially suitable for parts that are sensitive to clamping force. The main application scenarios for hydraulic vises are: finishing-dominant processes, batch production lines with high requirements for dimensional and surface consistency, and production lines that require “standardised clamping force”.
MC pneumatic dual-station vise: fast actuation + dual stations
The core of a pneumatic dual-station vise is not maximum clamping force, but changeover speed and output. Compressed air enables rapid clamping and release, while allowing two workpieces to be clamped on the same machine at the same time—significantly reducing changeover time. It is best suited to: batch machining of small parts with high repeatability and short cycle times, and production lines that pursue “standardised actions”.

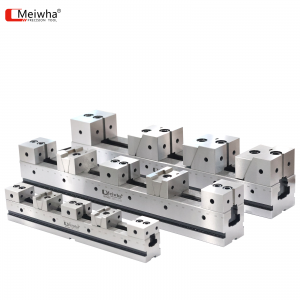

Multi-station vise: maximum output per unit time within a fixed station layout
The core of a multi-station vise is a fixed multi-station layout. Multiple clamping positions are set within the same fixture body, and one drive mechanism enables fast clamping across multiple stations. This allows the machine to process multiple workpieces in a single cycle, continuously improving machine utilisation. Its advantages include: a more uniform load path and operating method, long-term machining of similar parts, and suitability for standardised production lines and long-running batch orders.
Modular machine vise: modular expansion
The core of a modular machine vise is its ability to be reconfigured through modules. Modules such as fixed jaws, moving jaws, intermediate clamping blocks, leadscrew mechanisms and base guideways can be freely combined, allowing the fixture to be quickly adjusted as workpiece size, the number of stations and layout requirements change. It is better suited to workshops where: product changeovers are frequent, workpiece sizes vary widely, more layouts are needed on the same vise system, and flexibility is valued more than “maximum efficiency under a fixed takt”.
Choosing the right vise is essentially a choice of production organisation
The value of a vise has long gone beyond simply “holding the workpiece”. It plays a role in determining your workshop’s yield, production rhythm, machine utilisation and organisational efficiency.
For heavy cutting, prioritise “anti-movement and high rigidity”; for finishing, prioritise “force control and consistency”; for production rhythm, prioritise “fast actuation and multi-part machining”; for flexible production, prioritise “modular reconfiguration”.
If the above content does not help you choose the right CNC vise, please contact us. Based on your requirements, we will recommend a CNC vise solution that better matches your machining conditions.
