Why is it not enough to look only at the drawing dimensions when machining steel parts? Why must the tools, toolholders and vice be selected first?
In CNC machining, many people’s first reaction when they receive a drawing is to start programming and cutting straight away. However, for certain irregular steel parts, what really determines whether the job can be machined smoothly is often not the programme itself, but whether the process planning and tooling arrangement have been set up properly from the outset. This is especially true for small steel components with holes, angled faces, stepped or transitional surfaces, and localised irregular contours. If the cutting tools, toolholders and vice are not properly matched, then even if the dimensions appear fairly straightforward, problems such as unstable clamping, hole position deviation, chatter on the profile, poor surface finish, or corners that cannot be cleaned out properly can easily occur during machining.
Analysis of the machining difficulties of this component

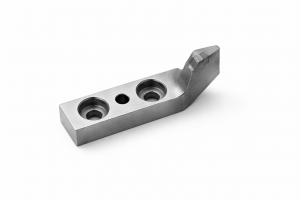

Structurally, this type of part usually has several typical machining features. First, it is a small steel component with a relatively short overall length, but with a raised or folded end, which means that when it is clamped in a standard machine vice, the effective gripping area is limited. Second, the surface contains two counterbored holes and a smaller central hole. Although there are not many holes, strict control is required over hole spacing, hole position and the concentricity of the counterbore. Third, near the raised end there are angled faces, blended radii or transition surfaces, and these areas place higher demands on cutter diameter, tool overhang and rigidity. Fourth, this component requires a second set-up. Without soft jaws or a form-fitting clamping aid, the second operation can very easily suffer from uneven loading, which affects positional accuracy.
What sort of vice is suitable for a small irregular steel part?
For a steel part of this size, the most common solution is a CNC machine vice. In this case, I would choose a 4-inch CNC machine vice. If your machine has a larger travel and a better machining environment, a 5-inch precision vice is equally suitable. The key point is not the size of the vice itself, but its clamping rigidity, repeat positioning accuracy, and whether it can easily be used with soft jaws later in the process.
During the first set-up, hard jaws can be used together with parallel blocks to clamp the raw blank. The main tasks at this stage are to machine the datum faces, bring the thickness to size, and complete the main hole features and initial outer profile. Therefore, the main aim of the workholding at this stage is to ensure stable support on the bottom face and even side loading.
Once this stage is complete, the part already has a relatively clear locating datum. At this point, the second set-up is best done using aluminium soft jaws or copper soft jaws. By pre-machining a suitable locating pocket into the soft jaws to match the part, the stability of machining the raised end, angled faces and profile features can be improved significantly.
Many shop-floor problems arise during the second set-up. Because one end of this type of part is raised, the component itself is not a regular rectangular shape. If hard jaws are still used directly, the result may be unstable clamping at best, or slight distortion at worst. This can ultimately lead to an asymmetrical profile, unstable dimensions on angled surfaces, or even positional deviation between the holes and the profile. Therefore, from the standpoint of practicality and maintaining a good yield rate, the recommended workholding arrangement for this type of part is a Meiwha precision machine vice with a set of form-machined soft jaws.
What cutting tools are needed to machine this steel part?
From a machining process perspective, this type of part does not require a large number of special tools, but each category of tool must perform its own task properly. A stable tooling set-up will usually include a face mill, flat end mills, a spot drill, twist drills, a counterbore cutter, and a chamfering tool. If the blended or transition surfaces have tighter requirements, a ball nose cutter can also be added for finishing.
The face mill is mainly used in the first operation to machine the datum face. When the steel blank is in its raw state, the surface often has oxide scale, saw marks or uneven stock allowance, so the datum face should first be machined with a face mill, which is essentially the roughing stage.
For the external profile, a 10 mm four-flute solid carbide end mill can be selected for the next stage of rough machining. This tool is used for rough profiling, roughing steps and removing excess stock. Because the material is steel, a four-flute cutter offers a good balance between efficiency and rigidity in steel machining, making it suitable for the main cutting operations.
Once the process enters the semi-finishing stage and local contour work begins, a 6 mm four-flute solid carbide end mill can be used to handle smaller internal corners, narrow areas and contours that are closer to final size. If there are even smaller transition features, corner clean-up areas or tight spaces, a 4 mm end mill can then be used for further finishing.
For the holes, it is advisable to use a spot drill first to pick up the hole positions, and then select the appropriate drill sizes according to the drawing. The smaller central hole is usually drilled directly to the final tapping drill or through-hole size. For the larger holes on either side, the pilot or base hole is drilled first, and then the upper counterbore is machined either with a counterbore cutter or by helical interpolation using an end mill. This helps to ensure consistency of hole position and also makes it easier to control the surface quality at the hole mouth. Finally, a 45-degree chamfering tool can be used to break the edges of the holes and outer profile slightly, improving the appearance of the part while also removing burrs effectively.
How should the toolholders be selected for this steel part?
Even if the cutting tools are chosen correctly, the result can still fall well short if the wrong toolholders are used. In steel machining especially, roughing and finishing place completely different demands on the toolholding system. Roughing places greater emphasis on rigidity and impact resistance, while finishing places more emphasis on run-out control and surface finish. For this type of component, it is therefore best to adopt a clearly defined division of labour when selecting toolholders.
My machine uses a BT40 spindle, so for face milling, a BT40 face mill arbor is usually sufficient. This type of holder is suitable for mounting a face mill and offers enough rigidity for machining datum faces. For roughing end mills around 10 mm in diameter, a BT40-ER32 collet chuck can be used, or, where conditions allow, a side-lock holder may be selected instead. The advantage of this approach is reliable clamping and broad compatibility, while also reducing the risk of instability during heavier feed rates in roughing.

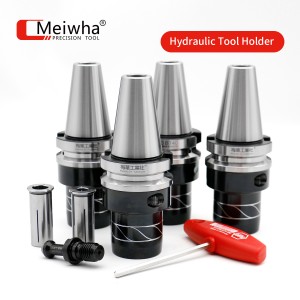

In the finishing stage, particularly when using smaller cutters such as 6 mm and 4 mm end mills to machine angled surfaces, contours and local details, the advantages of a hydraulic chuck become more obvious. The key strengths of a hydraulic chuck are low run-out, high clamping accuracy and more even tool loading. As a result, it is easier to achieve stable dimensional control and a better surface finish when finishing steel parts. Of course, if a hydraulic chuck is not available on the shop floor, an ER collet chuck can still do the job, but in terms of fine detail and surface consistency, the hydraulic chuck generally performs better.
For drilling and chamfering, BT40-ER20 or BT40-ER16 holders are usually suitable. Although spot drills, twist drills and chamfering tools are not as sensitive to the holder as finishing cutters are, the holder still needs to provide adequate clamping accuracy and rigidity, so as to avoid wobble during drilling or an out-of-round hole mouth.
To sum up, a more sensible arrangement for this component would be as follows: a face mill arbor for face milling, an ER32 or side-lock holder for rough milling, a hydraulic chuck for finish milling, and ER20 or ER16 holders for drilling and chamfering. This avoids over-specifying the set-up while still balancing machining stability with finished part quality.
Why are carbide tools generally recommended for machining steel parts?
For ordinary steels such as 45 steel, 40Cr, S50C and P20, carbide tooling has already become the standard choice in most cases. Compared with high-speed steel tools, carbide offers greater wear resistance, better thermal stability and stronger cutting capability when machining steel, and these advantages are even more apparent in CNC machining.
If combined with TiAlN or AlTiN coatings, the tool’s resistance to thermal cracking and its service life can be improved further when machining steel. For a small steel part of this type, with contours, holes and local transition surfaces, coated solid carbide end mills are more beneficial for controlling tool wear and maintaining consistency in both profile dimensions and surface finish.
Of course, if the part material is a hardened steel or another higher-hardness material, then the machining strategy can no longer simply follow the same parameters and tooling plan used for ordinary steels.
For small irregular steel parts, a sound machining solution does not necessarily mean buying the most expensive equipment, nor does it mean that an especially complex fixturing system must be used. What really matters is matching the cutter sizes, toolholder types and workholding method to the structure of the part itself. For a steel part with counterbores, a small hole, a raised end and angled faces like this one, using a precision CNC machine vice with soft jaws, together with a face mill, different sizes of solid carbide end mills, a spot drill, drills, a counterbore cutter and a chamfering tool, and combining these with a BT40 face mill arbor, ER collet chucks and a hydraulic chuck, already provides a very mature and practical solution.
If the initial set-up is done properly, this type of component can be machined reliably on a three-axis vertical machining centre, achieving not only hole and profile accuracy, but also good surface finish, machining efficiency and repeatability. For companies looking to improve the machining quality of steel parts and reduce trial-and-error costs, matching the cutting tools, toolholders and vice correctly in advance is more valuable than blindly pursuing a more complicated machining approach.
