In CNC machining, stainless steel is a material that places relatively high demands on process planning. Compared with ordinary steel, stainless steel is more prone to heat build-up, edge build-up on the cutter and work hardening during cutting. If attention is given only to the drawing dimensions at the outset, without properly configuring the cutting tools, toolholders and workholding method, then even a part with a fairly simple structure may suffer from hole position drift, a rough or dragged surface finish, chatter on the profile and unstable dimensions during machining.
Using a small stainless steel block-type component as an example, this article explains in a systematic way how to select the right machine vice, cutting tools, toolholders and supporting machining strategy for practical production.
Why is it not enough to look only at the drawing when machining stainless steel parts? Why must the tools, toolholders and vice be decided first?
Many parts do not look particularly difficult on a 2D drawing, but once actual machining begins, a number of problems start to appear. This is especially true with stainless steel. One of its most typical characteristics is the amount of heat generated during cutting. As heat builds up, the cutting edge dulls more quickly, and the surface layer of the material can then harden rapidly through work hardening. If cutting continues under these conditions, it will not only reduce tool life, but also affect the surface quality of the part, ultimately lowering the yield of acceptable components.
For small stainless steel block-type parts, the most common problems usually fall into three areas. The first is clamping stability. Because the part is small and the contact area is limited, any lack of rigidity in the set-up can lead to slight movement during pocket milling, finishing of the external profile, or drilling of side holes. The second is tool matching. If the same type of cutter and toolholder is used for both roughing and finishing, efficiency often drops, surface quality suffers, and obvious chatter marks may appear. The third is process sequence. If the order of operations is not planned properly between machining the top-face features, flipping the part for finishing, and machining the side holes, it becomes very difficult to control the positional relationship between the holes and the outer profile consistently.
For this reason, when machining stainless steel parts, the cutting tools, toolholders and vice should be planned as one integrated package from the process preparation stage, rather than being adjusted afterwards once problems appear on the shop floor.
Machining difficulty analysis

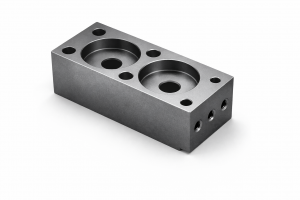

From the point of view of structural features, several challenges stand out. On the top face, there are two relatively large circular counterbored recesses, each with a central hole. This means the top face involves both flat-face machining and circular pocket machining, so there are clear requirements for toolpath strategy and roundness control. On both the top and the sides of the part, there are usually several smaller holes. The pitch, diameter and positional relationship of these holes must all be held consistently. The side holes also mean that the component will need at least a second, and in some cases even a third, set-up. The process route therefore cannot focus only on how to machine the first face; datum references for the flipped and side operations must also be prepared in advance. Finally, stainless steel itself is more likely to produce edge build-up and heat, particularly during drilling, finish milling and corner clean-up with small cutters. This places higher demands on tool coating, holder run-out control and coolant conditions.
It is precisely because these factors overlap that, although this type of part is not a complex five-axis component, it still demands a well-thought-out and complete machining plan. The more sensibly the workholding, cutting tools, toolholders and process sequence are arranged, the easier it becomes to produce good parts consistently.
Choice of vice
First set-up
The main objective of the first set-up is to establish datum faces, bring the thickness into position, and complete the main hole features and the initial external form of the part. For this reason, hard jaws with parallel blocks are used to clamp the raw blank in a basic but stable manner.
Second set-up
To reduce the risk of distortion when the part is turned over, aluminium or copper soft jaws can be used. A locating pocket matching the contour of the workpiece should be machined into the jaws in advance.
Third set-up
For the third set-up, an angle plate is used to raise and support the workpiece. It is important to note that drilling itself already tends to generate heat, and if the side positioning is unstable as well, hole position errors, burrs at the hole mouth and surface damage can easily occur.
Therefore, when machining stainless steel components, the recommended workholding solution is a Meiwha CNC precision machine vice, used together with parallel blocks, soft jaws and, where necessary, an angle plate for auxiliary location.
Choice of cutting tools
A conventional yet reliable set-up will normally include a face mill, solid carbide end mills, a spot drill, drills, a chamfering tool, and where required, a ball nose cutter or thread-cutting tool.
Face mill
The face mill is mainly used for machining the datum face in the first operation. Since the surface of a stainless steel blank may have saw-cut marks, oxide scale or uneven stock allowance, establishing a flat reference face first helps greatly with subsequent locating and dimensional control. For a small block-type part of this kind, a face mill in the range of Ø40 to Ø50 is normally sufficient; there is no need for an excessively large cutter diameter.
End mills
It is advisable to prepare three sizes of end mill. The first is a Ø10 or Ø12 four-flute solid carbide end mill designed for stainless steel, used for rough milling of the outer profile, roughing the circular pockets and removing most of the stock. The second is a Ø6 four-flute solid carbide end mill, used for semi-finishing and finishing the circular recesses, local contours and narrower areas. The third is a Ø4 four-flute solid carbide end mill, used for corner clean-up, detail finishing and narrow-area finishing. If the component has higher surface finish requirements on local transition areas or blended surfaces, a small ball nose cutter can also be added for finishing.
Hole machining
For the holes, it is advisable to spot each position first and then select the corresponding drill sizes according to the drawing. The small holes on the top face, the central holes and the side holes should all be considered separately, rather than trying to save tooling at the expense of positional stability. For the two large circular counterbored recesses on the top face, helical interpolation with an end mill, carried out in layers, is generally the preferred approach. On stainless steel parts, this makes it easier to balance dimensional control and surface finish. Finally, a 45-degree chamfering tool can be used to apply a light chamfer to the hole mouths and outer edges, improving appearance while also removing burrs effectively.
Choice of toolholders
Toolholder selection needs to take both roughing and finishing of stainless steel into account. In practice, poor machining quality on many parts is not caused by the cutter itself, but by the use of an unsuitable holder system for roughing and finishing. For this type of component, a more mature approach is to let different styles of holder perform different tasks, rather than expecting one general-purpose holder to handle every operation.
Roughing stage
A BT40 face mill arbor is suitable for face milling. Our face mill holder provides sufficient rigidity for mounting the face mill and machining the datum surface of the part. For Ø10 or Ø12 end mills used in roughing, a BT40-ER32 collet chuck may be selected, or where larger batch sizes and higher rigidity are required, a side-lock holder may be used instead. The advantage of this arrangement is reliable clamping and a better ability to withstand higher cutting loads during roughing.
Finishing stage
During finishing, the advantages of a hydraulic chuck become much more apparent. In particular, when Ø6 and Ø4 small-diameter end mills are used for finishing circular pockets, local contours and small corner areas, a hydraulic chuck can provide lower run-out, better clamping accuracy and more even loading on the tool. This makes it easier to achieve stable dimensional accuracy and a better surface finish. For stainless steel parts, where surface consistency tends to be more sensitive, hydraulic chucks generally offer a clear advantage over standard ER collet chucks.
Drilling and chamfering
For drilling and chamfering operations, BT40-ER20 or BT40-ER16 holders are normally suitable. Although drills and chamfering tools are not as sensitive to the holder as small finishing end mills, adequate clamping accuracy and rigidity are still needed to avoid wobble during drilling, ragged hole edges or unstable hole size.
So, for this type of stainless steel block-type part, a more sensible holder arrangement is usually as follows: a face mill arbor for machining the datum face, an ER32 collet chuck or side-lock holder for rough milling, a hydraulic chuck for finish milling, and an ER20 or ER16 holder for drilling and chamfering. This division of labour avoids unnecessary over-specification, while still balancing efficiency, stability and surface quality.
Why do we emphasise an integrated solution of “cutting tools + toolholders + vice”?
In the machining industry, many company websites focus only on equipment, machine tools or individual cutter parameters. However, for manufacturers who genuinely care about service quality, what matters more is whether a tooling supplier has complete process capability and whether it can propose a sensible configuration based on the structure of the part. This is particularly important with stainless steel, which has clear machining characteristics and a comparatively higher level of difficulty. Simply stating that “we have such-and-such equipment” is not enough. What matters more is demonstrating a real understanding of machining details and the ability to implement a complete and workable solution.
For small stainless steel block-type parts, a sound machining solution does not necessarily mean the most expensive equipment, nor does it mean an unusually complex fixturing system is required. What really determines the result is whether the cutter sizes, holder types, vice arrangement and part structure are properly matched. For a stainless steel component with circular recesses, holes and side holes like this one, a precision CNC machine vice used together with soft jaws and an angle plate for auxiliary location, combined with a face mill, solid carbide end mills in different sizes, a spot drill, drills, a chamfering tool, and a BT40 face mill holder, ER collet chucks and a hydraulic chuck, already forms a mature and practical solution.
If the process is planned properly from the outset, this type of part can be machined reliably on a three-axis vertical machining centre, while still maintaining dimensional accuracy, surface finish, machining efficiency and repeatability in batch production. For companies looking to improve their stainless steel machining capability, reduce trial-and-error costs and increase conversion from website enquiries, presenting a complete machining solution built around a specific part is often far more valuable than speaking only in general terms.
