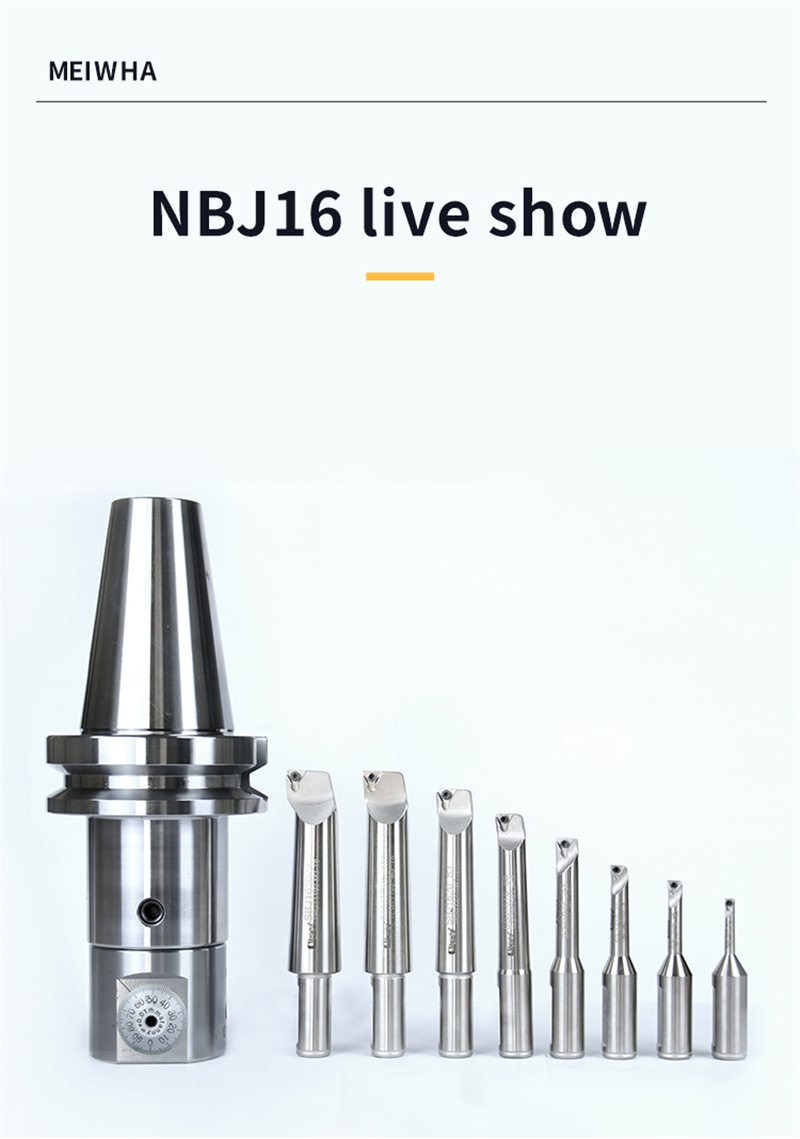

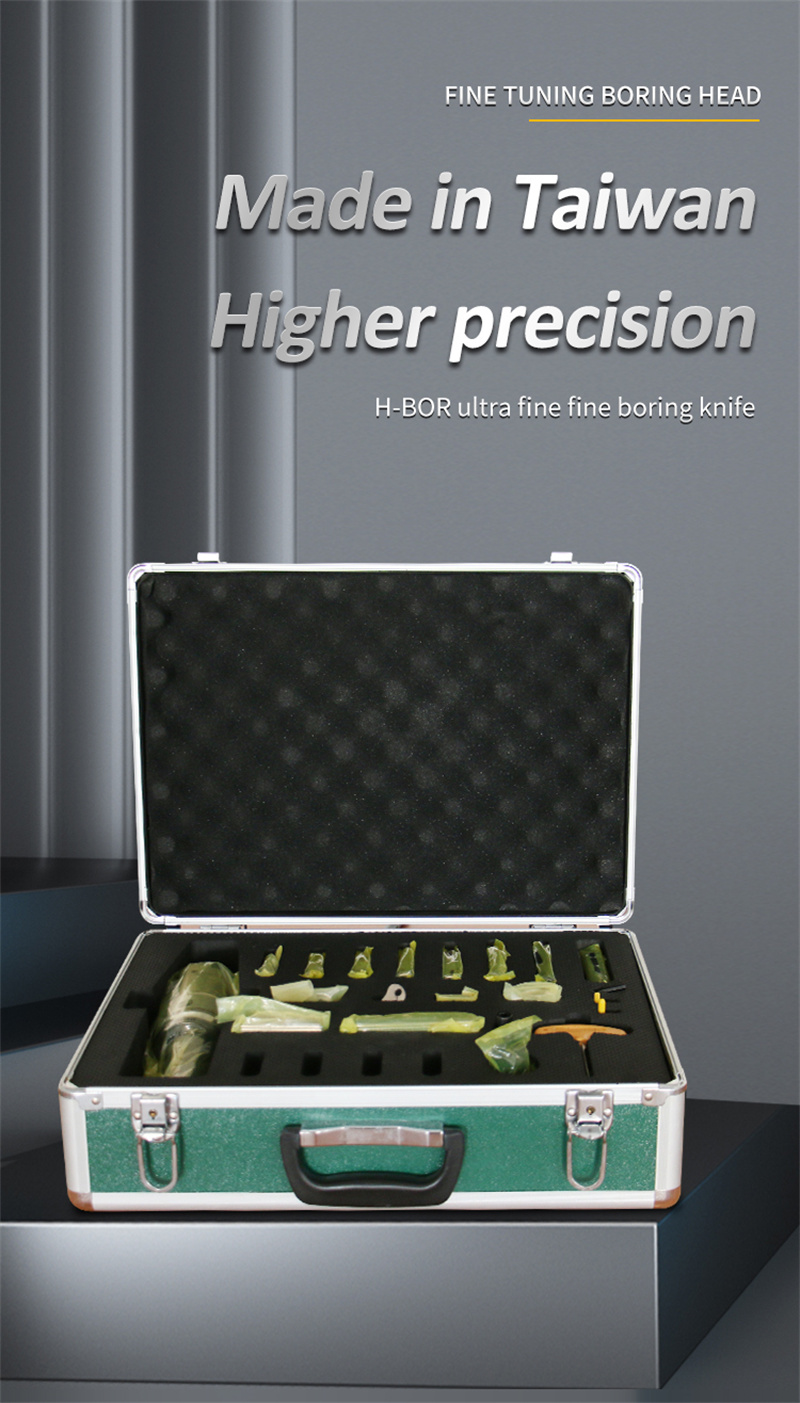

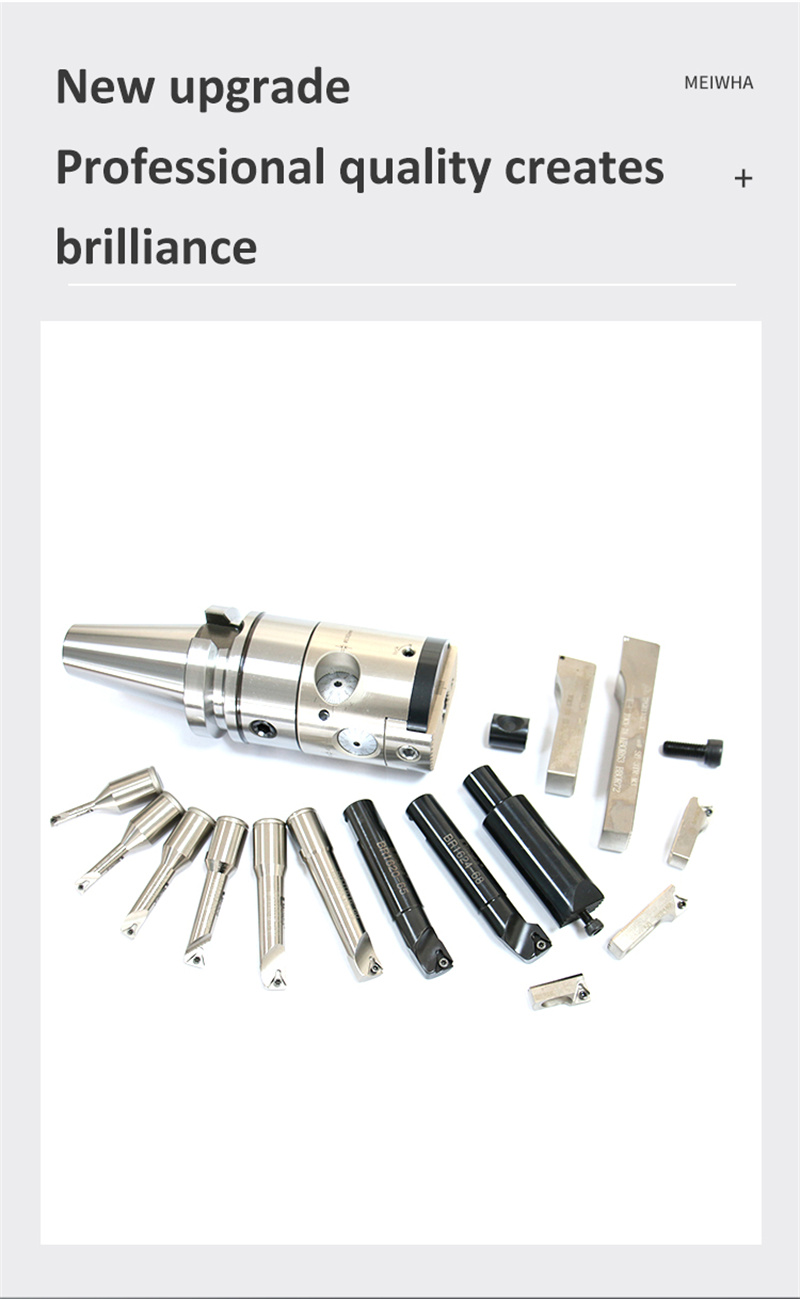

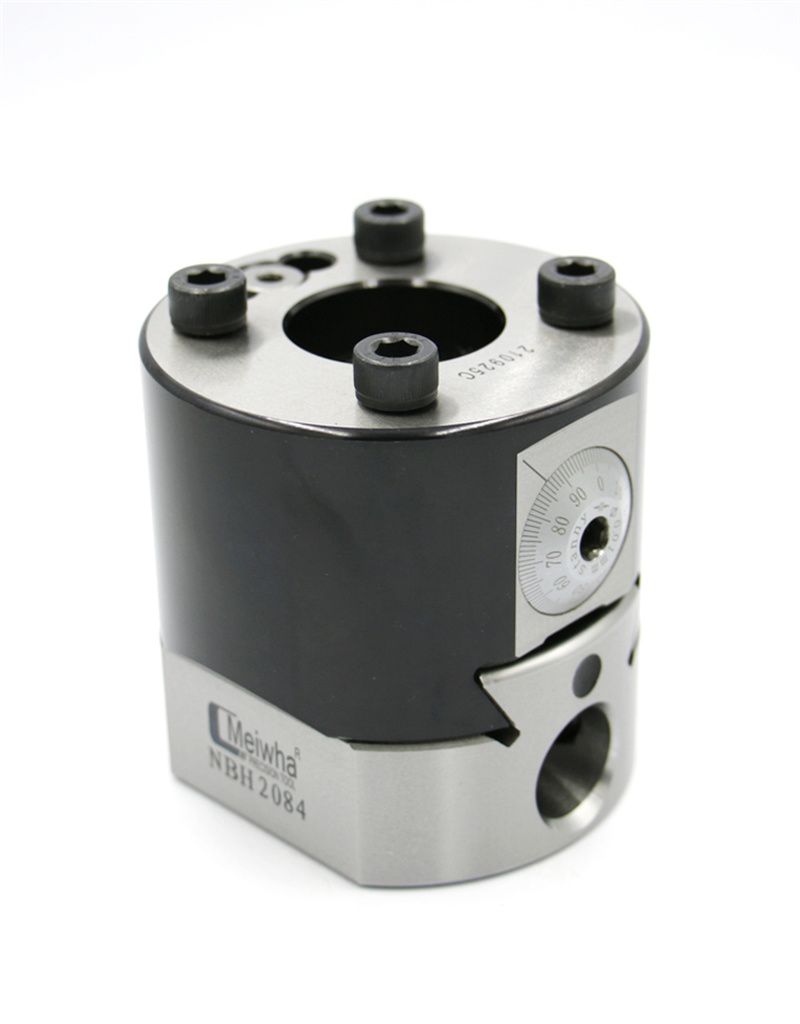

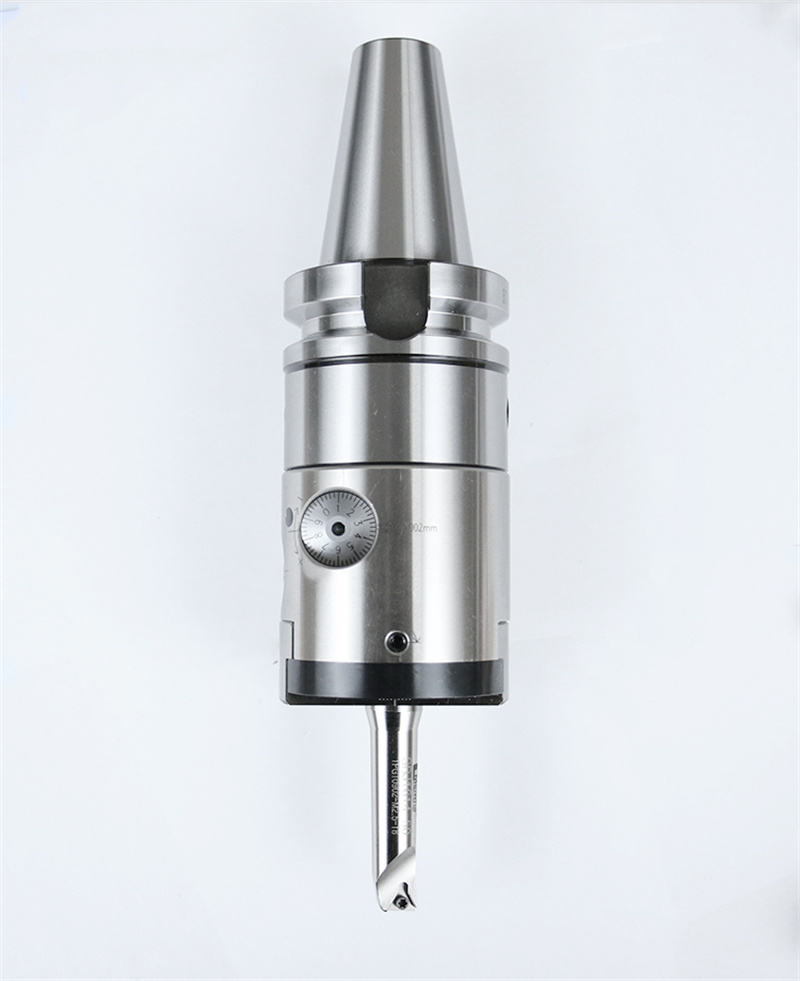

NBJ16 Fine Boring Set
The NBJ16 series precision boring head can reach a rotational speed of 1600 rpm. The actual rotational speed for the small diameter can reach 2400 rpm. For small holes, the measured value is approximately 10mm (using an internal diameter micrometer, with a 20mm height of 0.003 inches). The inserts should be of a precision grade R with a small diameter. For the final boring operation, a diameter of 0.05mm is chosen. If cutting, the selection for one side can be made according to the instruction manual.

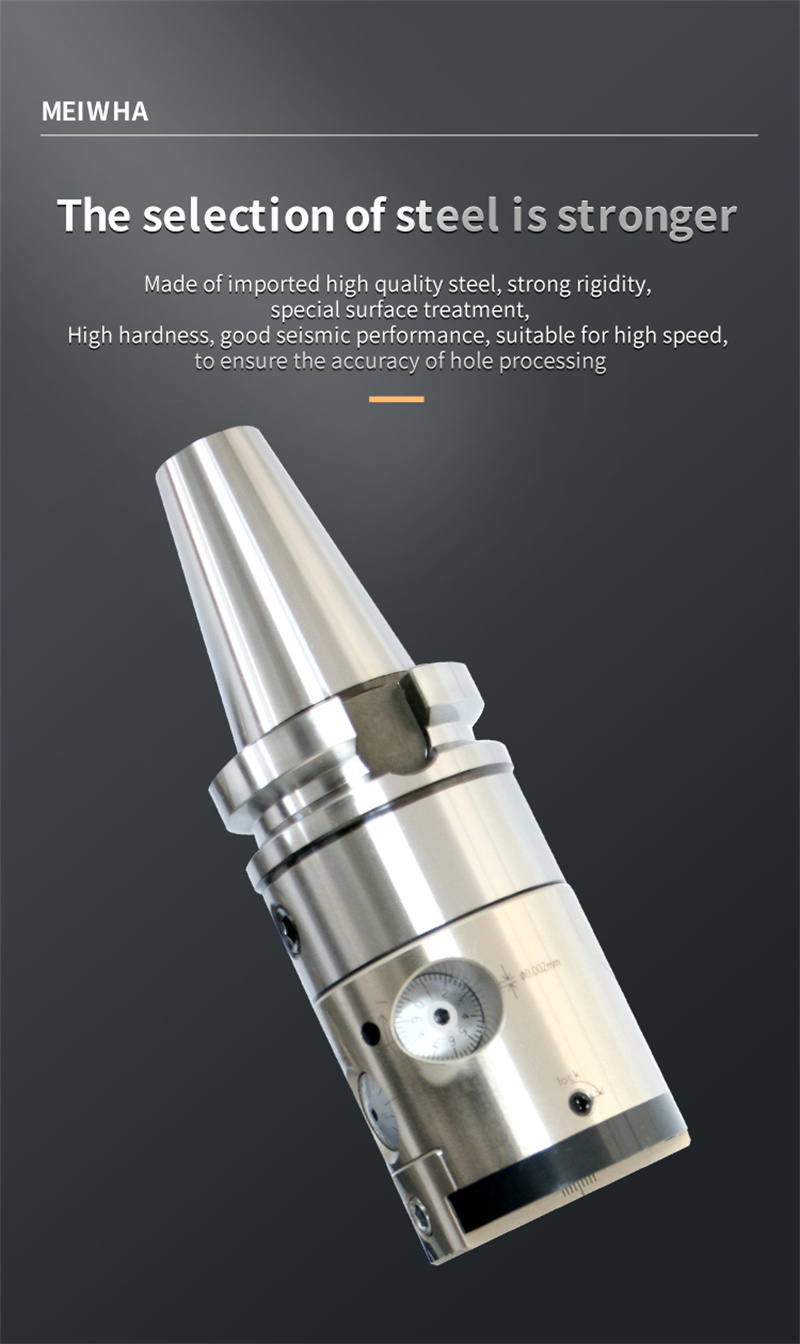

Made of imported high quality steel, strong rigidity, special surface treatment, High hardness, good seismic performance, suitable for high speed, to ensure the accuracy of hole processing

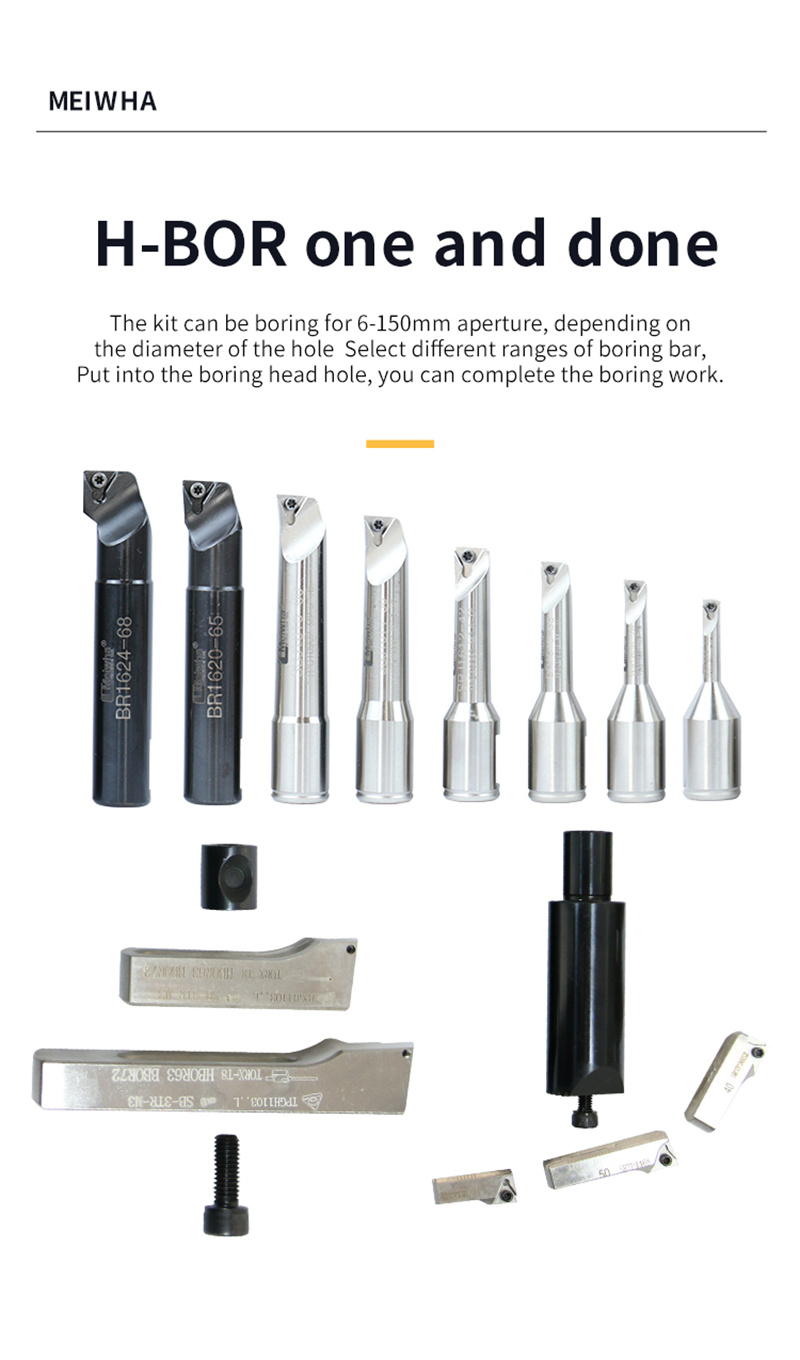

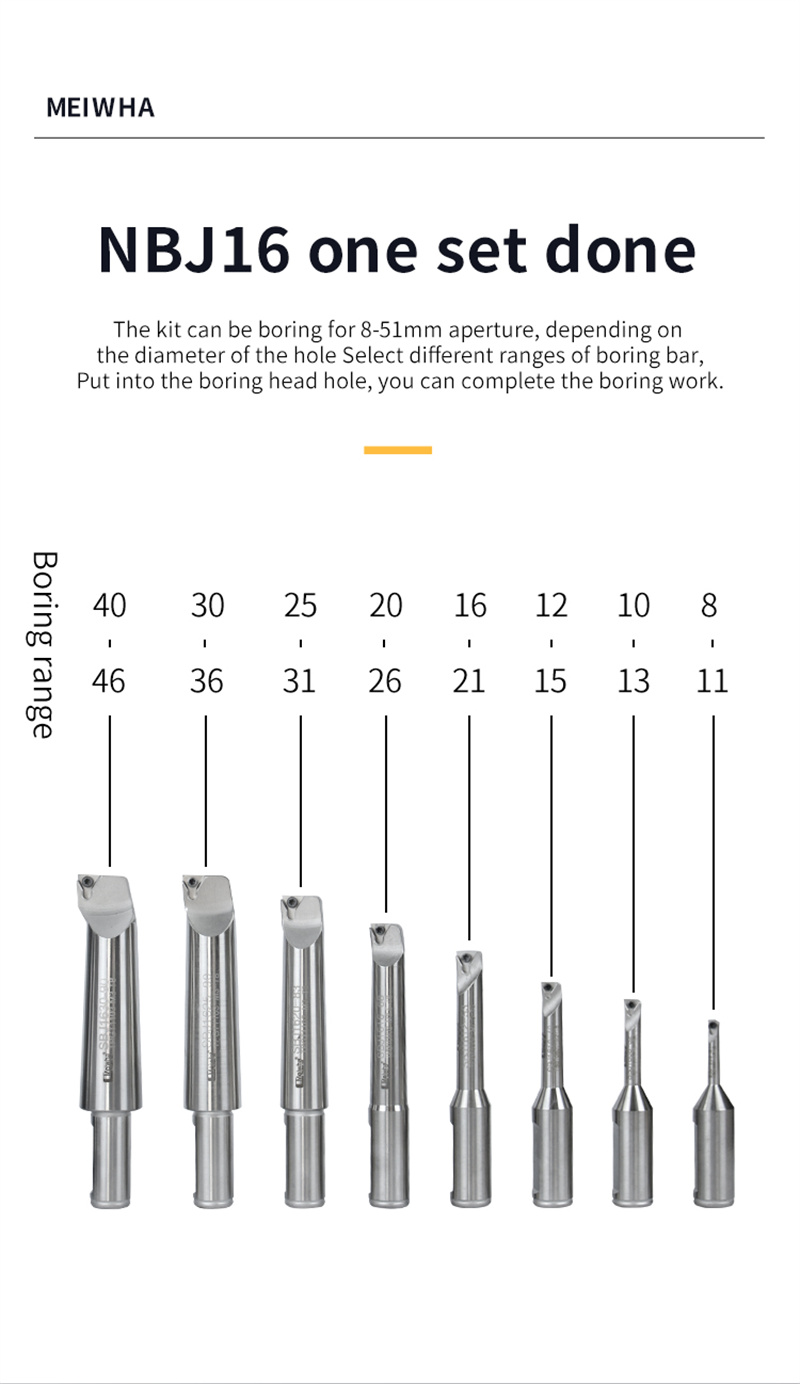

Matching Boring Bars：

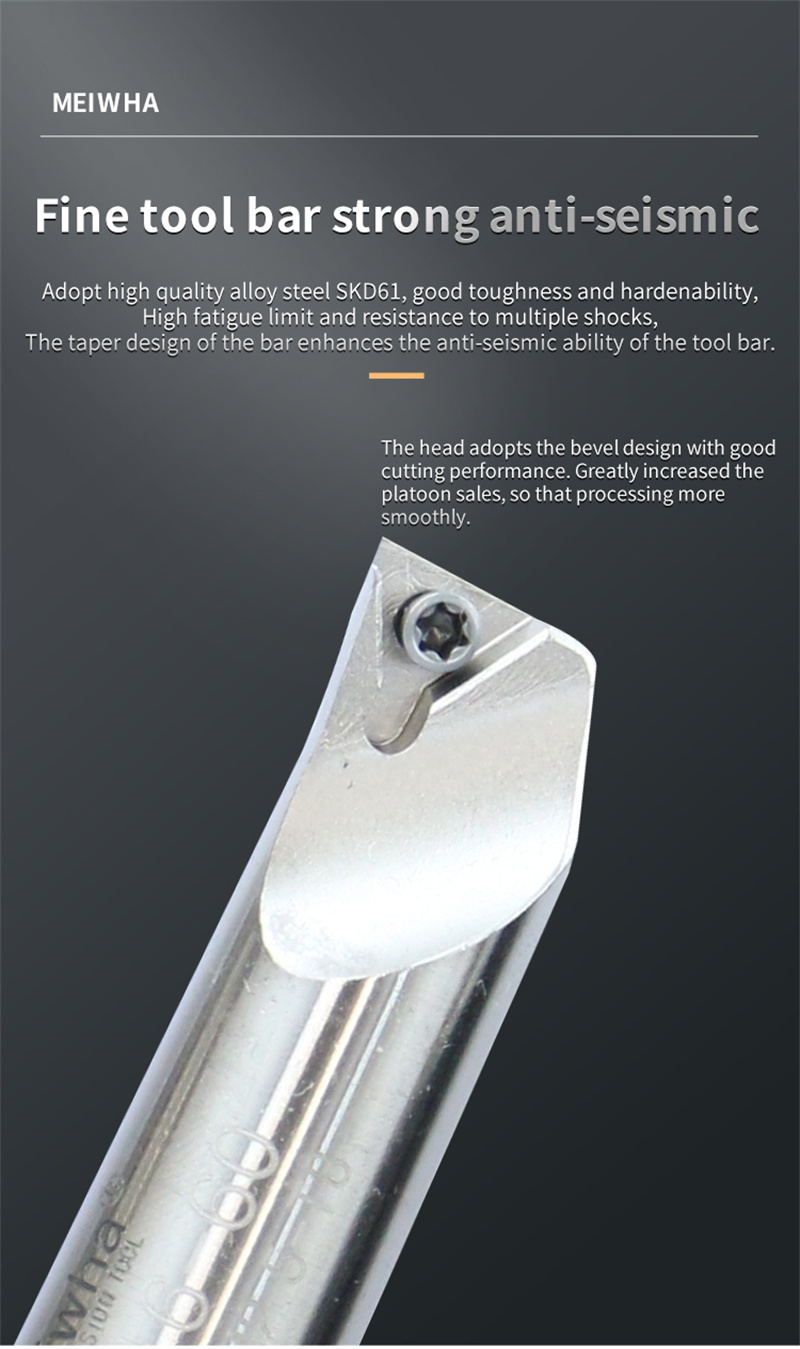

1.Adopt high quality steel SKD61, good toughness and hardenability, High fatigue limit and resistance to multiple shocks, the taper design of the bar enhances the anti-seismic ability of the tool bar.
2.The head adopts the bevel design with good cutting performance. Greatly increased the platoon sales, so that processing more smoothly.

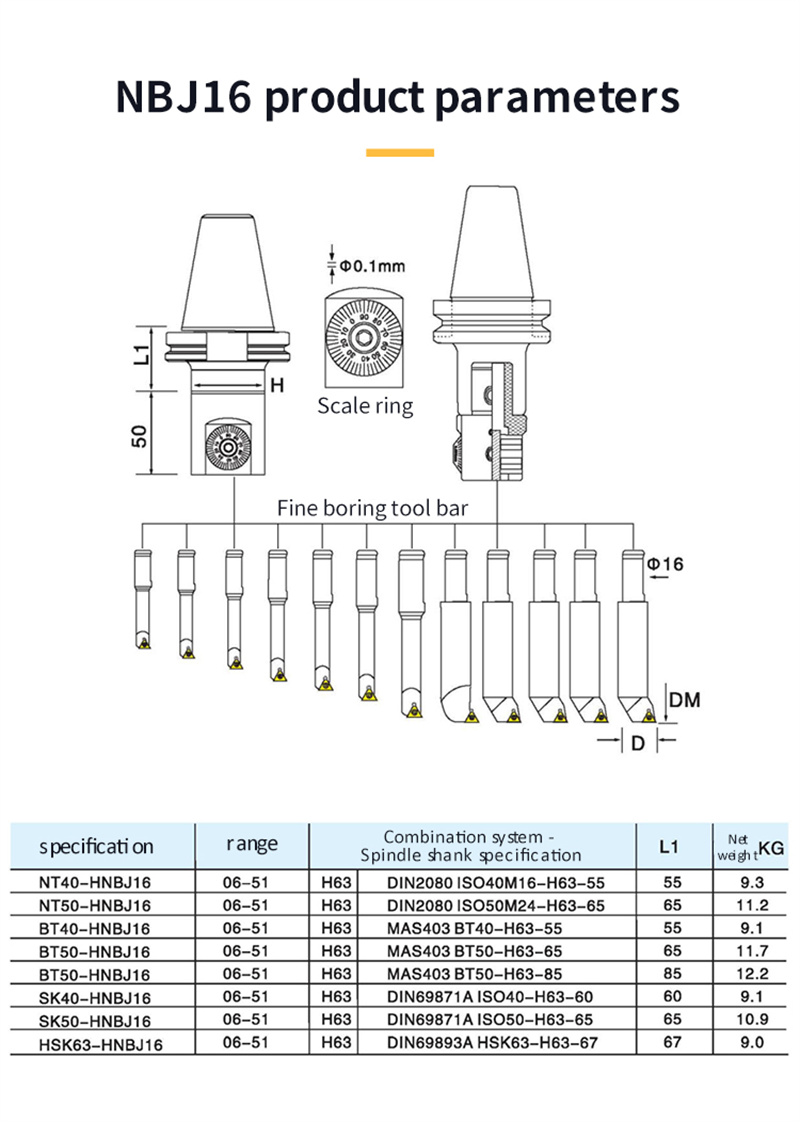

NBJ16 product parameters:
| Specification | range | Combiation system- Spindle shank specification |
L1 | Wtight(KG) | |
| NT40-NBJ16 | 06-51 | H63 | DIN2080 ISO40M16-H63-55 | 55 | 9.3 |
| NT50-NBJ16 | 06-51 | H63 | DIN2080 ISO50M24-H63-65 | 65 | 11.2 |
| BT40-NBJ16 | 06-51 | H63 | MAS403 BT40-H63-55 | 55 | 9.1 |
| BT50-NBJ16 | 06-51 | H63 | MAS403 BT50-H63-65 | 65 | 11.7 |
| BT50-NBJ16 | 06-51 | H63 | MAS403 BT50-H63-85 | 85 | 12.2 |
| SK40-NBJ16 | 06-51 | H63 | DIN69871A ISO40-H63-60 | 60 | 9.1 |
| SK50-NBJ16 | 06-51 | H63 | DIN69871A ISO50-H63-65 | 65 | 10.9 |
| HSK63-NBJ16 | 06-51 | H63 | DIN69893A HSK-H63-67 | 67 | 9.1 |
