BT-ER Holder

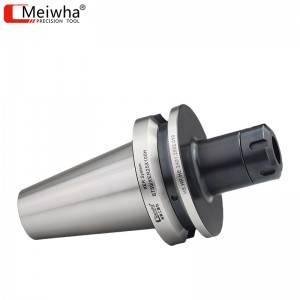

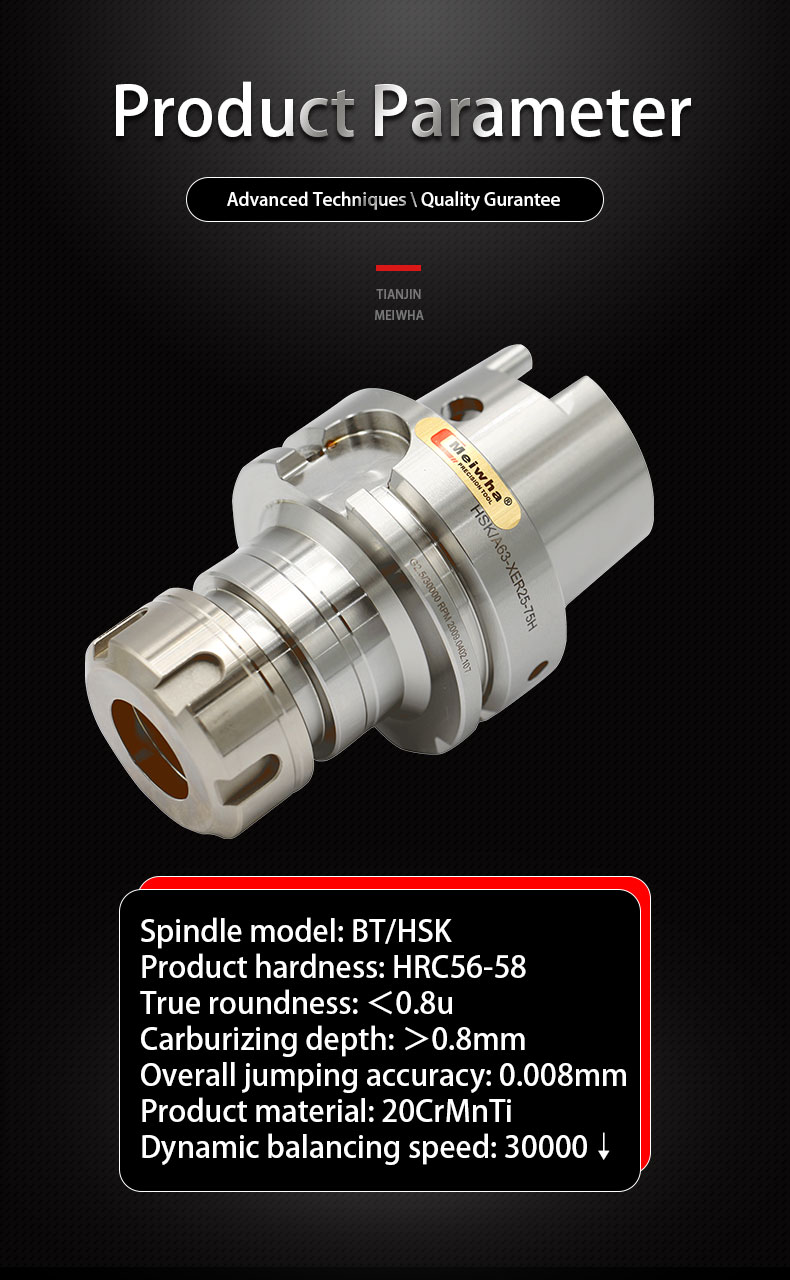

Short Description:

Spindle model: BT/HSK

Product hardness: HRC56-62

True roundness:＜0.8mm

Overall jumping accuracy: 0.008mm

Product material: 20CrMnTi

Dynamic balancing speed: 30,000

Send email to us

Product Detail

Product Tags

BT/HSK Serie

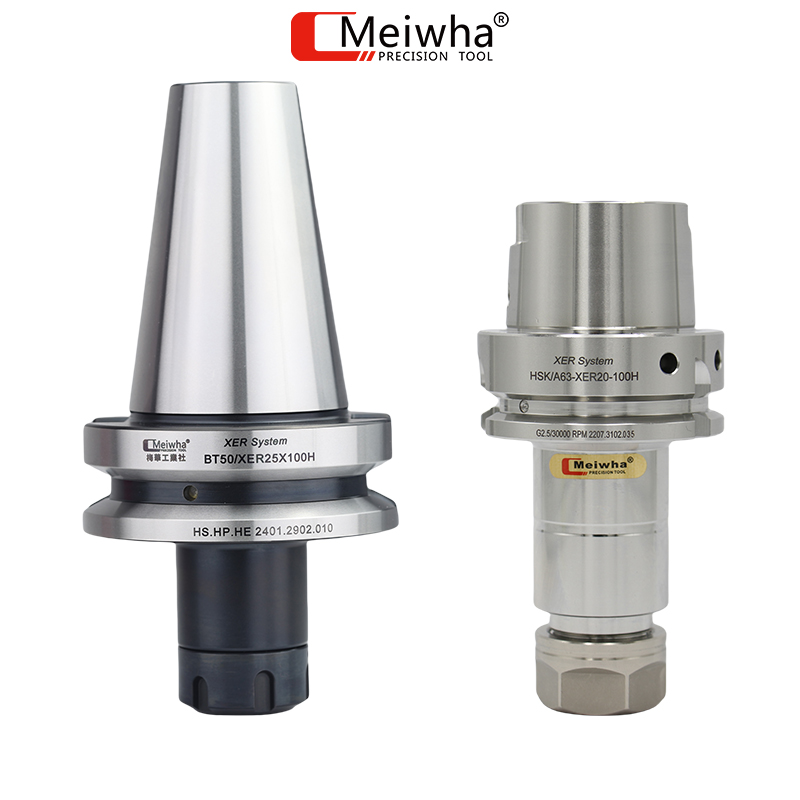

MeiWha ER Tool Holder

Large Clamping Force/High Concentricity

A tool holder can hold multiple tools.

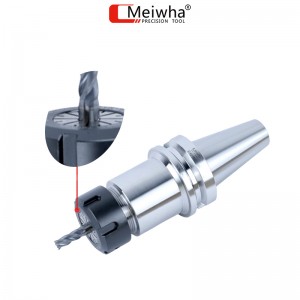

By replacing different specifications of ER spring chucks, a BT-ER tool handle can hold almost all types of straight-shaft cutting tools ranging from extremely small-diameter milling cutters, drills to larger-diameter reamers. The clamping range is extremely wide (for example, an ER32 chuck can hold tools ranging from Φ3mm to Φ20mm).

High precision and good runout accuracy

The ER jacket system is renowned for its high precision. The high-quality ER jacket itself has very small jitter errors. The cutting tools are evenly wrapped by the jacket, and the distribution of clamping force is symmetrical, which helps achieve excellent concentricity (low jitter). This is crucial for processes such as fine milling, fine boring, and reaming, as it effectively ensures the tolerance and surface finish of the machined holes.

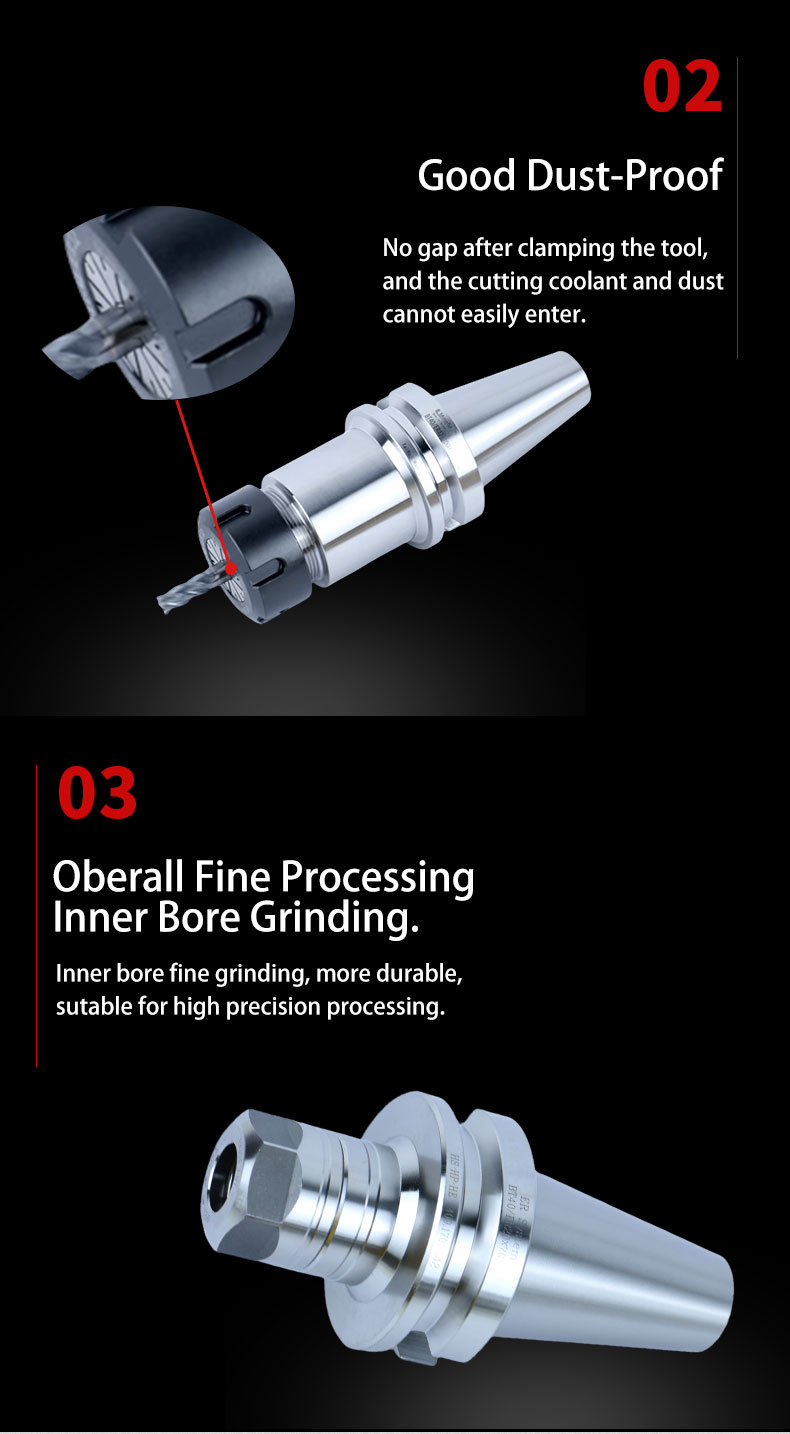

Overall Fine Processing Inner Bore Grinding.

Inner bore fine grinding, more durable,

sutable for high precision processing.

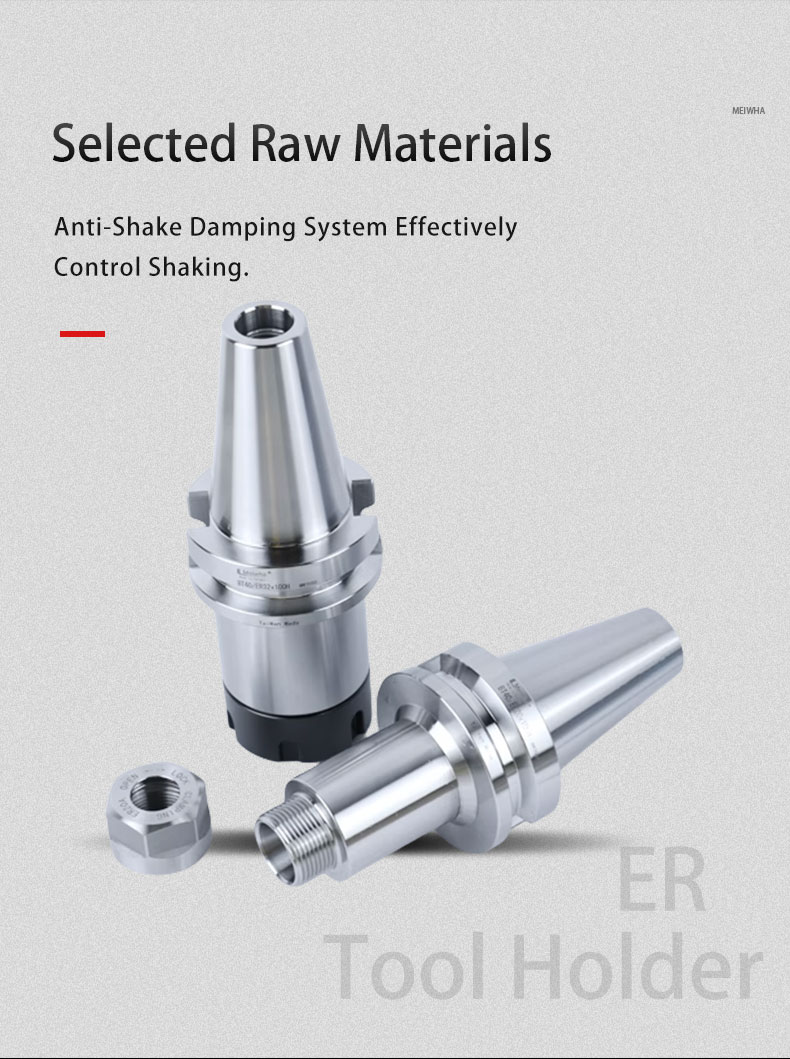

Not just on the surface, perseverance runs through everything.

We use high-quality alloy steel and undergo precise heat treatment to achieve an overall hardness of HRC 56-62° for the handle. This hardness is not merely superficial; it permeates throughout from the surface to the interior, ensuring that the tool holder, from the taper to the chuck hole, can withstand deformation, wear and fatigue under high-speed rotation and significant torque, truly demonstrating "unyielding firmness".

Meiwha ER Tool Holder Parameter Details

Cat.No		Size

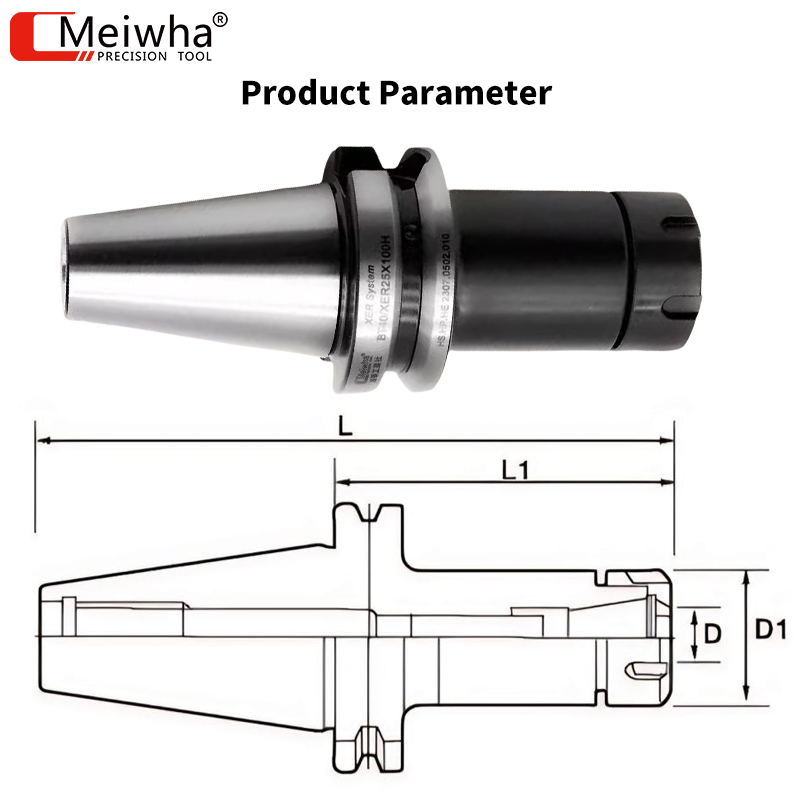

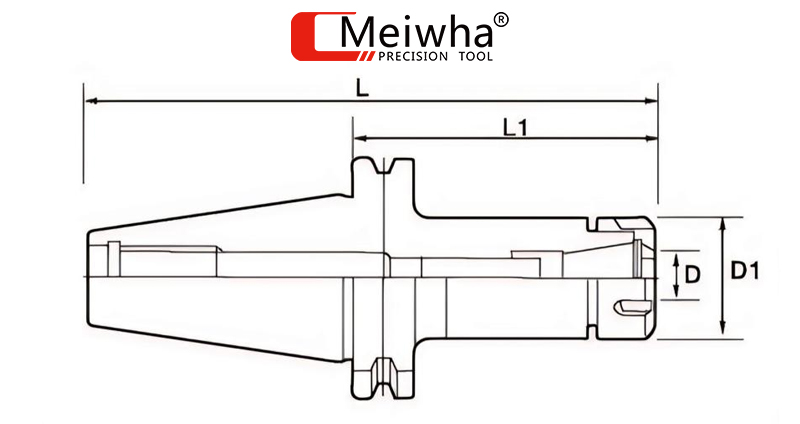

Cat.No		D1	D2	D3	L	Collet	Spanner	Weight(KG)
BT/BBT30	ER11-60L	11	19	60	118.4	ER11	ER11A-BS	0.45
	ER11-100L	11	19	100	148.4	ER11	ER11A-BS	0.55
	ER16-60L	16	28	60	118.4	ER16	ER16A-BS	0.55
	ER16-100L	16	28	100	148.4	ER16	ER16A-BS	0.8
	ER20-60L	20	34	60	118.4	ER20	ER20A-BS	0.75
	ER20-100L	20	34	100	148.4	ER20	ER20A-BS	0.85
	ER25-60L	25	42	60	118.4	ER25	ER25UM-BS	0.7
	ER25-100L	25	42	100	148.4	ER25	ER25UM-BS	1.45
	ER32-60L	32	50	60	118.4	ER32	ER32UM-BS	0.95
	ER32-100L	32	50	100	148.4	ER32	ER32UM-BS	1.05
	ER40-80L	40	63	80	128.4	ER40	ER40UM-BS	1.05
BT/BBT40	ER11-70L	11	19	70	135.4	ER11	ER11A-BS	0.95
	ER11-100L	11	19	100	165.4	ER11	ER11A-BS	1.00
	ER16-70L	16	28	70	135.4	ER16	ER16A-BS	1.20
	ER16-100L			100	165.4			1.30
	ER16-125L			125	190.4			1.35
	ER16-150L			150	215.4			1.40
	ER20-70L	20	34	70	135.4	ER20	ER20A-BS	1.40
	ER20-100L			100	165.4			1.50
	ER20-135L			135	200.4			1.67
	ER20-150L			150	215.4			1.80
	ER25-70L	25	42	70	135.4	ER25	ER25UM-BS	1.30
	ER25-100L			100	165.4			1.65
	ER25-135L			135	200.4			1.95
	ER25-150L			150	215.5			2.25
	ER32-70L	32	50	70	135.4	ER32	ER32UM-BS	1.30
	ER32-100L			100	165.4			1.70
	ER32-150L			150	215.4			2.50
	ER40-80L	40	63	80	145.4	ER40	ER40UM-BS	1.50
	ER40-100L			100	165.4			2.05
	ER40-150L			150	215.4			3.10
	ER50-80L	50	78	80	145.4	ER50	ER50UM-BS	1.70
	ER50-100L	50	78	100	165.4	ER50	ER50UM-BS	2.10
BT/BBT50	ER16-100L	16	28	100	201.8	ER16	ER16A-BS	4.30
	ER16-150L	16	28	150	251.8	ER16	ER16A-BS	4.40
	ER20-100L	20	34	100	201.8	ER20	ER20A-BS	4.30
	ER20-150L	20	34	150	251.8	ER20	ER20A-BS	4.70
	ER25-100L	25	42	100	201.8	ER25	ER25A-BS	4.40
	ER25-150L	25		150	251.8			4.70
	ER25-200L	20		200	301.8			5.50
	ER32-100L	32	50	100	201.8	ER32	ER32UM-BS	4.80
	ER32-150L			150	251.8			5.30
	ER32-200L			200	301.8			5.50
	ER40-100L	40	63	100	201.8	ER40	ER40UM-BS	4.40
	ER40-150L			150	251.8			5.20
	ER40-200L			200	301.8			6.20

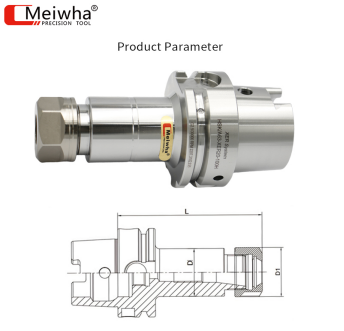

Meiwha HSK-ER Tool Holder Parameter Details

Cat.No	D	D1	L1	Clamping
HSK50A-ER25-80L	42	42	80	2-16
HSK50A-ER32-100L	50	50	100	3-20
HSK63A-ER25-75L	42	42	75	2-16
HSK63A-ER32-75L	50	50	75	3-20
HSK63A-ER40-80L	50	63	80	4-26
HSK63A-ER25-100L	42	42	100	2-16
HSK63A-ER32-100L	50	50	100	3-20
HSK63A-ER40-100L	50	63	100	4-26
HSK63A-ER25-120L	42	42	120	2-16
HSK63A-ER32-120L	50	50	120	3-20
HSK63A-ER40-120L	50	63	120	4-26
HSK63A-ER25-200L	42	42	200	2-16
HSK63A-ER32-200L	50	50	200	3-20
HSK63A-ER40-200L	50	63	200	4-26
