Next-Gen Mold Manufacturing Technology

Electric Tapping Machine For Precision Mold Machining

Intelligent servo-driven threading solutions engineered for ultra-precise tool & die tooling, high-hardness mold plates, deep cavity threading, and zero-defect structural integrity.

Precision Tapping & Core Tooling Systems

Essential Machinery For High-Precision Mold Threading

Integrate intelligent articulate electric tapping arms and high-performance complementary tooling directly into your die shop workflow to eradicate tap breakage and optimize mold block throughput.

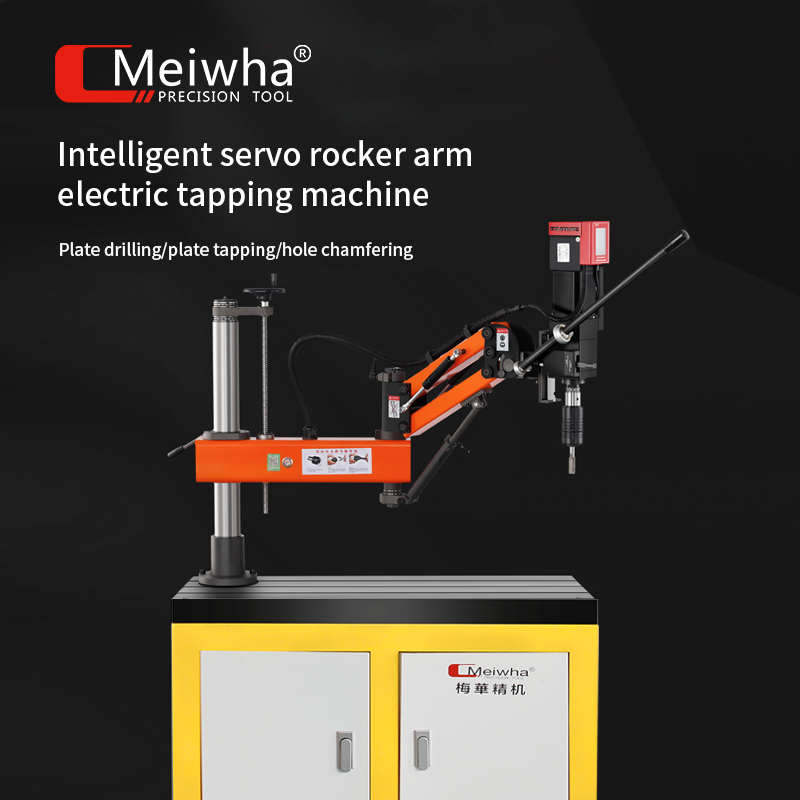

Drill Tapping Machine for Mold Machining

CNC & Servo Controlled

BT-APU Integrated Drill & Tapping Chuck

Industrial Landscape & Technical Analysis

The Strategic Role of Electric Tapping Machines in Modern Mold Machining

The global precision mold and die manufacturing sector has entered an era governed by microscopic tolerances, increasingly tough alloy formulations, and aggressive production timelines. Modern injection molds, hot-runner manifolds, progressive stamping dies, and high-pressure die-casting (HPDC) tooling are manufactured from ultra-durable steels such as NAK80, SKD11, SKD61, H13, and pre-hardened P20. While multi-axis CNC machining centers deliver sub-micron precision across complex cavity contours, utilizing an expensive 5-axis vertical machining center merely to perform drilling and tapping operations represents an operational bottleneck. This is precisely where the specialized electric tapping machine has transformed toolroom economics and engineering precision.

In historical toolroom configurations, mold shops relied heavily on either pneumatic tapping arms or manual hand-tapping jigs. Pneumatic arms suffer from volatile torque spikes, high air compressor power consumption, erratic RPM regulation, and a complete absence of depth positioning feedback. Hand tapping, on the other hand, introduces human error, micro-axial misalignments, uneven torque application, and inevitable tap breakage deep inside high-value mold bases. The arrival of the servo-driven electric tapping machine has rendered these antiquated methods obsolete, replacing them with closed-loop digital torque management, micrometer-level digital depth stops, and instantaneous overload release.

Intelligent Servo Torque Control

Equipped with brushless AC servo drives, electric tapping systems continuously monitor torsional resistance. When cutting hardened alloy steels like Cr12MoV or D2, the system senses tap binding in real-time, executing automatic chip-clearing oscillation cycles before destructive shear thresholds are exceeded.

Digital Sub-Millimeter Depth Repeatability

Blind holes in injection mold ejector plates and runner blocks demand exact thread depth to guarantee hydraulic cylinder and fastener bottoming security. Programmable digital controls allow moldmakers to set exact depth parameters with ±0.05mm repeatability, stopping and reversing automatically.

Multi-Axis Flexible Articulation

Featuring high-tensile balanced dual-arm aluminum linkages and 360-degree universal indexing heads, operators can seamlessly tap vertical mold faces, lateral water cooling channels, and complex angular lifter mounting holes without secondary workpiece realignment.

85%

CNC Machine Time Saved

0.02s

Servo Torque Response

< 0.1%

Tap Breakage Rate

M3 - M36

Universal Thread Range

Deep Application Scenarios

Engineering Use Cases in High-Precision Mold & Tooling Environments

From deep thermal regulation water lines to ultra-dense ejector pin plates, electric tapping technology handles the toughest structural challenges across mold engineering.

1. Waterline Cooling Channels & High-Pressure Manifolds

In thermal management design for plastic injection and die-casting molds, cooling channels are drilled deep into mold plates to achieve uniform heat dissipation. These circuits require BSP, NPT, or metric pipe threads (such as G1/8, G1/4, G1/2) to seat high-pressure brass plugs and quick-disconnect fittings. Because cooling lines are frequently drilled from the mold periphery or at compound angles, moving a 4,000 kg mold base back onto a CNC machine table simply to tap lateral water ports incurs prohibitive setup hours. An articulated electric tapping machine with a universal multi-position head maneuvers directly around the fixture, generating hermetically sealed pipe threads with pristine crest profiles that eliminate pressurized water leakage.

2. Blind Hole Threading in High-Hardness Ejector Plates

Ejector retainers, stripper plates, and support pillar bolting grids feature dozens—often hundreds—of blind threaded holes. A tap fracturing within a 55 HRC pre-treated mold plate triggers costly EDM spark erosion extraction or can even result in scrapping an entire base plate. With digital torque overload clutches, the electric tapping machine continuously evaluates chip packing. Should cutting chips clog the spiral flute, the servo driver detects current deviation and reverses the spindle by 1.5 pitch increments before resuming clockwise cutting, guaranteeing 100% thread integrity across deep blind holes.

3. Progressive Stamping Dies & Punch Retainers

High-speed stamping dies experience relentless cyclical impact, demanding exceptional fastener engagement shear strength. Fasteners holding tungsten carbide punch inserts and die guide bushings must be threaded perpendicular to the ground datum within minutes of arc deviation. The rigid parallel linkage of precision electric tapping machines enforces dead-square axial entry, mitigating thread pitch distortion, loose thread tolerances, and fastener fatigue failure under millions of stamping cycles.

4. Large Die Base Secondary Operations Off-Machine

Modern lean tooling strategies enforce that high-capital CNC machining centers must run exclusively on high-value contouring and cavity roughing/finishing operations. Delegating M4 through M36 tapping tasks to a dedicated electric tapping cell right next to the inspection bench frees up CNC spindle hours by up to 35%. Mold bases move smoothly from CNC roughing directly to bench assembly, where an operator can single-handedly tap all clamping slots, lifting eyebolt threads (M20-M36), and slide retainer fasteners in a fraction of the traditional cycle time.

Manufacturing Excellence

Tianjin MeiWha Precision Machinery Co., Ltd.

Founded in June 2005, Tianjin MeiWha is an elite manufacturer specializing in complete precision NC cutting solutions, CNC toolholders, solid carbide end mills, high-performance taps, and electric tapping machines.

World-Class Tooling & Machinery Engineering

Tianjin MeiWha Precision Machinery Co., Ltd. was established to provide the global manufacturing and toolmaking industry with uncompromised machining solutions. Our product ecosystem encompasses NC milling tools, cutting tools, turning tools, advanced toolholders, solid carbide end mills, machine taps, specialized drills, electric tapping machines, end mill grinders, measuring instruments, and complete CNC accessories.

Our modern headquarters is situated in Jingzhong Industrial Park, Dongli District, Tianjin, spanning over 5,000 square meters of production and testing facilities, backed by 1,500 square meters of contemporary research and administrative office space. Through strategic branch offices, direct factory centers, and certified international distributors, MeiWha solutions are exported globally to Switzerland, France, the UAE (Dubai), South Africa, India, the Philippines, Thailand, and across the Americas.

Proven Track Record: Delivering over a million certified precision cutting tools and machine accessories to satisfied industrial clients since 2005.
Research Institute Partnerships: Established strategic collaborations with Tianjin Jinhang Institute of Physics and Beijing Fangshan Bridge 14th Bureau.
One-Stop Mold Shop Sourcing: Seamlessly integrating cutting tools, toolholders, and electric tapping machinery for ultimate workshop productivity.

Tianjin MeiWha Modern Manufacturing Workshop

Tianjin MeiWha Precision CNC Inspection Laboratory

Quality Commitment & Accreditations

Certified Rigor Behind Every Precision Component

Our standard tools adhere to rigorous international quality criteria, enabling verified process optimization across high-precision drilling, milling, countersinking, reaming, and rigid tapping.

With continuous investment in multi-axis grinding centers, optical measuring machines, and strict metallurgical testing, Tianjin MeiWha guarantees that every tap, end mill, toolholder, and tapping unit delivers exact concentricity, superior surface finish, and extended tool life even in the most abrasive mold alloy steels.

Worldwide Industry Engagement

Exhibitions & Global Technology Exchange

Tianjin MeiWha actively participates in premier manufacturing, mold making, and advanced tooling expos worldwide, connecting directly with moldmakers, automotive engineers, and aerospace toolrooms.

MeiWha Industrial Exhibition Showcase 02

MeiWha Industrial Exhibition Showcase 09

MeiWha Industrial Exhibition Showcase 11

MeiWha Industrial Exhibition Showcase 01

MeiWha Industrial Exhibition Showcase 10

MeiWha Industrial Exhibition Showcase 08

MeiWha Industrial Exhibition Showcase 03

MeiWha Industrial Exhibition Showcase 05

MeiWha Industrial Exhibition Showcase 04

High-Precision Tooling Systems

Featured CNC Tool Holders & Accessories for Mold Shops

Complete your high-speed mold machining and tapping setup with our ultra-rigid tool clamping systems, shrink fit extensions, driven toolholders, and chip cleaning solutions.
