Advanced Precision Threading & Clamping Technology

Flexible Arm Tapping Machine For High Precision Tool Clamping

Engineered for extreme torque repeatability, anti-breakage chucking reliability, and multi-axis flexibility across demanding aerospace, automotive, and high-hardness die manufacturing.

Featured Clamping & Machining Systems

Core Tooling Innovations For High Precision Tapping

SNMG Meiwha CNC Turning Inserts Series

65HRC High Speed High Hardness Flat Milling Cutter

Flexible Arm Tapping Machine

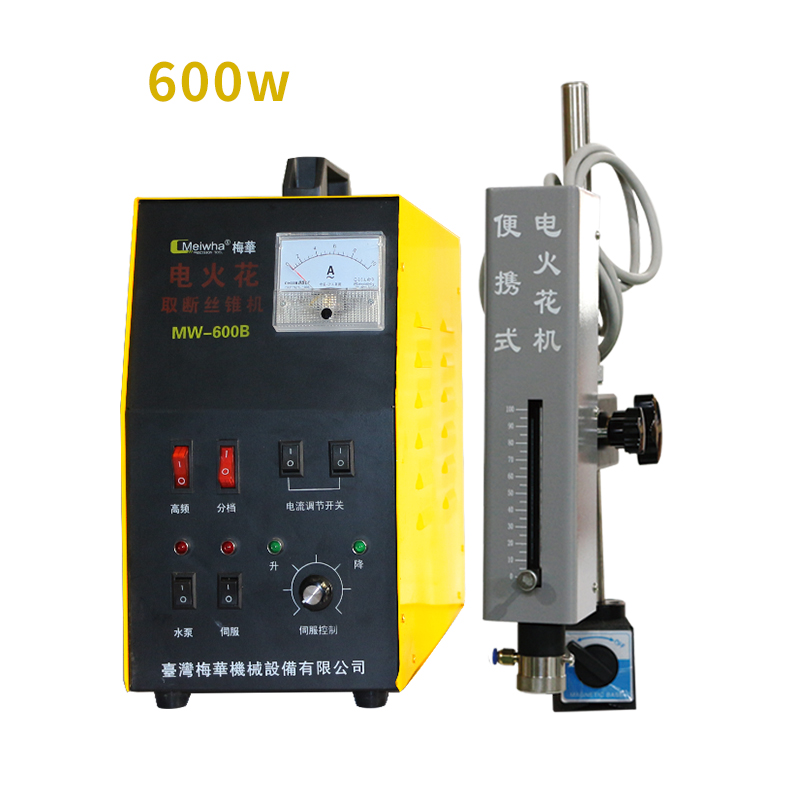

Portable EDM Machine

Industrial Landscape & Evolution

The Paradigm Shift in High-Precision Tool Clamping & Flexible Tapping

In contemporary manufacturing ecosystems, the demand for thread integrity and concentricity has escalated exponentially. As structural components in electric vehicles (EV), aerospace turbines, precision medical implants, and micro-injection molds shift toward hardened alloys and composite metals, traditional internal threading faces severe bottlenecks. Rigid vertical machining centers (VMCs), while fast and automated, carry an exorbitant hourly spindle cost. Allocating multi-million-dollar 5-axis CNC machining centers to perform routine M2 through M36 tapping operations not only increases machine cycle times but also introduces severe risks of tap breakage inside deep pocket features, often resulting in scrapped high-value workpieces.

To address this challenge, the modern machining shop is standardizing on the Flexible Arm Tapping Machine For High Precision Tool Clamping. By decoupling secondary thread cutting and precision blind-hole tapping from the primary spindle and relocating it to a dedicated articulated-arm workstation equipped with dynamic torque-limiting collets and hydro-pneumatic or electric servo-driven arms, machine shops reclaim valuable CNC spindle cycle time. Simultaneously, operators achieve frictionless 360-degree radial reach, perpendicular self-aligning geometry, and micro-vibration dampening that manual magnetic drill presses or hand tapping fixtures simply cannot match.

Radial Articulation & Reach

Multi-jointed, gas-spring counterbalanced arms deliver effortless positioning across work envelopes exceeding 1800mm radius. This eliminates repositioning heavy machine beds or fixtures for massive components.

High-Precision Tool Clamping

Equipped with safety overload clutch collets and runout tolerances controlled within 0.005mm. The clamping mechanism instantly slips when torque thresholds are breached, preventing tap fracture in hardened steels.

Intelligent Servo Dynamics

Digital CNC touchscreen interfaces govern depth control, automatic reverse cycles, pitch sync, and multi-stage peck tapping, guaranteeing threads conform precisely to Class 6H, 2B, or 3B aerospace requirements.

< 0.005mm

Clamping Radial Runout

78%

CNC Spindle Relieved Time

99.8%

Tap Breakage Prevention

Up to 65HRC

Substrate Machinability

Engineering Precision

Micro-Kinematic Clamping and Dynamic Torque Control

The fundamental differentiator between an ordinary tapping fixture and a professional Flexible Arm Tapping Machine For High Precision Tool Clamping lies in the chuck interface and joint stabilization kinematics. When an oversized tap engages with difficult-to-cut superalloys such as Inconel 718 or Titanium Gr. 5, cutting forces exert intense lateral twisting forces. If the clamping chuck exhibits radial play, the tap suffers eccentric tooth wear, leading to thread dilation, rough micro-finishes, and catastrophic tool seizure.

MeiWha's advanced clamping architecture utilizes rapid-change spring-loaded collets paired with ball-bearing torque-limiting safety mechanisms. Every individual tap size (whether metric standard, fine, UN, or BSP/NPT pipe threads) is paired with a calibrated torque slip setting. In the event of chip compaction, bottoming in blind holes, or material hardness variations, the clamping collet decouples within 0.002 seconds. The articulated arm absorbs torsional kickback via reinforced aviation-grade aluminum extrusion arms, shielding the operator from strain and ensuring the thread axis maintains absolute 90-degree squareness.

Furthermore, modern iterations integrate smart digital sensors capable of logging cutting torque profiles in real time. This Industry 4.0 capability allows manufacturing engineers to predict tap wear before geometric micro-flaking damages internal threads, bringing intelligent condition-based maintenance into small-to-mid batch production environments.

End-to-End Solutions

Deep Application Scenarios Across Mission-Critical Sectors

Aerospace & Defense Components

Titanium alloy structural bulkheads, turbine casing flanges, and avionics mounting plates require flawless thread execution. Rigid arm stabilization paired with high-performance MeiWha coated taps guarantees zero thread strip-out under extreme g-forces and thermal cycles.

Automotive & EV Powertrain

From aluminum motor stator housings and battery enclosure sub-frames to heavy transmission clutch rings. Rapid pitch changeover allows high-volume production lines to tap various diameters across varied spatial planes in seconds without refixturing.

Die & Injection Mold Bases

Tapping hardened P20, H13, or Nak80 tool steels up to 55-65HRC demands substantial torque resistance. Flexible arm systems deliver unyielding axial squareness for deep cooling water jackets and lifter pin retaining holes, eliminating tap deflection.

Heavy Machinery & Infrastructure

Large fabricated bridge girders, hydraulic excavator manifolds, and pressure vessel flanges are virtually impossible to position under standard CNC drill tap spindles. Articulated arm tapping brings the tool directly to the massive workpiece with extreme maneuverability.

Medical Device Hardware

Surgical guide arms, titanium bone plate fixtures, and hospital imaging frames require micro-tapping from M1 to M4 with micron-level radial concentricity. Our ultra-precise collets protect against micro-burrs and thread galling in cleanroom manufacturing.

Broken Tap Extraction & EDM Support

In rare cases of manual mishandling or extreme material voids causing tap breakage, our specialized portable EDM machine integrates into the workflow to quickly disintegrate broken tooling non-destructively, preserving complex workpieces.

Enterprise Strength & Heritage

Tianjin MeiWha Precision Machinery Co., Ltd.

Our Product & Global Footprint

Tianjin MeiWha Precision Machinery Co., Ltd was founded in June 2005. It is a professional manufactory which engaged in all kinds of NC cutting tools, include Milling tools, Cutting Tools, Turning Tools, Tool holder, End Mills, Taps, Drills, Tapping Machine, End Mill Grinder machine, Measuring tools, Machine tool accessories and other products.

Our company is located in Jingzhong Industrial park, Dongli District, Tianjin, covering an area of more than 5000 square meters, with 1500 square meters of modern office space. Branches, direct stores, subordinate branch agents or special distributors are arranged in various regions to form outlet distribution services. At the same time, MeiWha products export include Dubai, The United Arab Emirates, Switzerland, France, South Africa, India, The Philippines, Thailand and so on.

Our Quality Standard

Our standard tools meet the highest quality standards, which we have been able to prove a million times to satisfied customers since 2005. With our mature product portfolio we offer solutions for the tasks around drilling, milling, countersinking and reaming. With high commitment and ambition we continue to develop and optimize our solid carbide line. The excellent technical properties as well as the availability which can be viewed online offer our customers and partners the best conditions for optimizing their processes.

Certificates of Honor & Industry Qualifications

Our Strategic Advantages & Research Alliances

The company combines industry advantages, integrates product resources, and inherits all customer-oriented business concepts, only provides customers with the right products, and provides customers with one-stop procurement services. At the same time, with excellent product quality, precise delivery time, reasonable and competitive prices, it has won the approval of the industry and the support of our customers.

It has established long-term strategic cooperation with many domestic and foreign research institutes and enterprises, such as Tianjin Jinhang Institute of Physics and Beijing Fangshan Bridge 14th Bureau. The company will further rely on its own advantages and strong strength, exert a better brand effect, adhere to the quality policy of "providing customers with satisfactory products with continuous improvement in management and technology", and strive to provide better products and services to new and old customers at local market and abroad.
