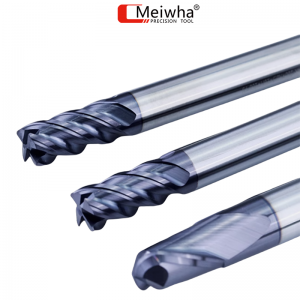

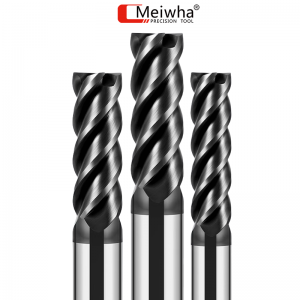

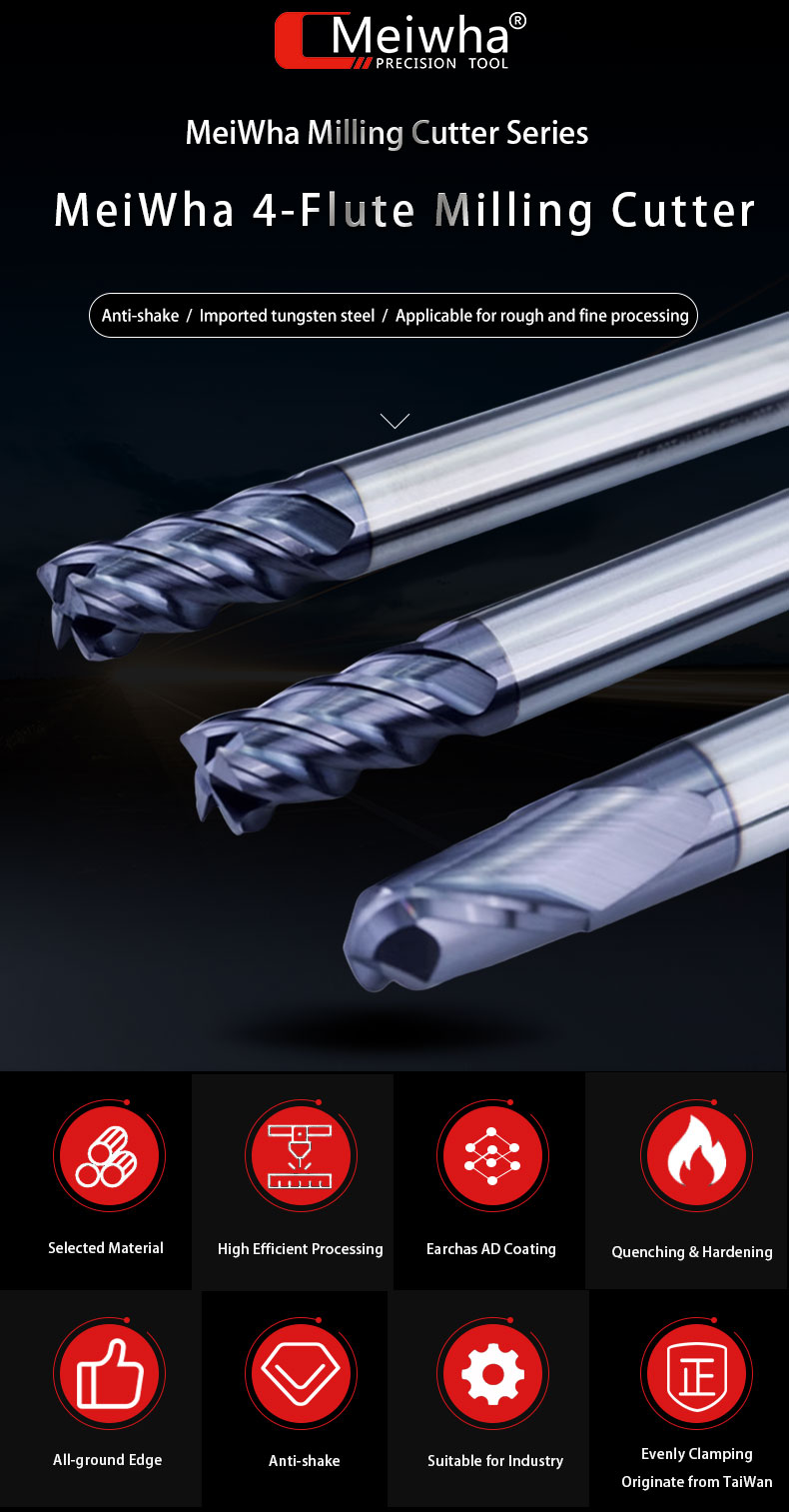

Heavy-duty Flat Bottom Milling Cutter CNC Milling For Titanium Alloy

Short Description:

·Product Material: Tungsten Carbide has the advantages of high hardness, wear resistance, toughness and corrosion resistance. It also has stronger heat resistance than HSS, so it can maintain hardness even at high temperature. Tungsten steel is mainly composed of tungsten carbide and cobalt, accounting for 99% of all components. Tungsten steel is also called cemented carbide and is considered to be the teeth of modern industry.


Product Detail

Product Tags

·This type of milling cutter can be used for processing: stainless steel, carbon steel, SDK series alloy steel, abrasive steel and etc.

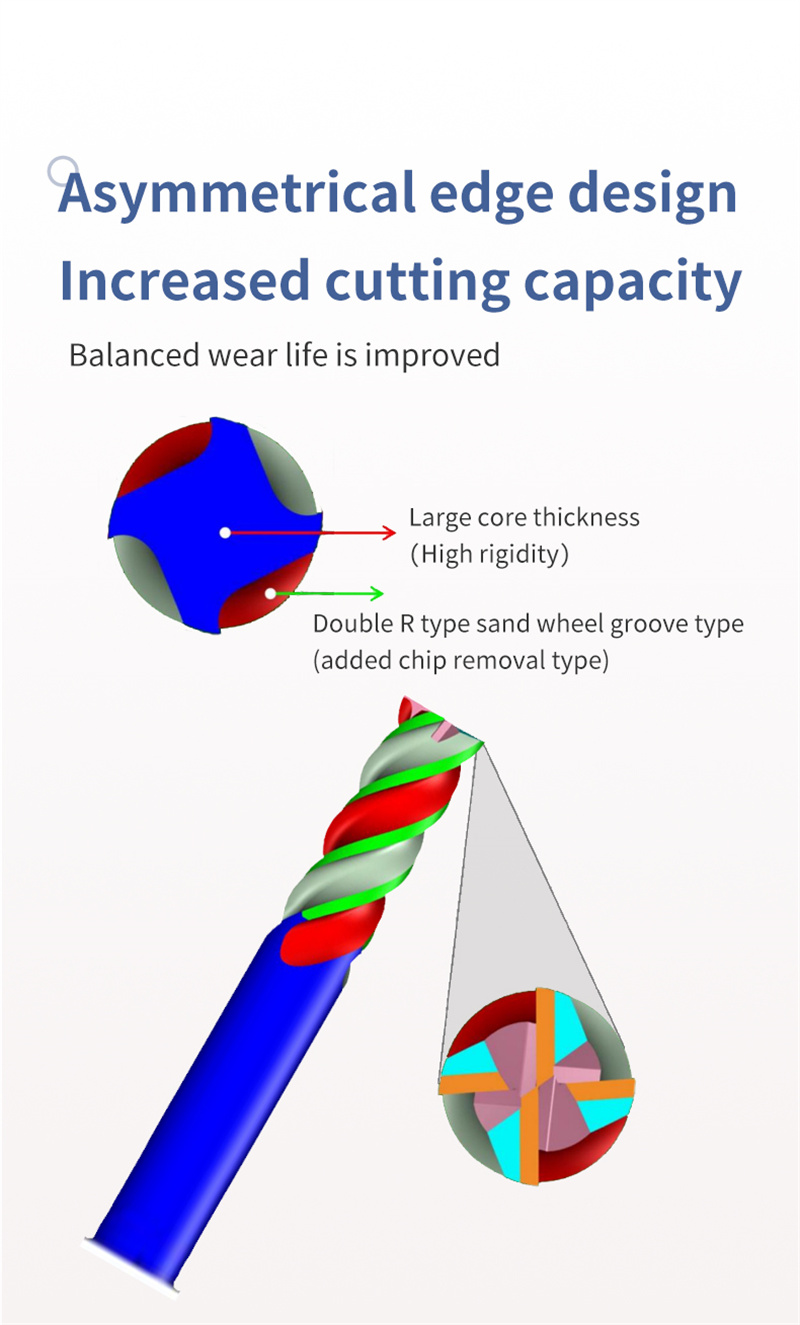

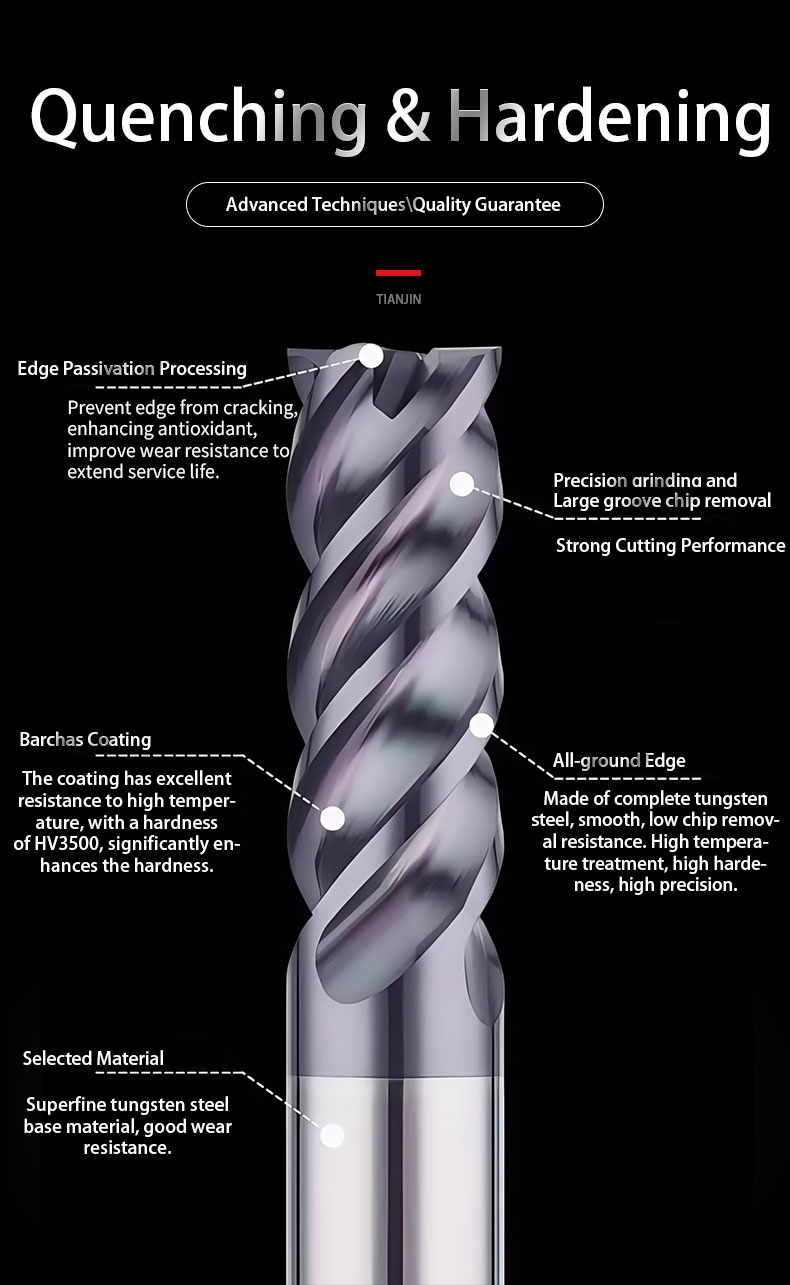

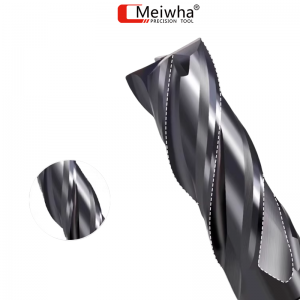

·Product Detail design: High-precision cutting edge with suitable negative forefoot design, taking into account the strength and sharpness of the cutting edge. At the same time, the large core diameter is used to enhance the rigidity of the tool and make the cutting and chip removal stable.

·Wide Application square nose end mills: It can be used on many fields, such as metal processing, CNC machining and engineering using. Large chip flute design for smoother chip removal, making the workpiece smoother and brighter.

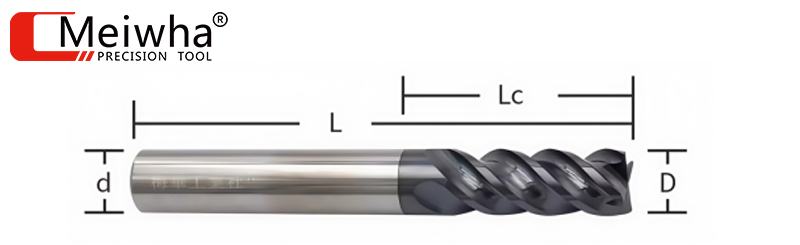

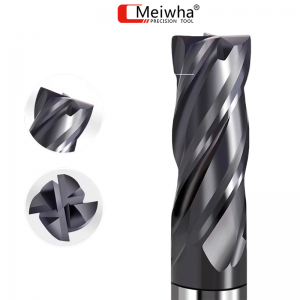

End Milling Tools
型号
Model number
外径(D)
Outer diameter
刃长(Lc)
Blade length
全长(L)
Full length
柄径(d)
Handle diameter
FW-D1*3H*d4*50L 1 3 50 4
FW-D1.5*5H*d4*50L 1.5 5 50 4
FW-D2*6H*d4*50L 2 6 50 4
FW-D2.5*8H*d4*50L 2.5 8 50 4
FW-D3*9H*d4*50L 3 9 50 4
FW-D3*9H*d3*50L 3 9 50 3
FW-D3*9H*d6*50L 3 9 50 6
FW-D4*12H*d4*50L 4 12 50 4
FW-D4*12H*d6*50L 4 12 50 6
FW-D5*13H*d6*50L 5 13 50 6
FW-D6*15H*d6*50L 6 15 50 6
FW-D6*25H*d6*75L 6 25 75 6
FW-D6*25H*d6*100L 6 25 100 6
FW-D8*20H*d8*60L 8 20 60 8
FW-D8*32H*d8*100L 8 32 100 8
FW-D8*50H*d8*150L 8 50 150 8
FW-D10*25H*d10*75L 10 25 75 10
FW-D10*40H*d10*100L 10 40 100 10
FW-D10*55H*d10*150L 10 55 150 10
FW-D12*30H*d12*75L 12 30 75 12
FW-D12*50H*d12*100L 12 50 100 12
FW-D12*60H*d12*150L 12 60 150 12
FW-D14*40H*d14*100L 14 40 100 14
FW-D15*45H*d16*100L 15 45 100 16
FW-D16*45H*d16*100L 16 45 100 16
FW-D20*50H*d20*100L 20 50 100 20

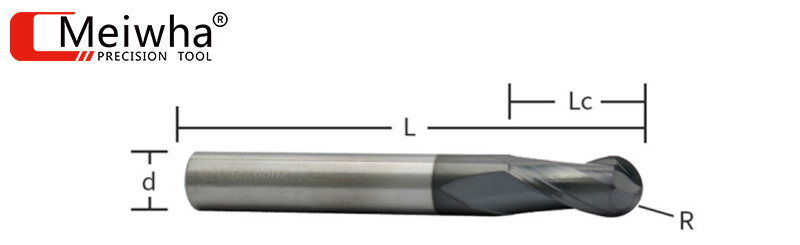

Ball End Milling
型号
Model number
外径(D)
Outer diameter
刃长(Lc)
Blade length
R角(R)
R-angle
全长(L)
Full length
柄径(d)
Handle diameter
FW-R0.5*2H* d4*50L 1 2 0.5 50 4
FW-R0.75*3H* d4*50L 1.5 3 0.75 50 4
FW-R1*4H* d4*50L 2 4 1 50 4
FW-R1.5*6H* d4*50L 3 6 1.5 50 4
FW-R1.5*6H* d6*50L 3 6 1.5 50 6
FW-R2*8H* d4*50L 4 8 2 50 4
FW-R2*8H* d6*50L 4 8 2 50 6
FW-R2*8H* d4*75L 4 8 2 75 4
FW-R2.5*10H* d6*50L 5 10 2.5 50 6
FW-R3*12H* d6*50L 6 12 3 50 6
FW-R3*12H* d6*75L 6 12 3 75 6
FW-R3*12H* d6*100L 6 12 3 100 6
FW-R4*16H* d8*60L 8 16 4 60 8
FW-R4*16H* d8*75L 8 16 4 75 8
FW-R4*16H* d8*100L 8 16 4 100 8
FW-R5*20H* d10*75L 10 20 5 75 8
FW-R5*20H* d10*100L 10 20 5 100 10
FW-R6*24H* d12*75L 12 24 6 75 10
FW-R6*24H* d12*100L 12 24 6 100 12

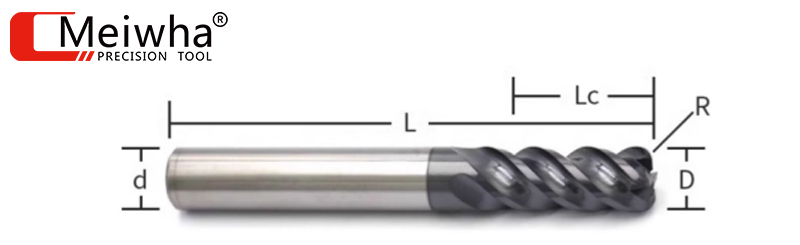

Ball Nose End Mill
型号
Model number
外径(D)
Outer diameter
刃长(Lc)
Blade length
R角(R)
R-angle
全长(L)
Full length
柄径(d)
Handle diameter
FW-D1.5*R0.2*4H* d4*50L 1.5 4 0.2 50 4
FW-D2*R0.2*5H* d4*50L 2 5 0.2 50 4
FW-D3*R0.2*8H* d4*50L 3 8 0.2 50 4
FW-D3*R0.5*8H* d4*50L 3 8 0.5 50 4
FW-D3*R1*8H* d4*50L 3 8 1 50 4
FW-D4*R0.2*10H* d4*50L 4 10 2 50 3
FW-D4*R0.5*10H* d4*50L 4 10 5 50 6
FW-D4*R1*10H* d4*50L 4 10 1 50 4
FW-D6*R0.2*15H* d6*50L 6 15 2 50 6
FW-D6*R0.5*15H* d6*50L 6 15 5 50 6
FW-D6*R1*15H* d6*50L 6 15 1 50 6
FW-D8*R0.2*20H* d8*60L 8 20 2 60 8
FW-D8*R0.5*20H* d8*60L 8 20 5 60 8
FW-D8*R1*20H* d8*60L 8 20 1 60 8
FW-D8*R2*20H* d8*60L 8 20 2 60 8
FW-D10*R0.2*25H* d10*75L 10 25 0.2 75 10
FW-D10*R0.5*25H* d10*75L 10 25 0.5 75 10
FW-D10*R0.5*25H* d10*100L 10 25 0.5 100 10
FW-D10*R0.5*40H* d10*150L 10 40 0.5 150 10
FW-D10*R1*25H* d10*75L 10 25 1 75 10
FW-D10*R1*25H* d10*100L 10 25 1 100 10
FW-D10*R1*40H* d10*150L 10 40 1 150 10
FW-D10*R1.5*25H* d10*75L 10 25 1.5 75 10
FW-D10*R1.5*25H* d10*100L 10 25 1.5 100 10
FW-D10*R2*25H* d10*75L 10 25 2 75 10
FW-D10*R2*25H* d10*100L 10 25 2 100 10
FW-D10*R3*25H* d10*75L 10 25 3 75 10
FW-D12*R0.5*30H* d12*75L 12 30 0.5 75 12
FW-D12*R0.5*30H* d12*100L 12 30 0.5 100 12
FW-D12*R0.5*48H* d12*150L 12 48 0.5 150 12
FW-D12*R1*30H* d12*75L 12 30 1 75 12
FW-D12*R1*30H* d12*100L 12 30 1 100 12
FW-D12*R1*48H* d12*150L 12 48 1 150 12
FW-D12*R1.5*30H* d12*75L 12 30 1.5 75 12
FW-D12*R1.5*30H* d12*100L 12 30 1.5 100 12
FW-D12*R2*30H* d12*75L 12 30 2 75 12
FW-D12*R2*30H* d12*100L 12 30 2 100 12
FW-D12*R3*30H* d12*75L 12 30 3 75 12
FW-D16*R1*36H* d16*100L 16 36 1 100 16
FW-D16*R1.5*36H* d16*100L 16 36 1.5 100 16
FW-D16*R2*36H* d16*100L 16 36 2 100 16
FW-D16*R3*36H* d16*100L 16 36 3 100 16

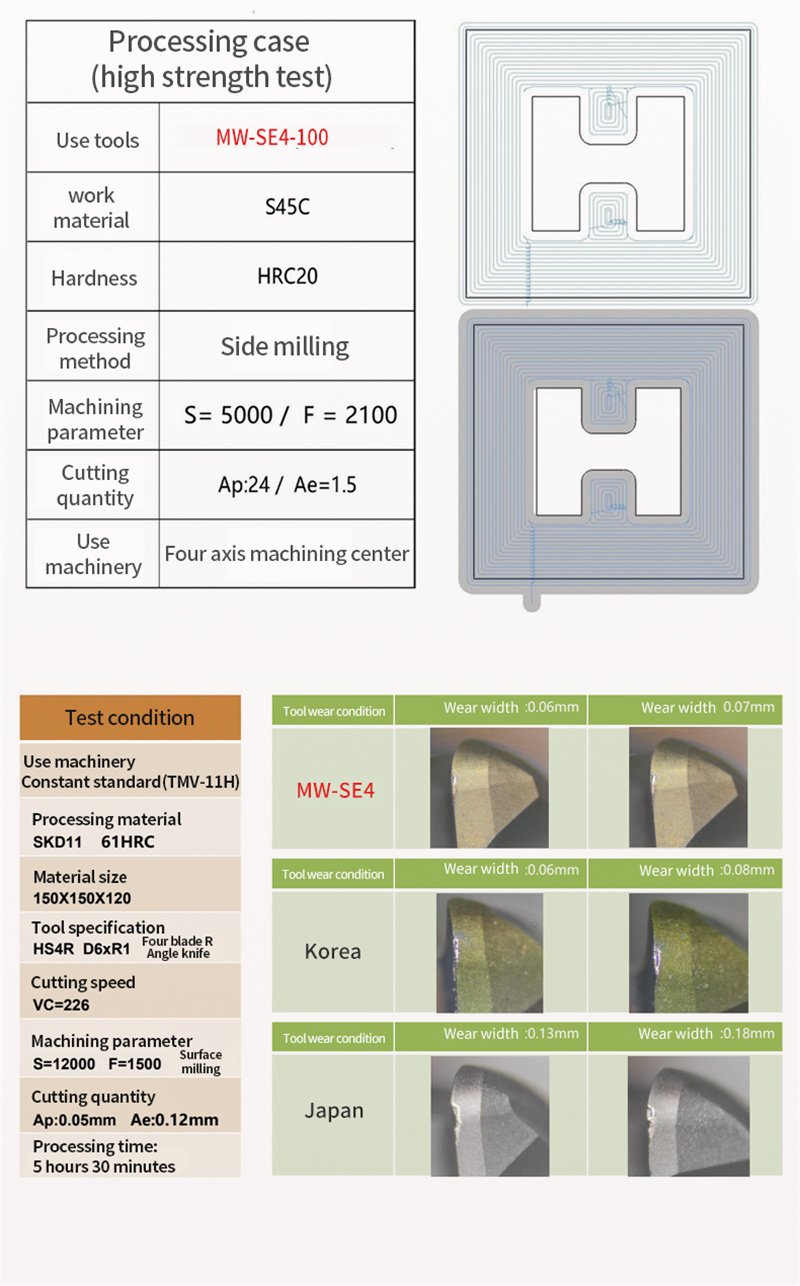

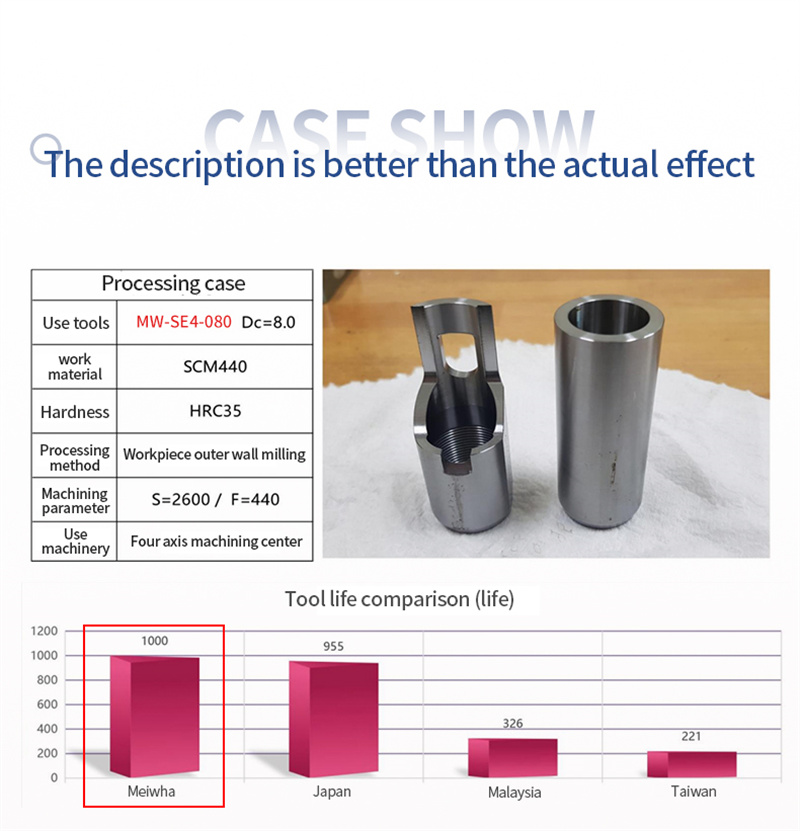

FW Side Milling:

Workpiece material Mild Steel, Carbon Steel, Cast Iron
SS400. S45C, 555C, FC250

(~250HB)

Alloy Steel, Tool Steel
SCM, SNCM, SKD, SKT
(~30HRC)
Hardened Steel, Stainless Steel
SKD, SKT, SUS
(30~40HRC)
Titanium Alloy, Inconel, Heat Resistant Alloy Steel
Cutting Speed
VC
80-120 m/min 70-100 m/min 60-90 m/min 35-70 m/min
outer diameter
(mm)
Speed
(min-1)
Feed
(mm/min)
Speed
(min-1)
Feed
(mm/min)
Speed
(min-1)
Feed
(mm/min)
Speed
(min-1)
Feed
(mm/min)
1 23850 1049 20670 827 15900 509 11130 267
2 11925 1049 10335 827 8745 560 5565 267
3 8480 1018 7950 859 7420 712 4770 382
4 7155 1288 6758 1081 6360 890 4373 455
5 6360 1526 5724 1145 5406 930 4134 562
6 6360 1781 5300 1272 4770 1011 3710 668
8 4770 1717 3975 1272 3578 973 2783 646
10 3816 1679 3180 1208 2862 916 2226 579
12 3180 1526 2650 1166 2385 954 1855 594
16 2385 1240 1988 954 1789 787 1391 557
20 1908 1068 1590 827 1431 687 1113 490
Depth of cut ap≤1.5Dc
ae≤0.3Dc
ap≤1.5Dc
ae≤0.2Dc
ap≤1.5Dc
ae≤0.1Dc

FW Groove Milling:

Workpiece material Mild Steel, Carbon Steel, Cast Iron
SS400. S45C, 555C, FC250

(~250HB)

Alloy Steel, Tool Steel
SCM, SNCM, SKD, SKT
(~30HRC)
Hardened Steel, Stainless Steel
SKD, SKT, SUS
(30~40HRC)
Titanium Alloy, Inconel, Heat Resistant Alloy Steel
Cutting Speed
VC
30-70 m/min 30-60 m/min 25-60 m/min 25-40 m/min
outer diameter
(mm)
Speed
(min-1)
Feed
(mm/min)
Speed
(min-1)
Feed
(mm/min)
Speed
(min-1)
Feed
(mm/min)
Speed
(min-1)
Feed
(mm/min)
1 9540 305 7950 191 7950 191 7950 127
2 4770 305 3975 223 3975 223 3975 159
3 4240 407 4240 373 4240 373 3180 254
4 3975 509 3578 429 3578 429 2385 267
5 3816 611 3816 580 3816 580 2544 326
6 3445 661 3180 572 3180 572 2120 339
8 2783 712 2385 572 2385 572 1590 318
10 2226 712 1908 550 1908 550 1272 331
12 1855 668 1590 509 1590 509 1060 318
16 1391 557 1193 429 1193 429 795 286
20 1113 534 954 382 954 382 636 254
Depth of cut 2≤Dc,ap=0.5Dc
DC>2,ap=1.0Dc
2≤ap≤0.3Dc
Dc>2,ap=0.5Dc
2≤ap≤0.2Dc
Dc>2,ap=0.3Dc
End Milling
Milling Tools
Milling Cutter
Milling Tools
CNC Milling Cutter
Milling Cutter For CNC
