Shrink Fit Machine ST-700
PRODUCT INSTRUCTION

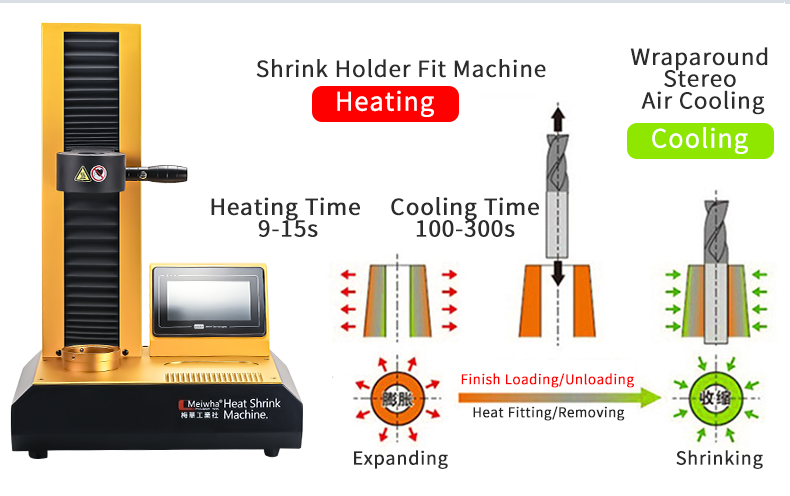

The shrink fit machine is used with the heat shrinktool holder to ensure that the tool holder has a strong and stable clamping force. The heat shrink machine's heating process is electronically controlled to ensuretool holder changing accuracy. The recirculation disk protection protects the cutting tool and tool holder from burns. The special magnetic field effectively reduces the changing time. Heating and cooling are at the same position to reduce the risk of burns when moving the tool. Local heating protects the tool holder. The special magnetic field has higher heating efficiency and can move the heating point to the appropriate position to improve tool change efficiency.
SPECIFICATION
| Voltage | AC110-220V/50Hz |
| Net Weight | 25KG |
| Range | Stainless Steel D3-D32 Alloy Steel D3-D32 |
| Coil Height | 64mm |
| Dimensions | 500*400*750mm |
| Power | 6.5KW |
| Stroke | 10-400mm |
| Coil Diameter | Taper Induction Coil φ56mm |
PREAUTIONS&PREPARATIONS
1.The power supply for this device is single-phase 220V
2.Please use a 4mm² wire and ensure that the ground wire(PE) is properly grounded.
3.Do not start the device without load(with no holder placed).
4.Persons with heart stents implanted or wearing metal items are prohibited from approaching this device.
5.Oil-water separation for the compressed air, ensuring the surface of the electromagnetic coil is clean and fry.
6.Make sure the entire coil is inserted into the socket and lock the nut tight without loosening, when changing the oil.
7.Avoid excessive heating(should not get red-hot).
8.Please read the manual carefully before using, contact us if you have any operation questions.
Product advantages
1.7000W High Power, Spindle model, Quick switch.
2.Electromagnetic induction, Rapid Heating, Intelligent temperature control, One-click start, Stable performance, Complete in specifications.
3.When heating, it is most appropriate to adjust the upper end of the electromagnetic induction coil to be 10-15mm above the cutting rod's surface.
4.Intelligent system, precise temperature control BT/HSK series are universally applicable, Stainless steel, Carbon steel, MST, Haimer Applicable.
5.One unit that can be used by 5 to 10 machining centers.
6.Effectively enhance efficiency and save time and effort.

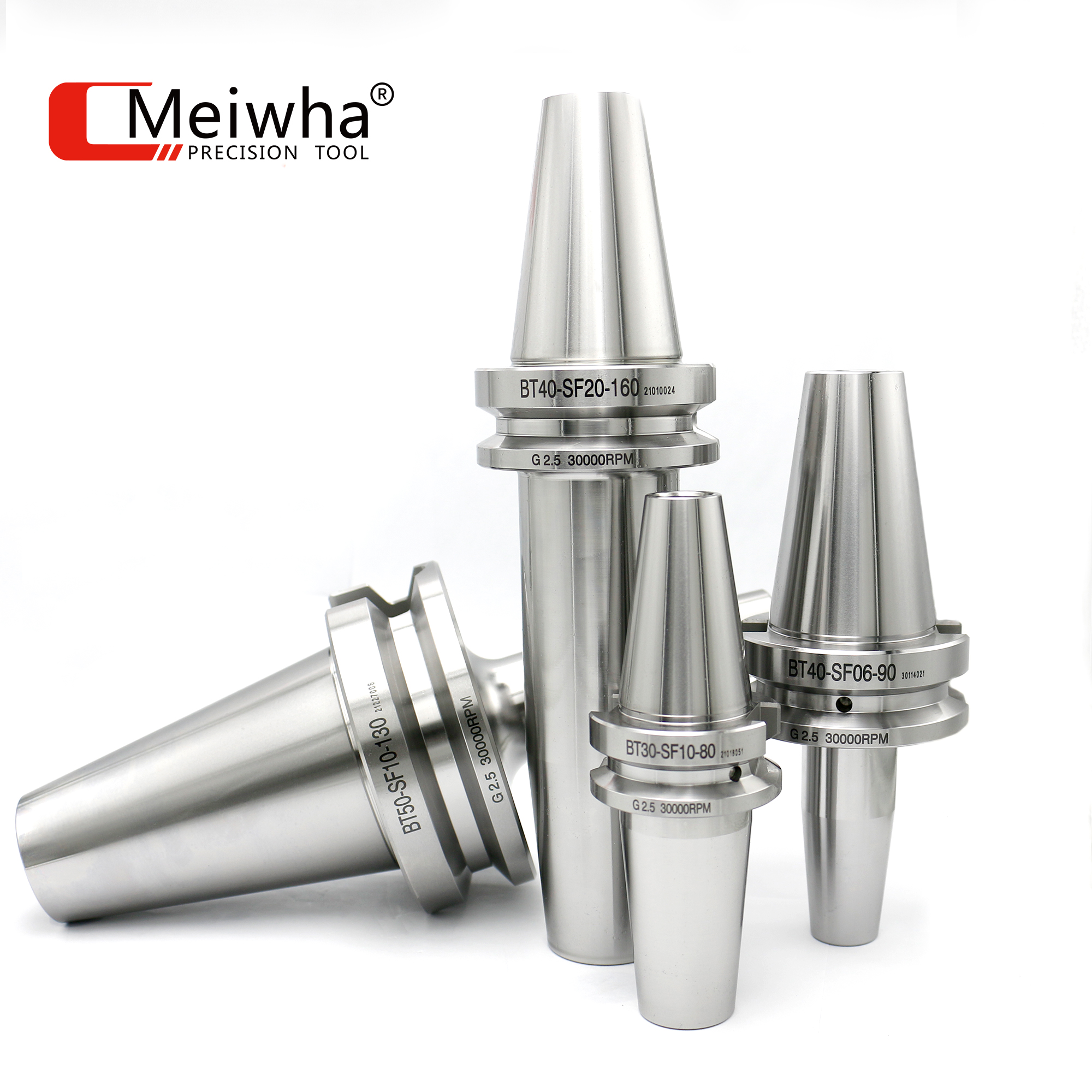

7.The heat shrink tool holder, due to its unique clamping system, can uniformly clamp the tool in a 360° rotation, achieving excellent performance with high precision
and rigidity. It can provide a greater clamping torque and enhance processing efficiency
8.Tool placement groove, The unique groove design prevents the cutting tool from rolling off.

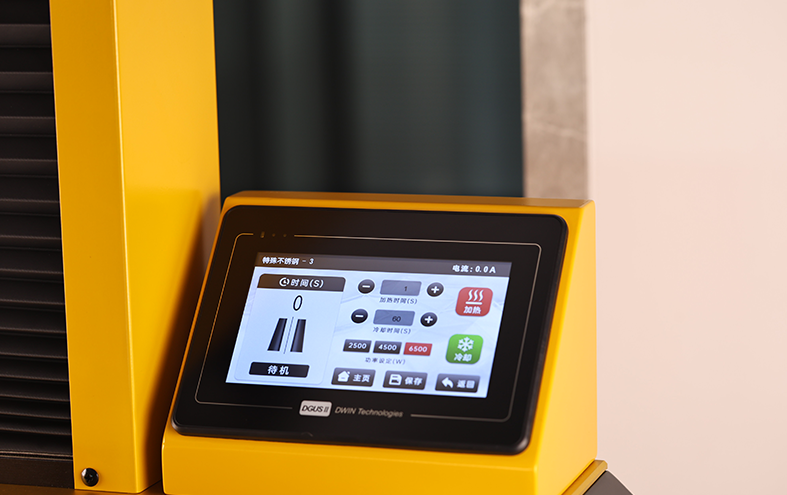

Touchscreen control, one-click start.
ACCESSORIES
| Standard Accessories | ||
| 1 | Holder Lock Seat | Optional Models(1) |
| 2 | Power | 16A |
| Optional Accessories | ||
| 3 | Tool Clamp(D3-D12) | Pay Item |
| 4 | Snap Ring(D3-D12) | Pay Item |
| 5 | Air Filter | Pay Item |
OVERALL STRUCTURE DESIGN INSTRUCTION

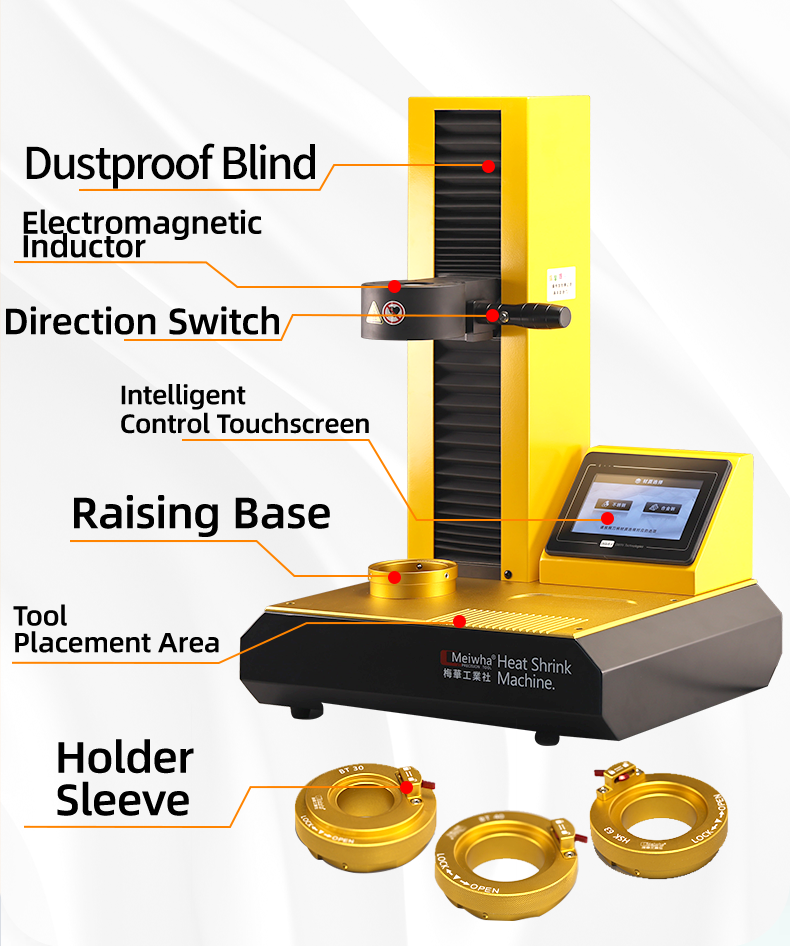

Product Real Shot
