Meiwha DIN Multi-Purpose Coated Tap

Short Description:

Applicable scenarios: Drilling machines, tapping machines, CNC machining centers, automatic lathes, milling machines, etc.

Applicable materials: Stainless steel, cast iron, copper, alloy steel, die steel, A3 steel, and other metals.

Send email to us

Product Detail

Product Tags

leading technology: Utilizing imported high-precision grinding tools, formed through a single integral grinding process, achieving extremely high concentricity, enhancing the rigidity of the strike and reducing the risk of breakage.

Selective materials: Made of imported HSS steel as a whole, it combines excellent wear resistance and hardness, allowing for extensive processing. The value of one piece surpasses that of multiple pieces.

Optimized design: Special heat treatment for increased durability; an optimized handle design for easy clamping and convenient operation; ensuring long-term stability of the equipment.

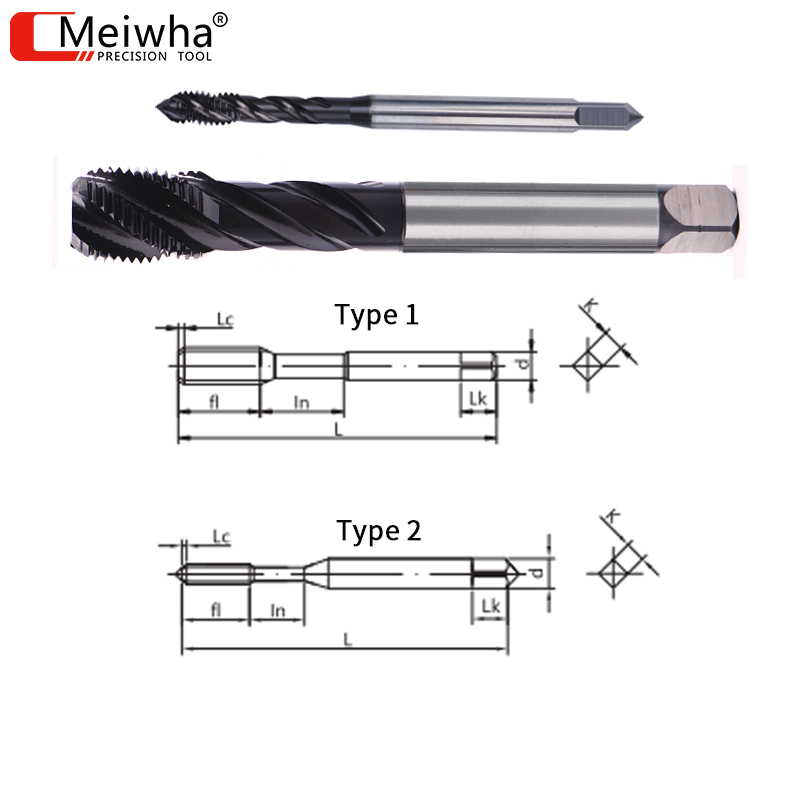

Details of Spiral Tap Parameters

Thread Size	Limit	LC	Type	Dimensions						Flutes	DIN Standard
Thread Size	Limit	LC	Type	L	fl	In	d	K	Lk	Flutes	DIN Standard
M3*0.5	6HX	2.5P	2	56	7	11	3.5	2.7	6	3	DIN371
M4*0.7	6HX	2.5P	2	63	9	12	4.5	3.4	6	3	DIN371
M5*0.8	6HX	2.5P	2	70	10	15	6	4.9	8	3	DIN371
M6*1	6HX	2.5P	2	80	10	20	6	4.9	8	3	DIN371
M7*1	6HX	2.5P	2	80	10	20	7	5.5	8	3	DIN371
M8*1.25	6HX	2.5P	1	90	13	22	8	6.2	9	3	DIN371
M8*1.25	6HX	2.5P	1	90	13	22	8	6.2	9	3	DIN371
M10*1.5	6HX	2.5P	1	100	15	24	10	8	11	3	DIN371
M10*1.25	6HX	2.5P	1	100	15	24	10	8	11	3	DIN371
M10*1	6HX	2.5P	1	100	15	24	10	8	11	3	DIN371
M12*1.75	6HX	2.5P	1	110	17	32	9	7	10	3	DIN376
M12*1.5	6HX	2.5P	1	110	17	32	9	7	10	3	DIN374
M12*1	6HX	2.5P	1	110	17	32	9	7	10	3	DIN374
M14*2	6HX	2.5P	1	110	20	33	11	9	12	4	DIN376
M14*1.5	6HX	2.5P	1	110	20	33	11	9	12	4	DIN374
M14*1.25	6HX	2.5P	1	110	20	33	11	9	12	4	DIN374
M14*1	6HX	2.5P	1	110	20	33	11	9	12	4	DIN374
M16*2	6HX	2.5P	1	110	20	34	12	9	12	4	DIN376
M16*1.5	6HX	2.5P	1	110	20	34	12	9	12	4	DIN374
M16*1.25	6HX	2.5P	1	110	20	34	12	9	12	4	DIN374
M16*1	6HX	2.5P	1	110	20	34	12	9	12	4	DIN374
M18*2.5	6HX	2.5P	1	125	25	36	14	11	14	4	DIN376
M18*2	6HX	2.5P	1	125	25	36	14	11	14	4	DIN374
M18*1.5	6HX	2.5P	1	125	25	36	14	11	14	4	DIN374

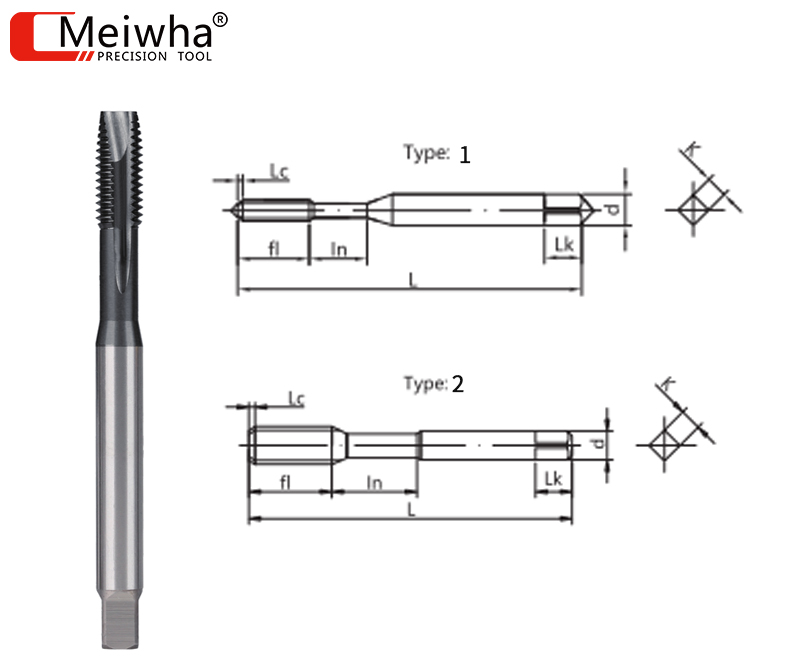

EX-POT Tap Parameters

Thread Size	Limit	LC	Type	Dimensions						Flutes	DIN Standard
Thread Size	Limit	LC	Type	L	fl	In	d	K	Lk	Flutes	DIN Standard
M3*0.5	6HX	5P	1	56	7	11	3.5	2.7	6	3	DIN371
M4*0.7	6HX	5P	1	63	9	12	4.5	3.4	6	3	DIN371
M5*0.8	6HX	5P	1	70	10	15	6	4.9	8	3	DIN371
M6*1.0	6HX	5P	1	80	10	20	6	4.9	8	3	DIN371
M7*1.0	6HX	5P	1	80	10	20	7	5.5	8	3	DIN371
M8*1.0	6HX	5P	2	90	13	22	8	6.2	9	3	DIN371
M8*1.25	6HX	5P	2	90	13	22	8	6.2	9	3	DIN371
M10*1.0	6HX	5P	2	100	15	24	10	8	11	3	DIN371
M10*1.25	6HX	5P	2	100	15	24	10	8	11	3	DIN371
M10*1.5	6HX	5P	2	100	15	24	10	8	11	3	DIN371
M12*1.75	6HX	5P	2	110	17	32	9	7	10	4	DIN376
M12*1.5	6HX	5P	2	110	17	32	9	7	10	4	DIN374
M12*1.25	6HX	5P	2	110	17	32	9	7	10	4	DIN374
M12*1.0	6HX	5P	2	110	17	32	9	7	10	4	DIN374
M14*2.0	6HX	5P	2	110	20	33	11	9	12	4	DIN376
M14*1.5	6HX	5P	2	110	20	33	11	9	12	4	DIN374
M14*1.25	6HX	5P	2	110	20	33	11	9	12	4	DIN374
M14*1.0	6HX	5P	2	110	20	33	11	9	12	4	DIN374
M16*2.0	6HX	5P	2	110	20	34	12	9	12	4	DIN376
M16*1.5	6HX	5P	2	110	20	34	12	9	12	4	DIN374
M16*1.25	6HX	5P	2	110	20	34	12	9	12	4	DIN374
M16*1.0	6HX	5P	2	110	20	34	12	9	12	4	DIN374
M18*2.5	6HX	5P	2	125	25	36	14	11	14	4	DIN374
M18*2.0	6HX	5P	2	125	25	36	14	11	14	4	DIN374
M18*1.5	6HX	5P	2	125	25	36	14	11	14	4	DIN374
M20*2.5	6HX	5P	2	140	25	44	16	12	15	4	DIN376
M20*2.0	6HX	5P	2	140	25	44	16	12	15	4	DIN374
M20*1.5	6HX	5P	2	140	25	44	16	12	15	4	DIN374
